Produktbeskrivning
Intuitive LCD interface provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
High frequency design reduces or eliminates bulky transformers resulting in lighter units for ease of handling.

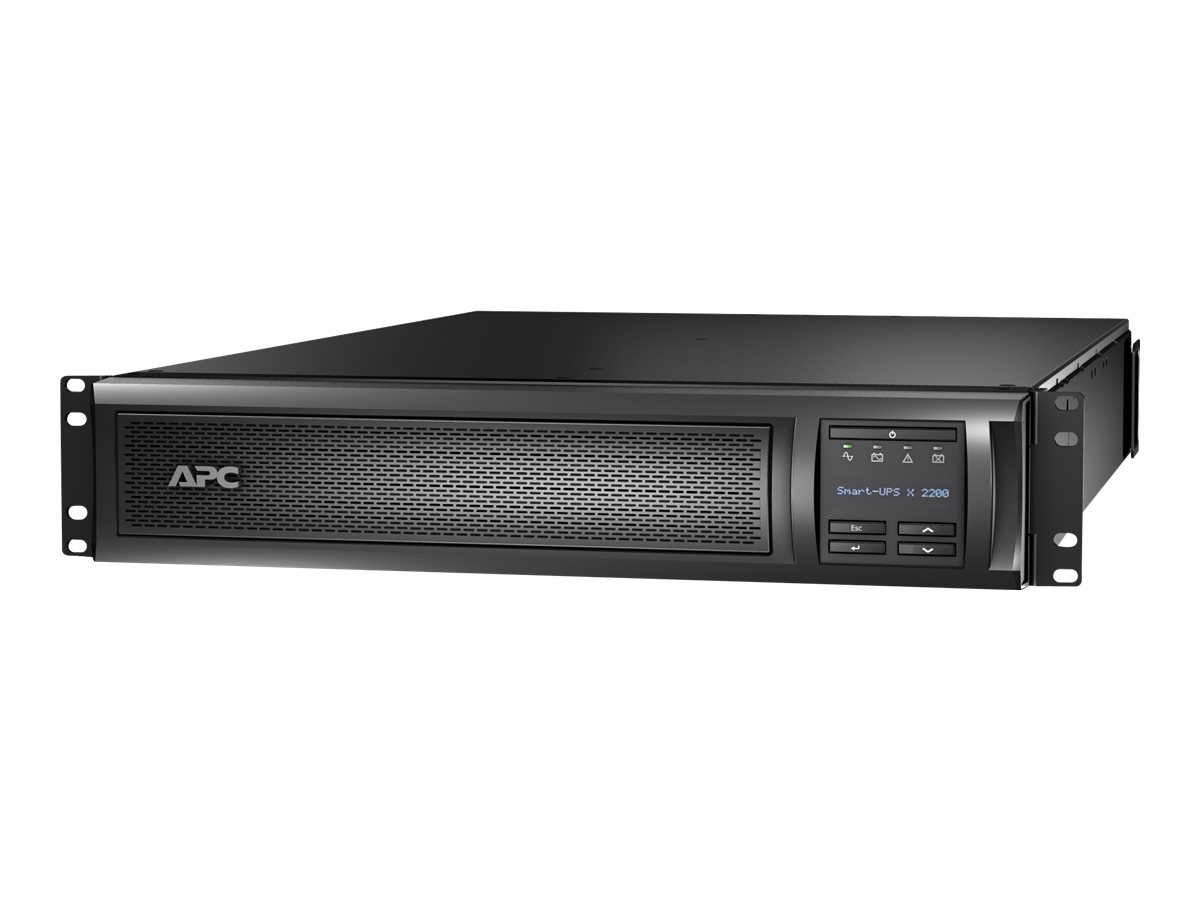

APC Smart-UPS X 2200 Rack/Tower LCD recognizes when external battery packs are attached and automatically adjusts runtime.
Patent-pending operating mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Egenskaper
Intuitive LCD interfaceIt provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
High frequency designIt reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
Auto recognition of external batteriesUPS recognizes when external battery packs are attached and automatically adjusts runtime.
Predictive replace battery dateIt dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green modePatent-pending operating mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meterIt provides actual kilowatt hours of usage for energy conscious users.
Audible alarmsAudible alarms provide notification of changing flywheel conditions
Pure sine wave output on batteryIt simulates utility power to provide the highest degree of compatibility for active PFC servers and sensitive electronics.
Multiple switched outlet groupsMultiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
Wide input voltage rangeWide input voltage range is designed for harsh electrical environments to save battery life.
Battery failure notificationIt provides early-warning fault analysis on batteries enabling timely preventive maintenance
High online efficiencyIt reduces utility costs, generates less heat.
LED indicatorsLED indicators provide easy-to-read status of your utility power conditions, UPS and battery.
Overload protectionIt safeguards unit from damage by automatically turning it off in the event of a short circuit or overload.
Cold-start capableIt provides temporary battery power when the utility power is out.
Hot-swappable batteriesIt ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Automatic self-testPeriodic battery self-test ensures early detection of a battery that needs to be replaced.
Automatic restart of loads after UPS shutdownIt automatically starts up the connected equipment upon the return of utility power.
Adjustable voltage-transfer pointsIt maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable voltage sensitivityIt provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Audible alarmsIt provides notification of changing utility power and UPS conditions.
Serial connectivityIt provides management of the UPS via a serial port.
Scalable runtimeIt allows additional run time to be quickly added as needed.
Intelligent battery managementIt maximizes battery performance, life, and reliability through intelligent, precision charging.
Power conditioningIt protects connected loads from surges, spikes, lightning, and other power disturbances.
Network manageableIt provides remote management of the UPS over the network.
Adjustable voltage sensitivityIt provides the ability to adapt the power conditioner for optimal performance in specific power environments or generator applications.
Teknisk specifikation
Allmänt
Typ av enhet | UPS - rackmonterbar/extern |
Höjd (U-format) | 2U |
Färg | Svart |
Kombinerad med | APC UPS Network Management Card |
Nätdel
UPS-teknik | Interaktiv |
Inspänning | AC 230 V |
Inspänningens område | Växelström 140 - 280 V |
Tillhandahållen frekvens | 47 - 53 / 57 - 63 Hz |
Erforderlig frekvens | 50/60 Hz |
Inmatningsanslutningar | 1 x ström IEC 60320 C20 |
Kontaktdetaljer för uteffekt | 8 x power IEC 60320 C13 1 x ström IEC 60320 C19 |
Utspänning | AC 230 V 47 - 53 / 57 - 63 Hz |
Effektkapacitet | 1980 Watt / 2200 VA |
Utvågform | Sinusvåg |
Spänningsavledning | Ja |
Energivärdering | 645 joule |
Kretsskydd | Strömbrytare |
Effektivitet | 98.1% |
Batteri
Antal | 1 |
Teknik | Bly-syra |
Runtime (upp till) | 9.8 min vid full laddning 25.3 min vid halv maskin |
Laddningstid | 3 timmar |
Nätverk
Gränssnitt för fjärradministration | Ethernet 10/100, RS-232, USB |
Protokoll för administration på distans | SNMP |
Expansion/Anslutning
Gränssnitt | 1 x USB 1 x RS-232 1 x EPO (emergency power off) |
Expansionskortplatser | 1 (totalt)/ 0 (ledig) x SmartSlot |
Diverse
Medföljande kablar | Seriell kabel USB-kabel Strömkabel 1.83 m |
Rackmonteringssats | Inkluderat |
Egenskaper | Hörbart larm, LCD-bildskärm, Automatisk spänningsreglering (AVR), överbelastningsskydd, kallstartfunktion |
Standarder som följs | CSA, C-Tick, GOST, UL 1449, UL 1778, VDE, IEC 60950, EN 50091-2, IRAM, RoHS, EN 50091-1, FCC Part 15 A, REACH |
Programvara / Systemkrav
Medföljande programvara | APC PowerChute Business Edition |
Tillverkarens garanti
Service och support | Begränsad garanti - 3 år Begränsad garanti - batterier - 2 år |
Miljöparametrar
Min temperatur vid drift | 0 °C |
Max temperatur vid drift | 40 °C |
Luftfuktighet vid drift | 0 - 95% |
Ljudnivå | 55 dBA |
Mått och vikt
Bredd | 43.2 cm |
Djup | 66.7 cm |
Höjd | 8.5 cm |
Vikt | 37.24 kg |
Mått och vikt (brutto)
Emballagets bredd | 59.6 cm |
Emballagets djup | 86.9 cm |
Emballagets höjd | 24.3 cm |
Emballagets vikt | 45.26 kg |
Kompatibilitetsinformation
Designat för | P/N: AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, AR3357X674, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R |
