Produktbeskrivning

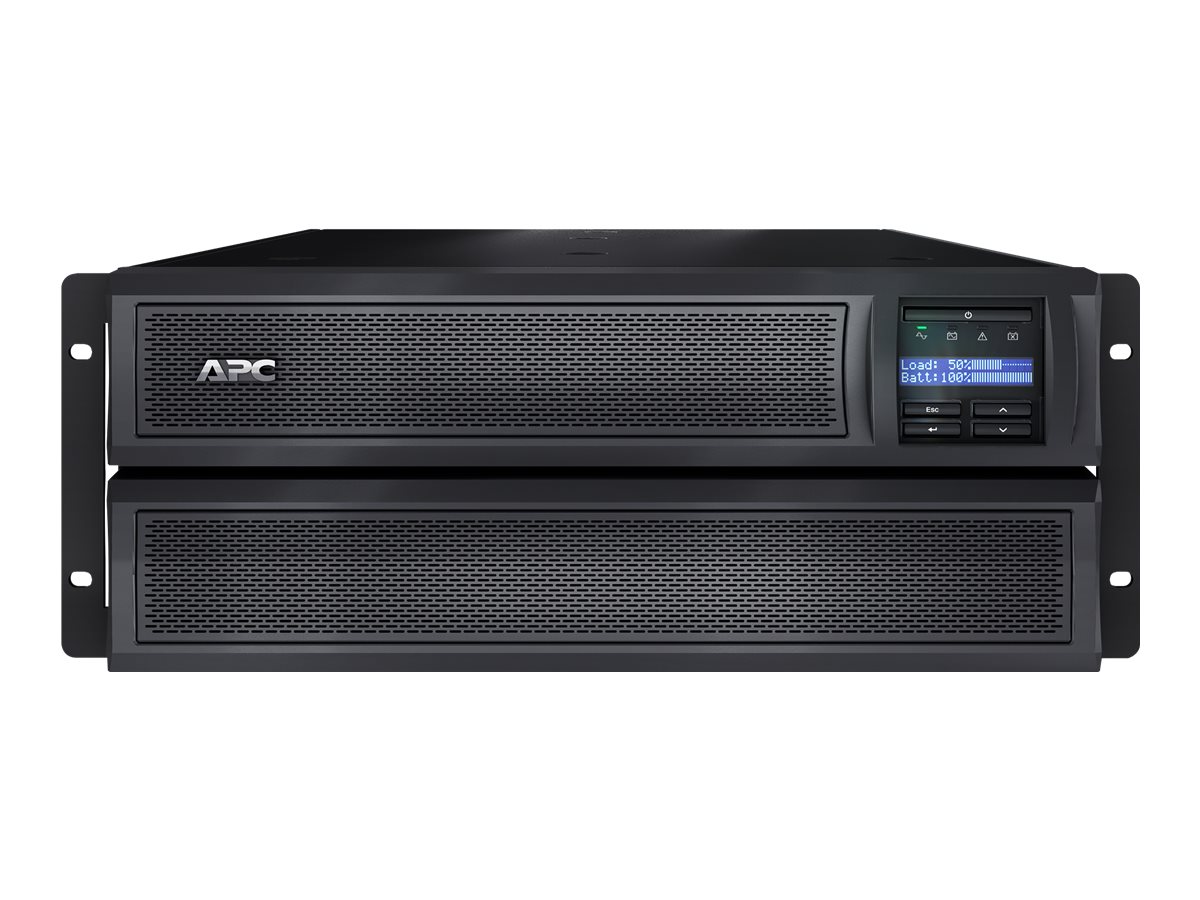

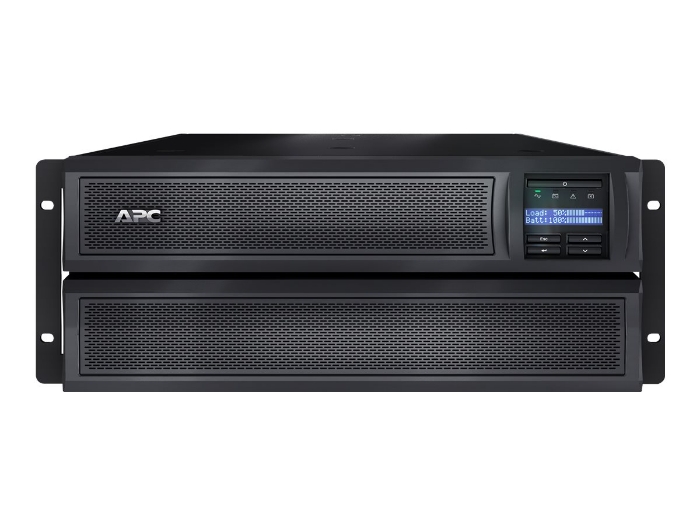

APC award-winning Smart-UPS is the most popular UPS in the world for servers, storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery.



Egenskaper

Intelligent battery management
It maximizes battery performance, life, and reliability through intelligent, precision charging.

Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.

Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Network manageable
It provides remote power management of the UPS over the network.

Audible alarms
Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.

LED status indicators
Quickly understand unit and power status with visual indicators.

Disconnected battery notification
Warns when a battery is not available to provide backup power.

User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).

Hot-swappable batteries
It ensures clean, uninterrupted power to protected equipment while batteries are being replaced.

Adjustable voltage-transfer points
It maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Adjustable voltage sensitivity
It provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Safety-agency approved
It ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.



Teknisk specifikation

Typ av enhet	UPS - rackmonterbar/extern
Höjd (U-format)	4U
Färg	Svart

UPS-teknik	Interaktiv
Inspänning	AC 230 V
Inspänningens område	Växelström 140 - 280 V
Tillhandahållen frekvens	47 - 63 Hz
Erforderlig frekvens	47 - 63 Hz
Inmatningsanslutningar	1 x ström IEC 60320 C20
Kontaktdetaljer för uteffekt	8 x power IEC 60320 C13 2 x ström IEC 60320 C19
Utspänning	AC 230 V 47 - 63 Hz
Effektkapacitet	2700 Watt / 3000 VA
Utvågform	Sinusvåg
Spänningsavledning	Ja
Energivärdering	645 joule
Kretsskydd	Strömbrytare
Effektivitet	98.5%

Antal	1
Teknik	Bly-syra
Runtime (upp till)	6.3 min vid full laddning 15.7 min vid halv maskin
Laddningstid	3 timmar

Gränssnitt för fjärradministration	RS-232, USB

Gränssnitt	1 x USB 1 x RS-232 1 x EPO (emergency power off)
Expansionskortplatser	1 (totalt)/ 1 (ledig) x SmartSlot

Medföljande kablar	Seriell kabel USB-kabel Strömkabel 1.83 m
Rackmonteringssats	Inkluderat
Egenskaper	Hörbart larm, LCD-bildskärm, överbelastningsskydd
Standarder som följs	CSA, C-Tick, GOST, UL 1449, UL 1778, VDE, IEC 60950, EN 50091-2, IRAM, RoHS, EN 50091-1, FCC Part 15 A, REACH

Medföljande programvara	APC PowerChute Business Edition

Service och support	Begränsad garanti - 3 år Begränsad garanti - batterier - 2 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	0 - 95%
Ljudnivå	55 dBA

Bredd	17.8 cm
Djup	48.3 cm
Höjd	43.2 cm
Vikt	38.64 kg

Emballagets bredd	58.6 cm
Emballagets djup	63.3 cm
Emballagets höjd	33 cm
Emballagets vikt	47.73 kg

Designat för

P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC2513, ACF001, ACF002, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR202, AR203A, AR204A, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3810, AR3812, AR3814, AR4000MV, AR4000MVX429, AR4000MVX432, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432, AR7007, AR7050, AR7057, AR8135BLK, NBWL0356A, SMX2000LVNC, SMX2000LVUS, SRT1500RMXLA-NC, SU2200R3X167
