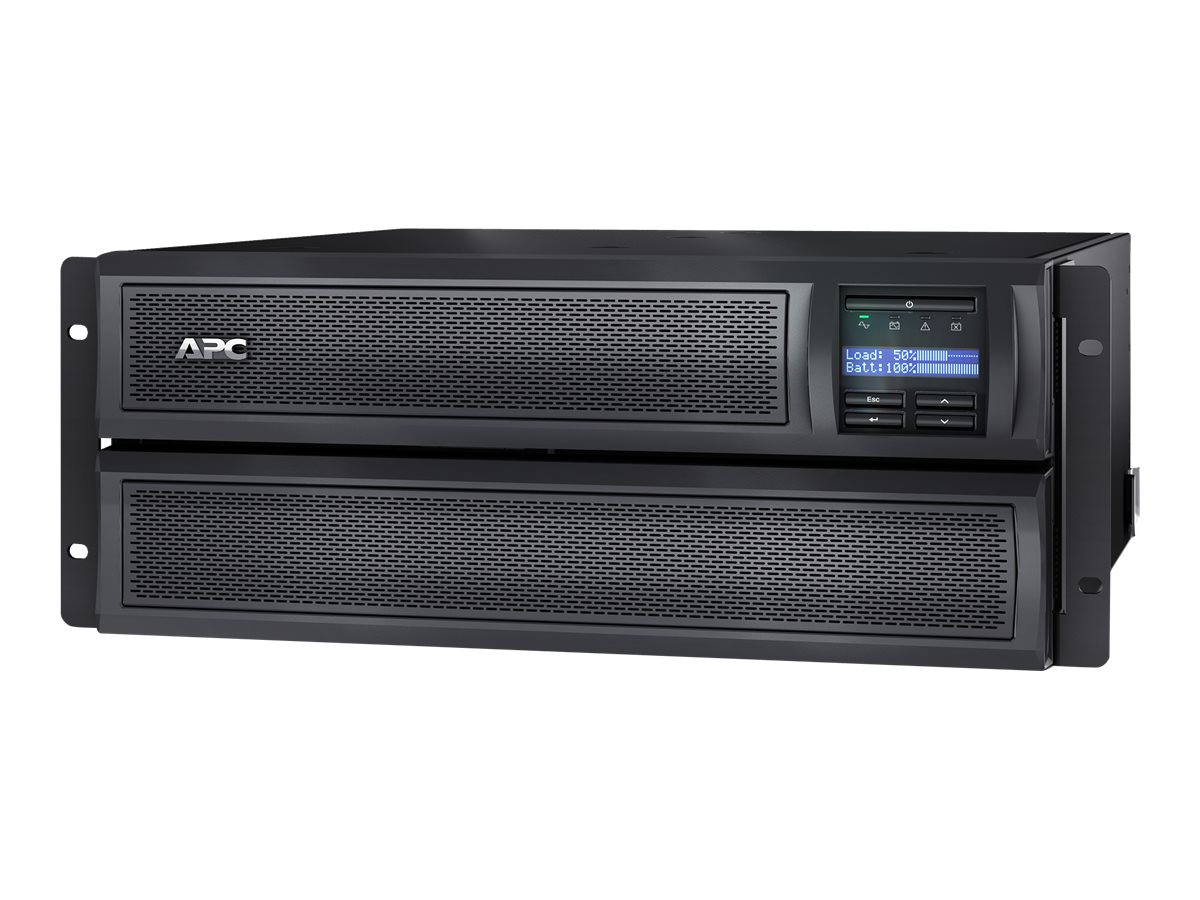

Produktbeskrivning

Intelligent and efficient network power protection. Ideal UPS for servers, point of sale, routers, switches, hubs and other network devices.



Egenskaper

● Intelligent battery management - maximizes battery performance, life, and reliability through intelligent, precision charging
● Power conditioning - protects connected loads from surges, spikes, lightning, and other power disturbances
● Temperature-compensated battery charging - prolongs battery life by regulating the charge voltage according to battery temperature
● Automatic restart of loads after UPS shutdown - automatically starts up the connected equipment upon the return of utility power
● Automatic self-test - periodic battery self-test ensures early detection of a battery that needs to be replaced
● Disconnected battery notification - warns when a battery is not available to provide backup power
● Network manageable - provides remote power management of the UPS over the network
● Audible alarms - actively let you know if the unit is on battery, if the battery is low or if there is an overload condition
● LED status indicators - quickly understand unit and power status with visual indicators
● Serial connectivity - provides management of the UPS via a serial port
● User-replaceable batteries - increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
● Hot-swappable batteries - ensures clean, uninterrupted power to protected equipment while batteries are being replaced
● Predictive failure notification - provides early-warning fault analysis ensuring proactive component replacement
● Resettable circuit breakers - enables a quick recovery from overload events
● Battery failure notification - provides early-warning fault analysis on batteries enabling timely preventive maintenance
● Adjustable voltage-transfer points - maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation
● Adjustable voltage sensitivity - provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications



Teknisk specifikation

Typ av enhet	UPS - rackmonterbar/extern
Höjd (U-format)	4U
Färg	Svart

UPS-teknik	Interaktiv
Inspänning	AC 208 V
Inspänningens område	AC 141 - 255 / 160 - 280 V
Tillhandahållen frekvens	50/60 Hz
Erforderlig frekvens	50/60 Hz
Inmatningsanslutningar	Ström IEC 60320 C20, power CEE 7/7, ström BS 1363A
Kontaktdetaljer för uteffekt	4 x power IEC 60320 C13 2 x ström IEC 60320 C19 2 x ström, NEMA L6-20
Utspänning	AC 208/220/230/240 V ± 5% - 50/60 Hz
Effektkapacitet	2700 Watt / 3000 VA
Utvågform	Sinusvåg
Spänningsavledning	Ja
Energivärdering	645 joule
Kretsskydd	Strömbrytare
Effektivitet	98.2%

Teknik	Bly-syra
Runtime (upp till)	6 min vid full laddning 18 min vid halv maskin
Laddningstid	3 timmar

Gränssnitt för fjärradministration	RS-232, USB

Gränssnitt	1 x EPO (emergency power off) 1 x hantering (RS-232) - RJ-45 1 x hantering (USB) - 4-stifts USB typ B
Expansionskortplatser	1 (totalt)/ 1 (ledig) x SmartSlot

Medföljande kablar	Seriell kabel - extern USB-kabel - extern Strömkabel 1.83 m
Rackmonteringssats	Inkluderat
Egenskaper	Hörbart larm, nödavstängning, LCD-bildskärm, Automatisk spänningsreglering (AVR), LED-indikatorer, brusfiltrering, automatiskt självtest, prediktiv felnotifiering, hotswap-batterier
Standarder som följs	CSA, C-Tick, GOST, EN 60950, UL 1449, UL 1778, VDE, EN 50091-2, IRAM, RoHS, EN 50091-1, FCC Part 15 A, REACH

Medföljande programvara	Drivrutiner och hjälpprogram

Service och support	Begränsad garanti - 3 år Begränsad garanti - batterier - 2 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	0 - 95%
Ljudnivå	55 dBA

Bredd	17.8 cm
Djup	48.3 cm
Höjd	43.2 cm
Vikt	38.64 kg

Emballagets bredd	58.6 cm
Emballagets djup	63.3 cm
Emballagets höjd	33 cm
Emballagets vikt	47.73 kg
