Produktbeskrivning

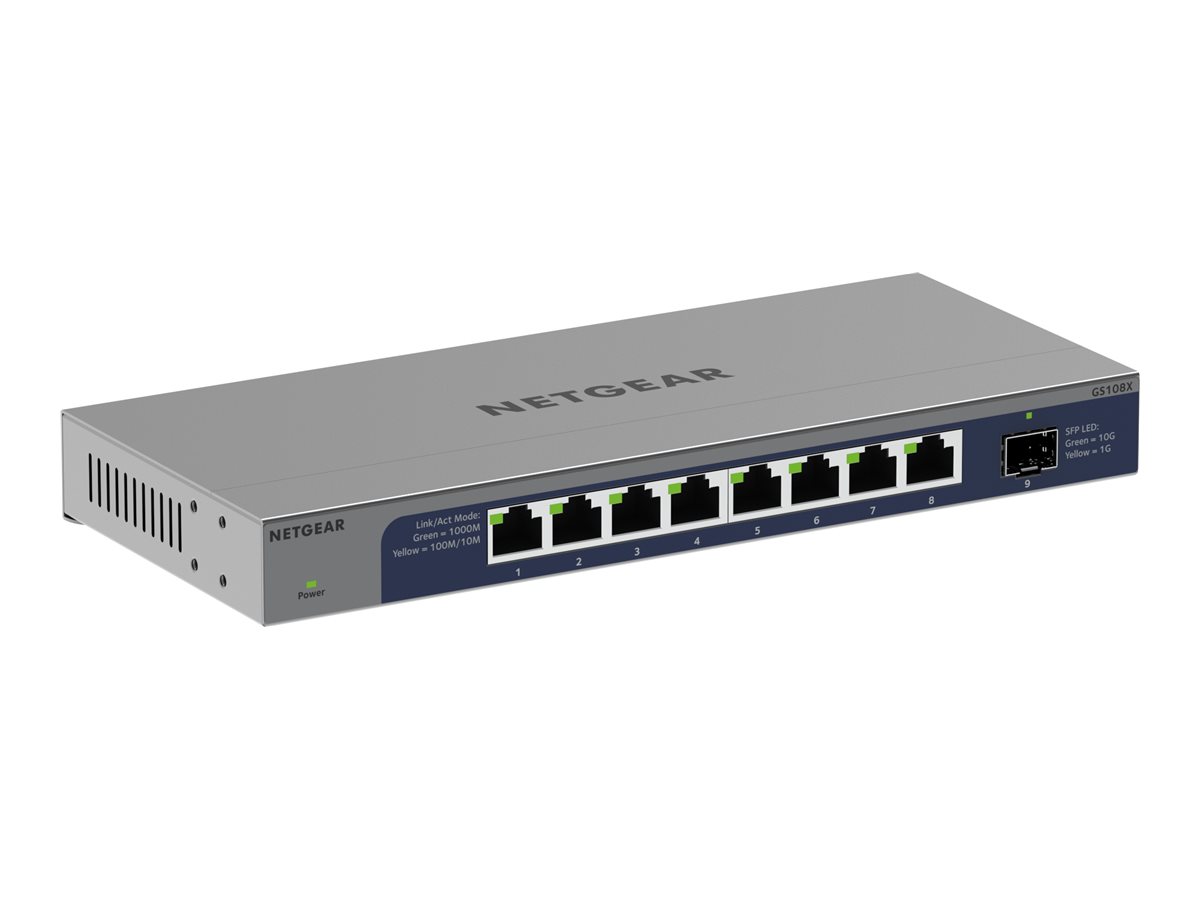

The GS108X comes with 8 Gigabit Ethernet ports and 10 Gigabit SFP+ uplink port. Gigabit unmanaged switches help businesses cost-effectively expand their network to Gigabit speeds and higher port counts. This GS108X is energy-efficient, built to last, and rigorously tested to provide the reliability businesses need. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks. The GS108X offers flexible mounting options - they can be mounted on a wall or can be used as a desktop switch. Moreover, the compact and fanless design makes the GS108X ideal for any home or business environment.



Egenskaper

Plug-and-Play
Simple setup with no software to install or configuration needed and zero maintenance.

10 Gigabit uplink
No network bottlenecks thanks to the 10 Gigabit SFP+ uplink.

Small form factor
Compact design to fit in any small cabinet or wiring panel.

High quality
Durable metal case and long product life.

Longer-distance connections
The 10G SFP+ uplink offers the capacity to maintain high-speed connections over 100 meters (328 feet).



Teknisk specifikation

Typ av enhet	Switch - 8 portar - ohanterad
Modell	Skrivbordsmodell, väggmonterbar
Undertyp	Gigabit Ethernet
Portar	8 x 10/100/1000 + 1 x 10 Gb Ethernet SFP+ (upplänk)
Prestanda	Bandbredd: 36 Gbps Download forwarding rate (64-byte packet size): 41,664 Mfps Storlek på paketbuffert: 768 KB
Kapacitet	Prioriteringsköer: 8
MAC Address Table Size	16K poster
Jumbo Frame-support	9728 byte
Funktioner	WRR-köer (Weighted Round Robin), Quality of Service (QoS), Jumbo Frames-support, fläktlös, Class of Service (CoS), metallhölje, ohanterad, EEE
Standarder som följs	IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
Statusindikatorer	Portstatus, strömförsörjning, länk/aktivitet/hastighet

Gränssnitt	8 x 1000Base-T RJ-45 1 x 10 Gigabit Ethernet / 10 Gigabit Ethernet SFP+ SFP+ upplänk

Nätdel	Extern strömadapter
Energiförbrukning vid drift	5.7 Watt

Inkluderade tillbehör	Gummifötter, väggmonteringssats, strömadapter
Rackmonteringssats	Inkluderat
MTBF (genomsnittstid mellan fel)	4,802,599 timmar
Standarder som följs	VCCI, BSMI, ICES-003, FCC Part 15, KC, RCM, UKCA
Lokalisering	Europa

Bredd	23.5 cm
Djup	10.8 cm
Höjd	2.7 cm
Vikt	575 g

Service och support	Begränsad garanti - livstid Tekniskt stöd - 90 dagar

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	0 - 90% RH (non-condensing)
