Produktbeskrivning

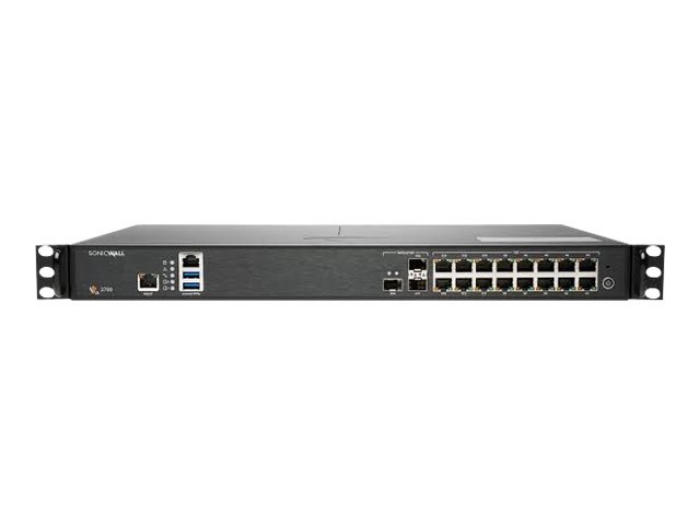

The SonicWall Network Security Appliance (NSA) series combines the patented SonicWall Reassembly Free Deep Packet Inspection (RFDPI) engine with a powerful and massively scalable multi-core architecture to deliver intrusion prevention, gateway anti-virus, gateway anti-spyware, and application intelligence and control for businesses of all sizes. By integrating automated and dynamic security capabilities into a single platform, the NSA series provides comprehensive next-generation firewall protection without compromising performance.

Along with superior power efficiency, SonicWall NSA series appliances lower the total cost of ownership by reducing complexity and the time necessary to configure, deploy and maintain security solutions. An intuitive GUI and powerful set-up wizards make it easy to quickly set up and fine-tune network policies, application rules, VPN connections and more.



Egenskaper

Next-generation firewall security
A suite of tools, including intrusion prevention, gateway anti-virus, and anti-spyware plus application intelligence and control, offer granular control through application blocking, bandwidth management and more. Additional security and connectivity capabilities such as IPSec VPN, SSL VPN, content filtering, anti-spam and enforced client anti-virus make the NSA series a comprehensive and powerful all-in-one security solution.

Multi-core architecture
Single-core and ASIC processors may have been sufficient for the design of traditional stateful firewalls. But NSA series appliances go above and beyond, with a multi-core design to help ensure that the deep packet inspection provided by the SonicWall Next-Generation Firewall can scale with your expanding organization. As many as eight cores spread the network load evenly and protect against extreme performance degradation often present in other technologies when exposed to heavy traffic conditions and malicious content.

Deep packet inspection technology
Proprietary SonicWall RFDPI technology offers extremely high scalability and performance suitable for even the most demanding environments. RFDPI scans traffic on every port, on every protocol and in any direction to provide ultimate visibility and control. The unique design of the RFDPI engine allows it to inspect every byte of a connection - and up to hundreds of thousands of simultaneous connections - in order to categorize application traffic and protect against internal and external threats at both the application and network layer.

Lowered complexity and cost
Along with superior power efficiency, SonicWall NSA series appliances lower the total cost of ownership by reducing complexity and the time necessary to configure, deploy and maintain security solutions. An intuitive GUI and powerful set-up wizards make it easy to quickly set up and fine-tune network policies, application rules, VPN connections and more.



Teknisk specifikation

Typ av enhet	Säkerhetsfunktion
Höjd (U-format)	1U
Bredd	43 cm
Djup	32.5 cm
Höjd	4.5 cm
Vikt	4 kg

Hårddisk	SSD 64 GB x 1 - M.2

Formfaktor	Kan monteras i rack
Anslutningsteknik	Kabelansluten
Datalänkprotokoll	Gigabit Ethernet, 10 Gigabit Ethernet
Nätverks/transportprotokoll	TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP, HTTP, HTTPs
Nätverksprotokoll	OSPF, RIP-1, RIP-2, BGP, statisk IP-routing, PBR (policy-based routing)
Protokoll för administration på distans	SNMP 2, SNMP 3, SSH, CLI
Prestanda	Brandväggens genomströmningshastighet: 5,2 Gbps Hotskyddsgenomströmning: 3 Gbps Applikationskapacitet: 3,6 Gbps IPS-genomströmning: 3,4 Gbps Genomströmning av skadlig programvara: 2,9 Gbps TLS/SSL-inspektion och genomströmningsdekryptering: 800 Mbit/s VPN-kapacitet (IPSec): 2,1 Gbps Anslutningshastighet: 21.500 anslutningar per sekund
Kapacitet	DPI-anslutningar: 500000 Maximalt antal åtkomstpunkter: 32 VPN-tunnlar (site-to-site): 250 SPI-anslutningar: 1500000 Virtuella gränssnitt (VLAN): 256 DPI SSL-anslutningar: 125000 IPSec VPN-klienter: 50 SSL VPN-licenser: 2 Autentiserade användare (intern databas): 250
Funktioner	NAT-stöd, VPN-stöd, PAT-stöd, belastningsutjämning, Stateful Packet Inspection (SPI), skydd mot DoS-attacker, portspegling, stöd för IPv6, intrångsförebyggande system (IPS), URL-filtrering, skydd mot DDos-attacker, Stateful switchover (SSO), skydd mot skadlig programvara, Quality of Service (QoS), Dead Peer Detection (DPD), Jumbo Frames-support, DHCP-server, DNS proxy, bandbreddskontroll, IPv4-support, stöd för CAC-läsare (Common Access Card), webbhotskydd, DHCP-relä, NetFlow, IPFIX, antivirusskydd, Reassembly-Free Deep Packet Inspection (RFDPI), Zero-touch provisioning (ZTP), DSCP Marking, VLAN trunking, support för SD-WAN, Real-Time Deep Memory Inspection (RTDMI)
Krypteringsalgoritm	DES, Tredubbel DES, MD5, SHA-1, 128-bitars AES, 192-bitars AES, 256 bitars AES, TLS 1.3
Verifieringsmetod	RADIUS, LDAP, databas för interna användare, XAUTH-autentisering

VoIP-protokoll	SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5
Funktioner för IP-telefoni	Stöd för VoIP gatekeeper, administrering av utgående bandbredd för VoIP

Expansionskortplatser	1 (totalt)/ 1 (ledig) x expansionskortplats
Gränssnitt	16 x 1000Base-T - RJ-45 2 x USB 3.0 - Type A 1 x konsol - RJ-45 1 x administration - RJ-45 3 x 10GBase-X - SFP+

Standarder som följs	FCC klass A-certifierad, UL, TUV GS, C-Tick, BSMI, ICSA Firewall-certifierad, cUL, ICSA Antivirus, CB, FIPS 140-2 nivå 2, EMC, RoHS, WEEE, ANATEL, REACH, KCC Class A, VPNC-certifierad, LVD, VCCI Class A, MSIP Class A, UC APL, Mexico CoC, Common Criteria
Typ av prissättning	SonicWall säkerhetsuppgradering, plusprogram (2 år)

Nätdel	Intern strömförsörjning
Redundant ström	Tillval
Nätspänning	AC 120/230 V (50/60 Hz)
Energiförbrukning vid drift	21.5 Watt
Effekt	60 Watt

Medföljande OS	SonicOS 7.0
Medföljande programvara	SonicWall Advanced Protection Service Suite (2 år)

Emballagets vikt	6.4 kg

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	5 - 95 % (icke-kondenserande)
