Produktbeskrivning

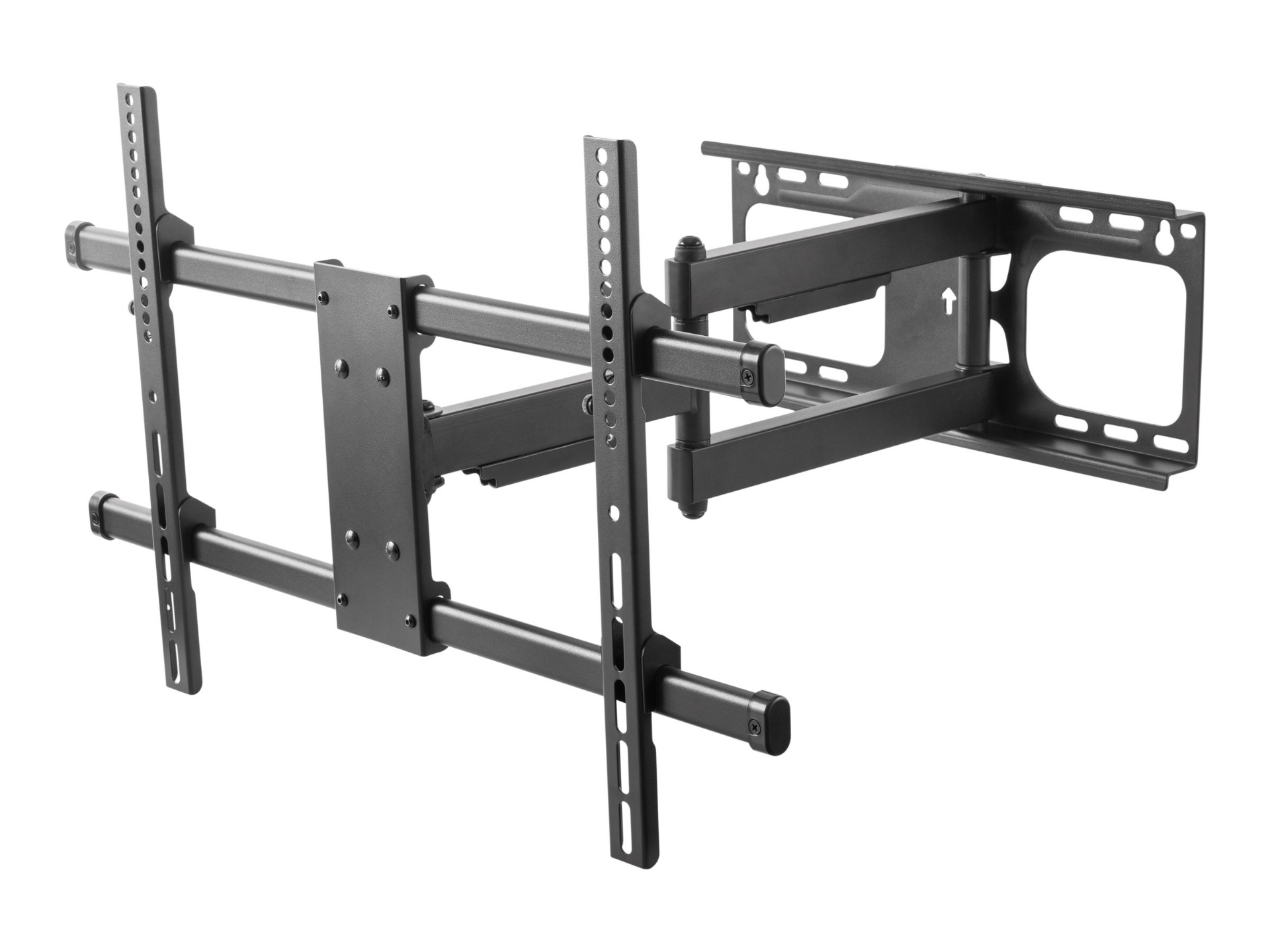

Vision's Vision Flat-Panel Mount - Wall Arm range is tough and flexible. The VFM-WA6X4B fits any flat-panel LCD or LED screen which has rear mounting holes up to 600 x 400 mm apart.
Egenskaper
Up to 70"Most larger displays use VESA arrangement of mounting points up to 600 x 400 mm apart, so the WA6X4 fits the majority of displays up to this size.
Safe working loadThe strong mechanical design has a "safe working load" of 30 kg (66 lbs).
Adjust levelDidn't fix the wall plate perfectly plumb? No problem! 6° of rotation allow you to get the display level easily once the display is in place.
Tilt and swivel-5-15° tilt and 90° swivel. Use this mount to fix a display in a corner up high in a waiting room, or fix displays around an office or in meeting rooms.
VESAThe VESA system defines how far apart the mounting holes are on the back of your flat-panel. Holes 600 x 400 mm apart are known as VESA 600x400 and will suit this mount. This mount also covers all smaller VESA sizes down to 200 x 200.
Cable managementIntegrated sleeves allow cables to be routed under the arm.
SecureOnce the display assembly latches in place two thumbscrews can be added to the latch to lock it in place.
Teknisk specifikation
Allmänt
Bredd | 68.5 cm |
Höjd | 43 cm |
Justerbart djup | 6.9-61.5 cm |
Vikt | 7.2 kg |
Material | Kallvalsat stål |
Färg | Svart |
Förpackningens innehåll | 4 x M5x14-skruvar, 4 x M6x14-skruvar, 4 x M6x30-skruvar, 4 x M8x30-skruvar, brickor, 8 x M8x50-skruvar |
AV-komponenter
Typ | Monteringssats |
Monteringskomponenter | Väggplatta, väggfäste |
Design | Dubbelledad |
Rekommenderad användning | Platt panel |
VESA-infästningsgränssnitt | 200 x 200 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm, 200 x 100 mm, 300 x 300 mm |
Kabelhantering | Inbyggd kabelhantering |
Rekommenderad TV-storlek | 42"-70" |
Lutning | -5° till 15° |
Svängtapp | 90° |
Justeringar | Lutning, rotation |
Maxlast | 30 kg |
Mått och vikt (komponenter)
Dimensioner | Väggfäste - bredd: 47.6 cm höjd: 21.4 cm |
Emballagets mått (BxDxH) / vikt | 72 cm x 28.8 cm x 7.3 cm / 7.7 kg |
Tillverkarens garanti
Service och support | Begränsad garanti - livstid |
