Produktbeskrivning

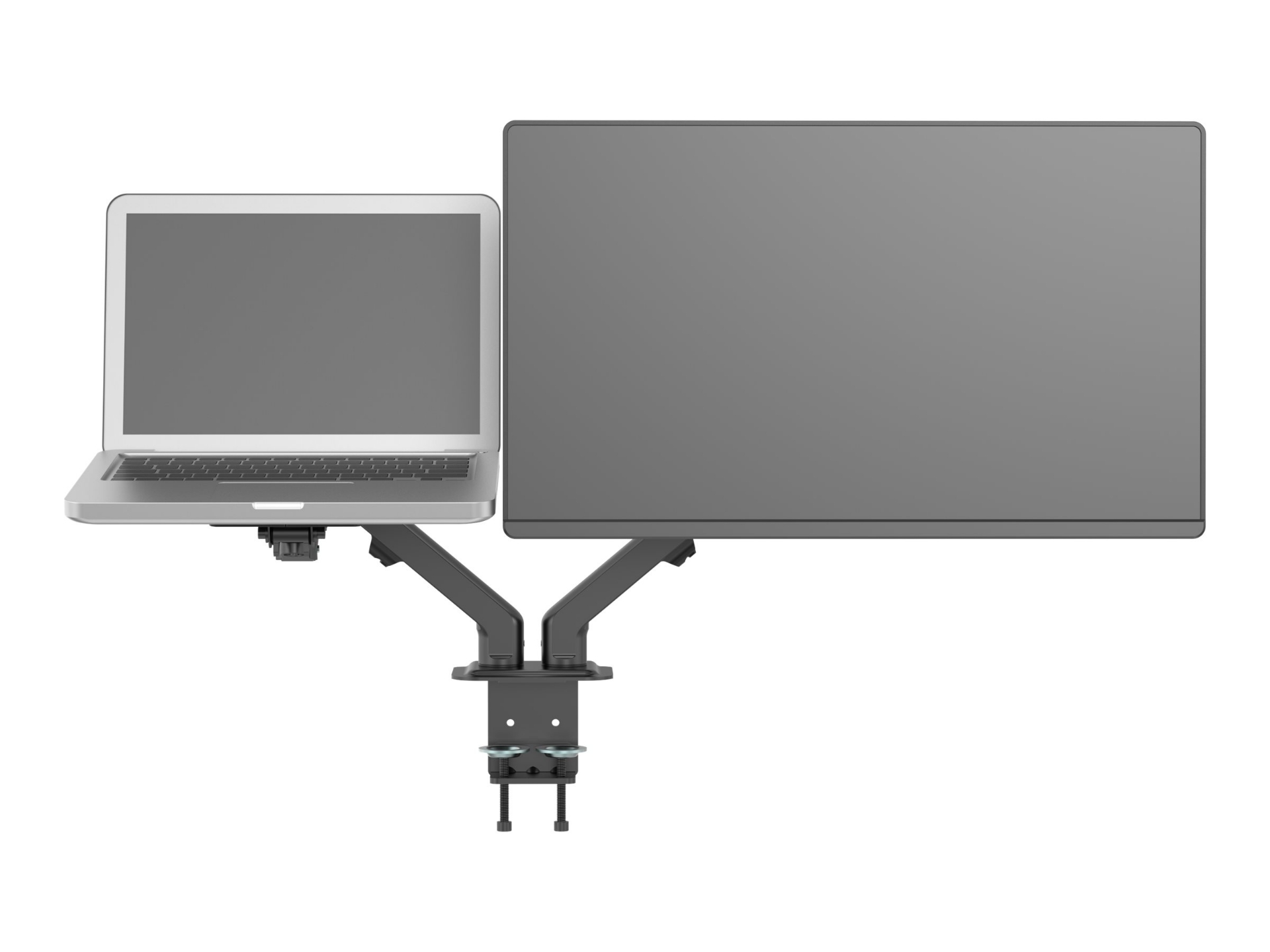

Vision's VFM-DAD/4 Dual Desk Arm ensure any workspace can enjoy both a clear-desk aesthetic and ergonomic working conditions without compromise. It raises the monitors off the desk surface, or one arm can convert to a laptop or tablet shelf supporting clutter-free working and smaller desk areas.
Each user is able to easily adjust the monitor position to suit their needs, thanks to its innovative weight-compensating spring and tilt-rotate-swivel and height adjustment - ensuring all users benefit from a more comfortable and better working posture.
As well as high-end features the arm is manufactured from premium materials, but through careful design Vision has been able to keep it very affordable.
The desk arm fits any 17- to 27-inch flat-panel monitor with 100x100 rear mounting holes and a weight no greater than 7kg (15.4lbs) per screen.
Egenskaper
Counter-balancing springVision has swapped out the usual expensive gas struts that tension the desk arm for a spring mechanism. Not only is this much cheaper, it automatically counter-balances the load within a range of 2-7kg (4.4-15.5lbs).
Rotate to portraitEvery user is able to position monitor easily positioned to suit using the almost endless tilt, rotation, swivel and height adjustment provided.
Load adjustmentFor lightweight loads like tablets, the bolts on the sides of the arm can be tightened down to stop the arm rising.
Laptop or tablet shelfConvert the mount into a convenient shelf for laptop or tablet using the provided extension strips with grippy silicon pads.
VESA coversFor an enhanced finish in installations where the rear of the display is on view, hide the ugly VESA mounts using the provided covers - ideal for retail and public-facing environments.
SWL 7 kgThe VFM-DAD/4 can support two monitors up to 7 kg (15.4 lbs) each.
Fits displays up to 27-inchWorks for displays from 17- to 27-inch with 100x100 VESA mounting holes. It will also safely support any larger display with the same mounting points and SWL.
Cable managementClips are provided for tidy cable routing.
Clamp or grommetAll the parts required to clamp the arm to the edge of a table surface or bolt to the table are provided.
Reduced cost of ownershipIts durable design ensures it will not need replacing for many years. It is easily and quickly installed, adjusted and moved. Together this delivers a very low cost of ownership.
ThumbscrewsThumbscrews are used to fix the display to help speed up the installation of this mount.
Independent armsMove each arm up and down independently to get the right ergonomic setup.
Teknisk specifikation
Allmänt
Vikt | 4.5 kg |
Material | Aluminium, stål |
Färg | Mattsvart |
Förpackningens innehåll | Tumskruvar, 4 x hyllremsor med silikon för notebook, 8 x M4x12 tumskruvar, 8 x M5x12 tumskruvar, 8 x M5x10-skruvar |
AV-komponenter
Typ | Monteringssats |
Design | Justerbar arm |
Rekommenderad användning | 2 LCD-displayer eller LCD-display och notebook/surfplatta |
Placering/Montering | Disk-monteringsbar |
VESA-infästningsgränssnitt | 100 x 100 mm, 75 x 75 mm |
Kabelhantering | Inbyggd kabelhantering |
Rekommenderad TV-storlek | 17"-27" |
Lutning | -45° till 80° |
Panorering | -90° till 90° |
Lyftkraft | 30.9 cm |
Rotation | 360° |
Justeringar | Höjd, panorering, lutning, rotation |
Maxlast | 14 kg |
Mått och vikt (komponenter)
Emballagets mått (BxDxH) / vikt | 24.5 cm x 39 cm x 17.8 cm / 4.8 kg |
Tillverkarens garanti
Service och support | Begränsad garanti - retur - livstid |
