Produktbeskrivning

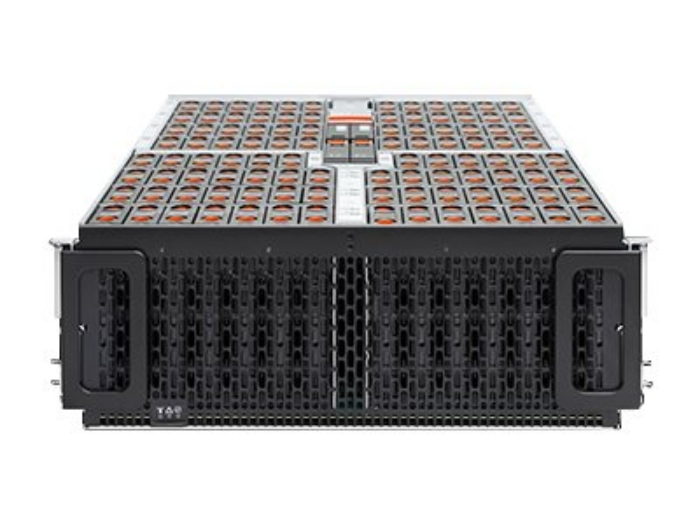

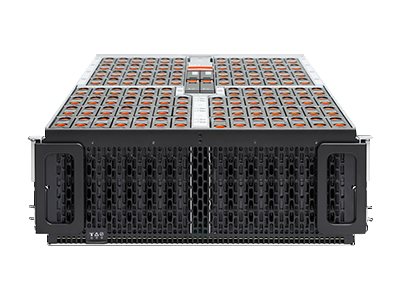

The Ultrastar Data102 hybrid storage platform is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems. The extremely dense form factor provides the flexibility to specify the HDD and SSD combinations for balancing capacity, performance, and cost.
A flash data acceleration tier can be enabled to serve both fast data and big data applications from a single platform. The Ultrastar Data102 addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers, and resellers/integrators that require dense, shared HDD or hybrid storage.
Egenskaper
IsoVibe vibration isolation technologyPrecise cuts in the baseboard provide a suspension for the drives in the chassis, isolating them from transmitted vibration. The result is that consistent performance is maintained, even when all the drives are working hard.
ArcticFlow thermal zone cooling technologyBy introducing cool air into the center of the chassis, drives operate at lower and more consistent temperatures than conventional systems. This results in lower fan speeds, reduced vibration, lower power consumption, quieter operation and ultimately higher reliability.
Teknisk specifikation
Allmänt
Typ av enhet | Kabinett för lagringsenheter |
Modell | Kan monteras i rack - 4U |
Chassi
Antal installerade enheter / moduler | 60 |
Antal enheter/moduler som stöds | 60 |
Enheter som stöds | SATA-600 / SAS-3 |
Hårddisk
Typ | HDD - hot-swap |
Kapacitet | 60 x 10 TB |
Typ av gränssnitt | SAS 12Gb/s |
Egenskaper | Avancerat format 512e |
Expansion/Anslutning
Expansionsfack | 60 (totalt)/ 0 (ledig) x hot-swap - 3.5" |
Gränssnitt | SAS 12Gb/s |
Diverse
Egenskaper | SCSI Enclosure Services (SES), hotswapp-bara fläktar, luftflöde framifrån och bak, IsoVibe-vibrationsisoleringsteknik, ArcticFlow-kylteknik för termisk zoner |
Strömtillförsel
Nätdel | 2 x intern strömförsörjning - hot-plug |
Redundant ström | Ja |
Schema för redundant ström | 1+1 |
Nätspänning | AC 230 V - 50/60 Hz |
Effekt | 1600 Watt |
80 PLUS-certifiering | 80 PLUS Platinum |
Mått och vikt
Bredd | 44.7 cm |
Djup | 104.7 cm |
Höjd | 17.5 cm |
Tillverkarens garanti
Service och support | Begränsad garanti - 5 år |
Miljöparametrar
Min temperatur vid drift | 5 °C |
Max temperatur vid drift | 40 °C |
Luftfuktighet vid drift | 5 - 85% |
