Produktbeskrivning

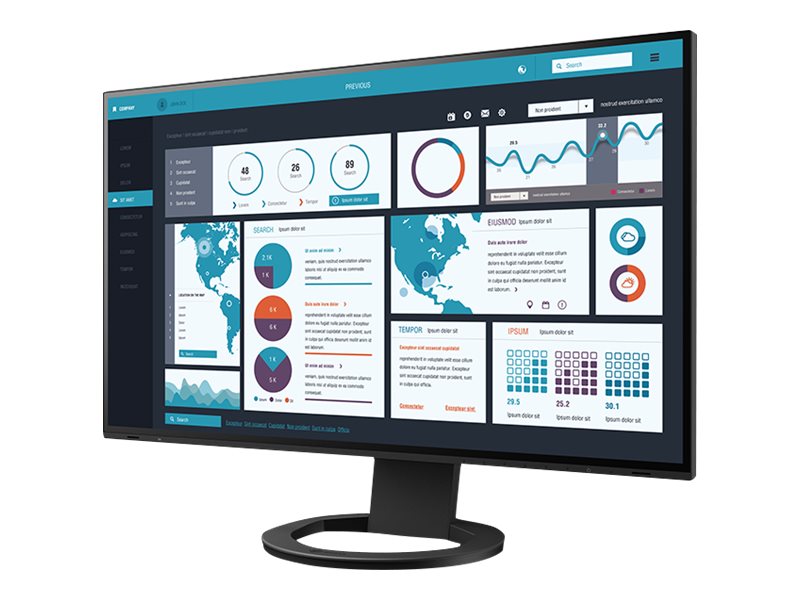

The 27-inch EV2795 (2560 x 1440) is a USB Type-C docking monitor with daisy chain capability for streamlining hot desking and remote working.
Egenskaper
Streamlined connection with USB Type-CThe monitor is equipped with a USB Type-C connection that allows you display video, playback audio, transmit USB signals, supply power to connected devices, and even transmit a network signal. This convenient multi-purpose connectivity makes it faster and easier to connect your laptop when moving between workstations or working away from the office.
Efficient multi-screen setupThe monitor's USB Type-C connection supports daisy chaining for easily connecting multiple monitors from a single video signal output. This allows you to effortlessly connect up to two screens and quickly view multiple applications simultaneously for boosting efficiency.
Rest assured with compatibility testingSometimes it's confusing knowing whether or not daisy chain is compatible with your system. For buyer confidence, EIZO tests current PCs on the market to ensure they are compatible with daisy chain and the monitor.
Stable network connectionWhile many modern laptops are not equipped with a dedicated LAN port, the monitor has one directly built in for a stable wired connection. Connecting any laptop via USB Type-C allows access to the network through the monitor. This allows you to conduct conference calls or data transfers reliably and at high speed.
Aesthetically pleasing designA monitor's aesthetic can go a long way in creating a more comfortable atmosphere. The monitor's minimalistic design and its ergonomic functions allow it to fit naturally in your work environment, whether you are at home or in the office.
Versatile stand for optimal positioningThe stand has a wide adjustment range, featuring height adjustment, tilt and swivel. This allows the user to set the monitor to the perfect position. At maximum height, the user can also comfortably place a small laptop under the screen to save space in even the most limited workspaces.
Reduce cable clutter with daisy chainCable management becomes easier with USB Type-C. Multiple monitors can be connected in a daisy chain using the short cable, CC100, tidying up the back of your desk for an even cleaner office aesthetic.
Free up your workspace with a stand bracketThe PCSK-03 is a VESA-compliant bracket for easily mounting a client, such as a thin client or mini PC to the back of the monitor. The space the client terminal previously occupied is now freed up allowing the users to make better use of their work area. The monitor stand can be adjusted freely, even with the client terminal attached.
Say goodbye to tired eyesThe monitor is equipped with functions to help users concentrate on work by keeping their eyes comfortable throughout the day.
Auto brightness controlTo prevent eye fatigue, a brightness sensor called Auto EcoView detects the changes in the ambient brightness that occurs throughout the day and automatically adjusts the screen to the ideal brightness level.
Reduce blue light by 80%In the visible light spectrum, blue light has wavelengths adjacent to ultraviolet light. Compared to the factory preset setting of 6500 K of typical LCD monitors, Paper Mode is closer to the spectral distribution with long reddish wavelengths so it reduces the amount of blue light, a cause of eye fatigue, and helps prevent eyestrain when reading documents. When used in conjunction with Auto EcoView dimming function, blue light can be reduced by as much as 80%.
Flicker Free technologyDue to the way brightness is controlled on LED backlights, a small number of people perceive flicker on their screen which causes eye fatigue. The FlexScan EV2795 utilizes a hybrid solution to regulate brightness and make flicker unperceivable without any drawbacks like compromising color stability - even on low brightness settings.
Non-glare panelA non-glare panel reduces eye fatigue by dissipating reflective light that would otherwise make the screen difficult to view from different positions.
Teknisk specifikation
Allmänt
Typ av bildskärm | LED-bakgrundsbelyst LCD-skärm / TFT aktiv matris |
Energiklass | Klass D |
Energikonsumtion per år | 23 kWh |
Diagonal storlek | 27" |
Inbyggda enheter | USB 3.1 Gen 1 hub |
Paneltyp | IPS |
Bildförhållande | 16:9 |
Ursprunglig upplösning | 2560 x 1440 |
Pixelhöjd | 0.233 mm |
Pixlar per tum | 109 |
Ljusstyrka | 350 cd/m² |
Kontrastförhållande | 1000:1 |
Responstid | 5 ms (grå-till-grå) |
Vertikal uppdateringshastighet | 59 - 61 Hz |
Horisontell uppdateringshastighet | 31 - 89 kHz |
Horisontell visningsvinkel | 178 |
Vertikal visningsvinkel | 178 |
Bakgrundsbelysningsteknik | LED-bakgrundsbelysning |
OSD-språk | Kinesiska (traditionell), kinesiska (förenklad), engelska, tyska, franska, italienska, svenska, spanska, japanska |
Egenskaper | sRGB färghantering, Auto EcoView, The Paper Mode, flimmerfri teknik, Movie Mode, Power Saving Mode |
Färg | Svart |
Dimensioner (BxDxH) | 61.14 cm x 36.86 cm x 23 cm - med ställ |
Vikt | 8.5 kg |
Ljud
Typ | Högtalare - stereo |
Uteffekt / kanal | 1 Watt |
Anslutning
Gränssnitt | HDMI (HDCP 1.4) DisplayPort (HDCP 1.3) USB-C (HDCP 1.3) USB 3.1 Gen 1 uppströms (Typ B) Hörlurar (minijack) USB-C 3.1 gen 1 uppströms/DisplayPort Alt-läge med strömleverans 3 x USB 3.1 Gen 1 nedströms (Typ A) USB-C 3.1 nedströms med strömleverans |
Mekanisk
Displaylägesjusteringar | Höjd, pivot (rotation), vridbar bas, lutning |
Lutningsvinkel | -5/+35 |
Vridningsvinkel | 344 |
Rotationsvinkel | 180 |
Höjdjustering | 176.6 mm |
VESA-infästningsgränssnitt | 100 x 100 mm |
Diverse
Egenskaper | VESA-gränssnittsstöd |
Medföljande kablar | 1 x USB to LAN Adapter 1 x USB-C-kabel - 2 m |
Monteringssats | Inkluderat |
Standarder som följs | FCC Klass B-certifierade, TUV, TUV GS, TUV S, CB, CCC, TUV Ergo, RoHS, WEEE, PSE Mark, cTUVus, China Energy Label Level 2, EPA, VCCI Class B, EAC, China RoHS, RCM, CAN ICES-3 Class B, TUV LBL |
Strömtillförsel
Inspänning | AC 120/230 V (50/60 Hz) |
Strömkonsumtion (driftläge) | 16 W |
Strömförbrukning för SDR (På-läge) | 16 kWh/1 000 h |
Strömförbrukning (typisk) | 16 Watt |
Strömkonsumtionsställ med | 0.5 Watt |
På/av-omkopplare | Ja |
Programvara / Systemkrav
Inkluderad programvara | EIZO Screen InStyle |
Mått och vikt
Mått och vikt (komponenter) | Med ställ - bredd: 61.14 cm - djup: 36.86 cm - höjd: 23 cm - vikt: 8.5 kg Utan ställ - bredd: 61.14 cm - djup: 5.6 cm - höjd: 35.66 cm - vikt: 5.7 kg |
Miljöstandarder
ENERGY STAR-certifierad | Ja |
Tillverkarens garanti
Service och support | Begränsad garanti - 5 år |
Miljöparametrar
Min temperatur vid drift | 5 °C |
Max temperatur vid drift | 35 °C |
Luftfuktighet vid drift | 20 - 80 % (icke-kondenserande) |
