Produktbeskrivning

The Allied Telesis iGS950 Series of WebSmart network switches demonstrates the Allied Telesis commitment to environmentally-friendly processes and products, minimizing power consumption through the use of a high efficiency power supply and a low power chipset. Featuring PoE+, iGS950 Series switches at the network edge are the ideal cost-effective solution for small businesses.

Ease of management and high performance
These advanced Allied Telesis WebSmart switches combine the simplicity of unmanaged switches with the performance and reliability of managed switches. This provides a cost-effective, secure and reliable solution for integrated management at the network edge. With user-friendly web-based management, the iGS950 Series is ideal for integrating simple management and security into your network solution.

Power over Ethernet (PoE)
The iGS950/10PS, 20PS, 28PS and 52PS switches are available in PoE+ (IEEE 802.3at), with the capability of delivering up to 30W per port. PoE allows users to connect and power a device using a single Ethernet cable, thus eliminating the need for additional power outlets and simplifying installation. Furthermore, this system is unaffected by any local variance in AC power, offering a standardized power infrastructure.



Viktiga egenskaper

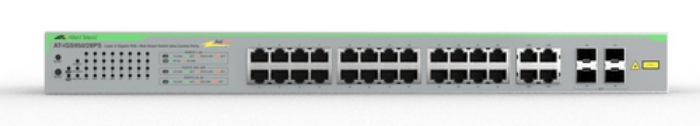

Allied Telesis iGS950/28PS. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1x, IEEE 802.3at. Power over Ethernet (PoE). Wall mountable, Rack mounting, Form factor: Desktop/Wall-Mounting



Teknisk specifikation

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Configuring Location Settings (CLI)	Yes
MIB support	RFC 1213 MIB-II RFC 1643 Ethernet MIB RFC 1493 Bridge MIB RFC 2131 DHCPv4 server and client Private Enterprise MIB (Allied Telesis provides the spec)

Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	24
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Combo SFP ports quantity	4

Networking standards	IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.1p,IEEE 802.3ad,IEEE 802.1x,IEEE 802.3at
10G support	No
Copper ethernet cabling technology	10BASE-T,100BASE-T,1000BASE-T
Full duplex	Yes
Link aggregation	Yes
Ethernet LAN data rates	10,1000,100 Mbit/s
VLAN support	Yes
Number of VLANs	256

Fiber ethernet cabling technology	100BASE-FX,1000BASE-SX,1000BASE-LX

MAC address table	8000 entries
Switching capacity	56 Gbit/s
Forwarding rate	41.7 Mpps
Jumbo frames support	Yes
Jumbo frames	10000
Packet buffer memory	0.512 MB

DHCP features	DHCP client
Access Control List (ACL)	Yes
Access Control List (ACL) IPv4 entries	256
IGMP snooping	Yes
SSH/SSL support	Yes

Multicast support	Yes

Rack mounting	Yes
Form factor	Desktop/Wall-Mounting
Product colour	Silver
Reset button	Yes
LED indicators	Yes
Wall mountable	Yes

Memory type	DRAM
Internal memory	256 MB
Flash memory	32 MB
Telnet	Yes
Noise level	51.7 dB
Fanless	No

Compliance certificates	Trade Agreements Act (TAA),CE,UKCA,Federal Communications Commission (FCC),UL,TÜV mark,RoHS

Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	7 A
Power consumption (typical)	29.8 W
Power consumption (max)	446.1 W
Power plug type	Type F

Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	PoE+
Power over Ethernet (PoE) ports quantity	24
Power over Ethernet plus (PoE+) ports quantity	12
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	370 W

Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	5 - 90 %
Storage relative humidity (H-H)	5 - 95 %
Operating altitude	0 - 3000 m
Heat dissipation	1521.9 BTU/h

Width	440 mm
Depth	250 mm
Height	44 mm
Weight	3920 g

Cables included	Power
Rubber feet	Yes
Mounting brackets included	Yes
Screws included	Yes
Rack mount kit	Yes

Doesn't contain	Lead,Mercury (element),Cadmium

Size (imperial)	19 "
