Produktbeskrivning

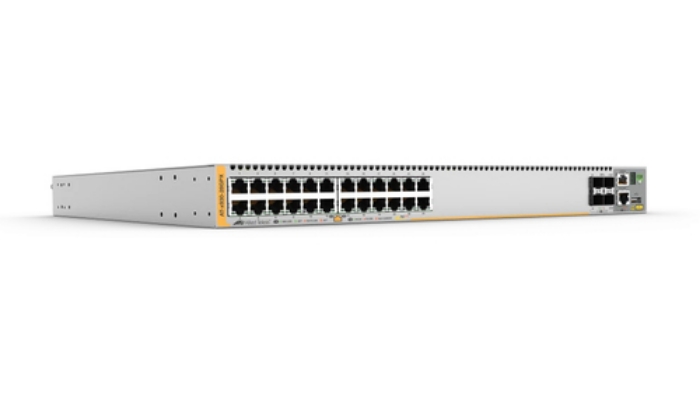

The Allied Telesis x930-28GPX features 24 Gigabit ports with 4 10 Gigabit uplinks, and dual hot-swap power supplies for a fully resilient solution. Long-distance stacking of up to 8 units supports distributed environments, and Power over Ethernet provides the full 30 watts of PoE+ on all ports supporting today’s high-power devices.



Viktiga egenskaper

Allied Telesis x930-28GPX. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 64000 entries, Switching capacity: 2.88 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE.... Power over Ethernet (PoE). Rack mounting



Teknisk specifikation

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
Traffic classification	Yes
ARP inspection	Yes
System event log	Yes

Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	24
SFP+ module slots quantity	4

Networking standards	IEEE 802.1AX,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.1x,IEEE 802.2,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3ba,IEEE 802.3u,IEEE 802.3x,IEEE 802
10G support	Yes
Copper ethernet cabling technology	100BASE-TX,1000BASE-TX
Port mirroring	Yes
Full duplex	Yes
Routing entries	2000
Spanning tree protocol	Yes
Link aggregation	Yes
VLAN support	Yes
Virtual LAN features	Private VLAN

MAC address table	64000 entries
Switching capacity	2.88 Gbit/s
Throughput	214.3 Mpps
Latency (1 Gbps)	3.6 µs
Latency (10 Gbps)	2.6 µs

DHCP features	DHCP client,DHCP server
IGMP snooping	Yes
Security algorithms	802.1x RADIUS

Multicast support	Yes
Multicast MAC address table	2000 entries

Rack mounting	Yes
Stackable	Yes
Product colour	Grey

Firmware upgradeable	Yes
Noise level	56 dB

Power source	AC/DC
Power supply included	Yes
AC input voltage	90 - 260 V
AC input frequency	47/63 Hz
Power consumption (typical)	84 W

Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	5 - 90 %
Storage relative humidity (H-H)	5 - 95 %
Operating altitude	0 - 3048 m
Heat dissipation	301 BTU/h

Width	440 mm
Depth	420 mm
Height	44 mm
Weight	5100 g
