Produktbeskrivning

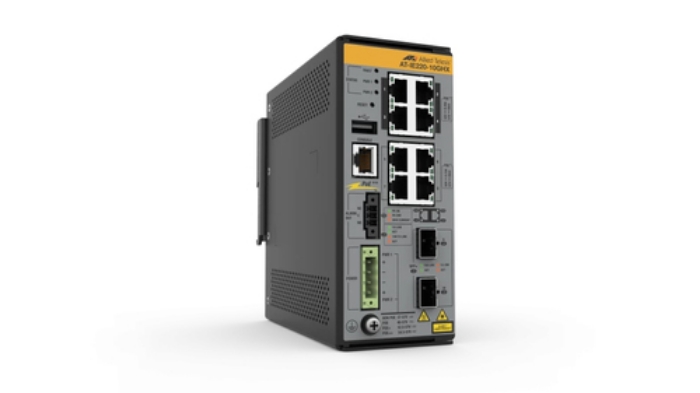

Industrial Ethernet Layer 2+ PoE++ Switches with 10G uplinksRuggedized switches built for enduring performance in harsh environments. Power over Ethernet (PoE++) connects and powers environmental, system control, and other key IIoT devices for a reliable and high-performing solution and 10G fiber uplinks ensure capacity for demanding edge applications. The IE220 Series enables safety, security, and smooth operation for building automation, intelligent transportation, and smart city networks.
Viktiga egenskaper
Allied Telesis IE220-10GHX. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, USB 2.0 ports quantity: 1. Full duplex. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE.... Power over Ethernet (PoE). Wall mountable
Teknisk specifikation
Management features
| Switch type | Managed |
|---|
| Switch layer | L2 |
|---|
| Quality of Service (QoS) support | Yes |
|---|
| Web-based management | Yes |
|---|
| ARP inspection | Yes |
|---|
| Traffic classification | Yes |
|---|
| Configuring Location Settings (CLI) | Yes |
|---|
| Traffic shaping | Yes |
|---|
| System event log | Yes |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|
| Gigabit Ethernet (copper) ports quantity | 10 |
|---|
| Combo SFP ports quantity | 2 |
|---|
| USB 2.0 ports quantity | 1 |
|---|
Network
| Networking standards | IEEE 802.1AX,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ad,IEEE 802.1p,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ac,IEEE 802.3bt |
|---|
| 10G support | No |
|---|
| Full duplex | Yes |
|---|
| Link aggregation | Yes |
|---|
| Flow control support | Yes |
|---|
| VLAN support | Yes |
|---|
| Number of VLANs | 4094 |
|---|
Data transmission
| MAC address table | 16000 entries |
|---|
| Switching capacity | 56 Gbit/s |
|---|
| Throughput | 41.7 Mpps |
|---|
| Jumbo frames support | Yes |
|---|
| Packet buffer memory | 2 MB |
|---|
Security
| DHCP features | DHCP client,DHCP snooping |
|---|
| Access Control List (ACL) | Yes |
|---|
| IGMP snooping | Yes |
|---|
| BPDU filtering/protection | Yes |
|---|
| Security algorithms | 802.1x RADIUS |
|---|
| Authentication | MAC-based authentication,Port-based authentication |
|---|
Multicast features
| Multicast support | Yes |
|---|
Protocols
| Management protocols | SNMPv1/v2c/v3 |
|---|
Design
| Rack mounting | No |
|---|
| Product colour | Grey |
|---|
| Housing material | Aluminium,Metal |
|---|
| Wall mountable | Yes |
|---|
| DIN rail mounting | Yes |
|---|
| International Protection (IP) code | IP30 |
|---|
Performance
| Internal memory | 512 MB |
|---|
| Flash memory | 128 MB |
|---|
| Export Control Classification Number (ECCN) | 5A992C |
|---|
Power
| Power source | DC/PoE |
|---|
| Input voltage | 37 - 57 V |
|---|
| Power consumption (max) | 18.5 W |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|
| Power over Ethernet plus (PoE+) ports quantity | 8 |
|---|
| Power over Ethernet 4PPoE (PoE++) ports quantity | 2 |
|---|
Weight & dimensions
| Width | 65 mm |
|---|
| Depth | 137 mm |
|---|
| Height | 155 mm |
|---|
Logistics data
| Harmonized System (HS) code | 8517.62.0050 |
|---|
