Produktbeskrivning

Industrial Ethernet Layer 3 PoE++ Gigabit Switch

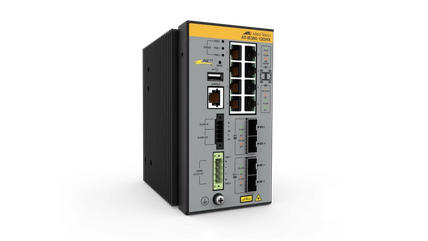

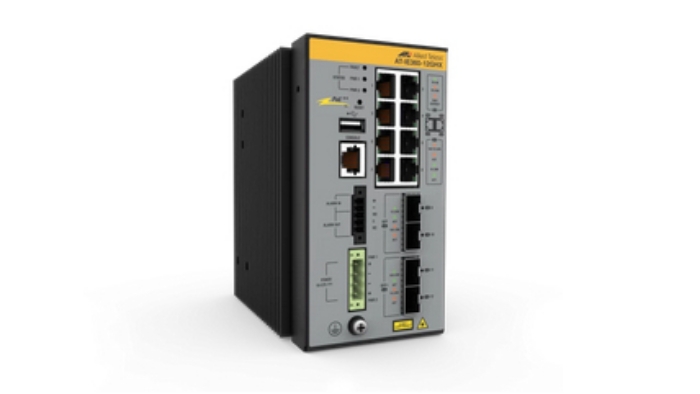

The Allied Telesis IE360-12GHX managed switch features 8 x 10/100/1000T PoE++ copper ports, 2 x 100/1000X SFP ports and 2 x 1G/10G SFP+ ports. A comprehensive feature-set, and built-in security, make it ideal for high-density Industrial Environments.



Viktiga egenskaper

Allied Telesis AT-IE360-12GHX-80. Switch type: Managed, Switch layer: L3. Full duplex. MAC address table: 16000 entries, Switching capacity: 60 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE.... DC input voltage: 18 - 57 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable



Teknisk specifikation

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
Configuring Location Settings (CLI)	Yes
ARP inspection	Yes
Traffic shaping	Yes
Traffic classification	Yes
System event log	Yes

Basic switching RJ-45 Ethernet ports quantity	0
Basic switching RJ-45 Ethernet ports type	No
SFP module slots quantity	2
SFP+ module slots quantity	2
Power connector	DC-in jack

Networking standards	IEEE 802.1AX,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ad,IEEE 802.1p,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ac,IEEE 802.3bt
10G support	Yes
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
VLAN support	Yes
Number of VLANs	4000

MAC address table	16000 entries
Switching capacity	60 Gbit/s
Forwarding rate	44.6 Mpps
Jumbo frames support	Yes
Jumbo frames	12000

DHCP features	DHCP client,DHCP snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
BPDU filtering/protection	Yes
Security algorithms	802.1x RADIUS
Authentication	MAC-based authentication,Port-based authentication

Multicast support	Yes

Management protocols	SNMP

Rack mounting	No
Product colour	Grey
Housing material	Aluminium,Metal
DIN rail mounting	Yes
Wall mountable	Yes
International Protection (IP) code	IP30

Memory type	RAM / Flash
Internal memory	512 MB
Flash memory	128 MB
Fanless	Yes

Power source	DC/PoE
DC input voltage	18 - 57 V
Power consumption (max)	29.9 W

Power over Ethernet (PoE)	Yes
Power over Ethernet 4PPoE (PoE++) ports quantity	8

Width	91 mm
Depth	158 mm
Height	153 mm
Weight	2200 g

Harmonized System (HS) code	8517.62.0020
