Produktbeskrivning

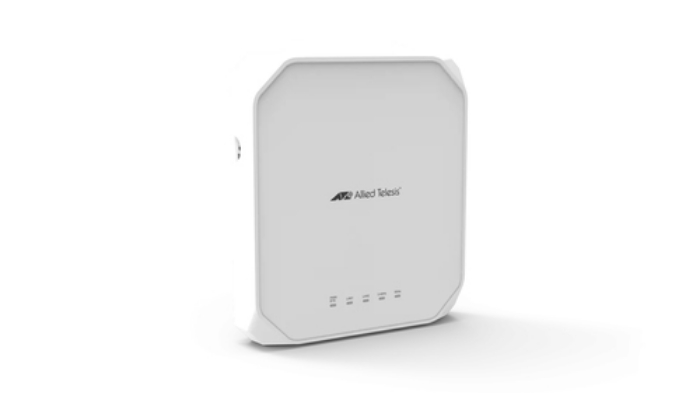

Wi-Fi 6 Wireless AP Router
Allied Telesis TQ6702 GEN2-R combines a high-performance Wi-Fi 6 (802.11ax) access point and a secure VPN router in an innovative LAN and WAN solution. The all-in-one design enables a simplified yet comprehensive network for small businesses or enterprises with multiple locations, such as retail stores, cafes, and more.
For enterprises, the Autonomous Wave Control (AWC) wireless controller, built in to our Vista Manager network management platform, provides full visibility, easy administration, and automatic wireless LAN optimization of all business locations.
Viktiga egenskaper
Allied Telesis AT-TQ6702 GEN2-R-00. 2.4 GHz, 5 GHz, Maximum data transfer rate: 4800 Mbit/s. Security algorithms: 802.1x RADIUS, SSID, WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise. Ethernet LAN data rates: 10,100,1000,2500,5000 Mbit/s. Power over Ethernet (PoE). Product colour: White
Teknisk specifikation
Features
| 2.4 GHz | Yes |
|---|
| 5 GHz | Yes |
|---|
| 6 GHz | No |
|---|
| Maximum data transfer rate | 4800 Mbit/s |
|---|
| Ethernet LAN data rates | 10,100,1000,2500,5000 Mbit/s |
|---|
| Networking standards | IEEE 802.11ax,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x |
|---|
| Cabling technology | 10/100/1000Base-T(X) |
|---|
| MIMO | Yes |
|---|
| MIMO type | Multi User MIMO |
|---|
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
|---|
| Fast roaming | Yes |
|---|
| VLAN support | Yes |
|---|
| Flow control support | Yes |
|---|
| Wireless isolation | Yes |
|---|
| Band steering | Yes |
|---|
| Airtime Fairness (ATF) | Yes |
|---|
| Quality of Service (QoS) support | Yes |
|---|
Security
| Security algorithms | 802.1x RADIUS,SSID,WEP,WPA,WPA-Enterprise,WPA2,WPA2-Enterprise,WPA3,WPA3-Enterprise |
|---|
| MAC address filtering | Yes |
|---|
| Service Set Identifier (SSID) features | Hidden SSID |
|---|
| Auto Wireless Distribution System (WDS) | Yes |
|---|
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
|---|
Protocols
| DHCP client | Yes |
|---|
| Management protocols | SNMPv1, v2c, v3 |
|---|
Management features
| Web-based management | Yes |
|---|
| Syslog | Yes |
|---|
| Firmware upgradeable | Yes |
|---|
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 2 |
|---|
| USB 2.0 ports quantity | 0 |
|---|
Power
| Power over Ethernet (PoE) | Yes |
|---|
| AC input voltage | 100 - 240 V |
|---|
Design
| Placement | Wall |
|---|
| Product colour | White |
|---|
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|
| LED indicators | Yes |
|---|
Antenna
| Antenna type | Internal |
|---|
| Antenna direction type | Omni-directional |
|---|
Performance
| Internal memory | 2000 MB |
|---|
| Flash memory | 1000 MB |
|---|
Weight & dimensions
| Width | 200 mm |
|---|
| Depth | 45 mm |
|---|
| Height | 240 mm |
|---|
| Weight | 1200 g |
|---|
Operational conditions
| Operating relative humidity (H-H) | 5 - 90 % |
|---|
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Storage temperature (T-T) | -25 - 70 °C |
|---|
| Storage relative humidity (H-H) | 5 - 95 % |
|---|
| Operating altitude | 0 - 3048 m |
|---|
