Produktbeskrivning

Layer 3 10G Stackable Managed Switches
The AT-XS916MXT and AT-XS916MXS switches offer cost effective, high-speed 10G connectivity for servers and storage, and support 100/1000 connections for existing networks. The XS900MX Series enable a highly flexible and reliable network, which can easily scale to meet increasing traffic demands.

Overview
The XS900MX Series are the ideal 10G access switches for enterprise networks or anywhere a relay switch with 10G uplink is required. The switches also make the ideal core or aggregation switch, to connect servers and storage in a small network.The AT-XS916MXT features 12 x 100/1000/10GBASE-T and 4 x SFP+ slots. The AT-XS916MXS features 4 x 100/1000/10GBASE-T and 12 x SFP+ slots.

Easy management
The XS900MX Series switches feature Allied Telesis Management FrameworkTM (AMF), a sophisticated suite of management tools that provides a simplified approach to network management. Common tasks are automated or made so simple that the everyday running of a network can be achieved without the need for highly trained, and expensive, network engineers. Powerful features like centralized management, auto-backup, auto-upgrade, auto-provisioning and auto-recovery enable plug-and-play networking and zero-touch management.

Resiliency
Ethernet Protection Switching Ring (EPSRingTM) and 10 Gigabit Ethernet allow several XS900MX Series switches to form a protected ring capable of recovery within as little as 50ms. This feature is perfect for high performance and high availability in enterprise networks.



Viktiga egenskaper

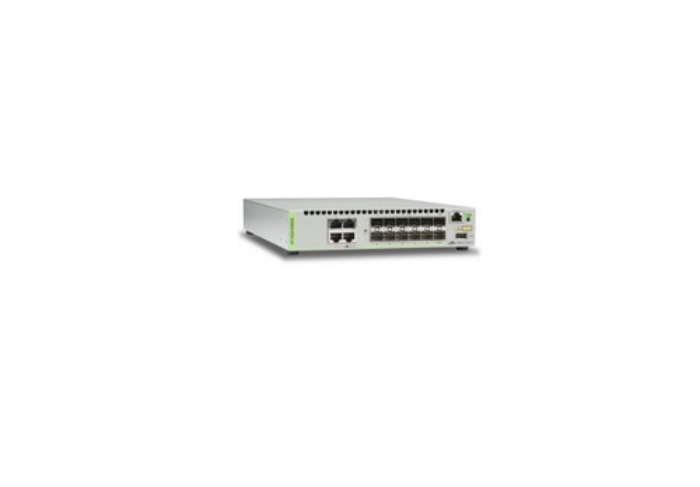

Allied Telesis AT-XS916MXS-50. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 16000 entries, Switching capacity: 320 Gbit/s. Networking standards: IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3x, IEEE...



Teknisk specifikation

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
Traffic classification	Yes
ARP inspection	Yes
System event log	Yes

Basic switching RJ-45 Ethernet ports quantity	4
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	12

Networking standards	IEEE 802.1x,IEEE 802.2,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3x,IEEE 802.3z
10G support	Yes
Port mirroring	Yes
IP routing	Yes
Full duplex	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
Flow control support	Yes
VLAN support	Yes

MAC address table	16000 entries
Switching capacity	320 Gbit/s
Throughput	238 Mpps
Number of queues	8
Jumbo frames support	Yes

DHCP features	DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
BPDU filtering/protection	Yes
Loop protection	Yes
SSH/SSL support	Yes
Authentication	MAC-based authentication

Multicast support	Yes

Management protocols	SNMP

Rack mounting	No
Stackable	Yes
Product colour	Grey

Flash memory	96 MB
Noise level	42 dB

Number of power supply units	1
AC input voltage	100 - 240 V
AC input frequency	47/63 Hz
Power consumption (max)	53 W

Power over Ethernet (PoE)	No

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	5 - 90 %
Storage relative humidity (H-H)	5 - 95 %
Operating altitude	0 - 3000 m
Heat dissipation	180 BTU/h

Width	323 mm
Depth	210 mm
Height	43 mm
Weight	2700 g

Harmonized System (HS) code	85176990
