Produktbeskrivning

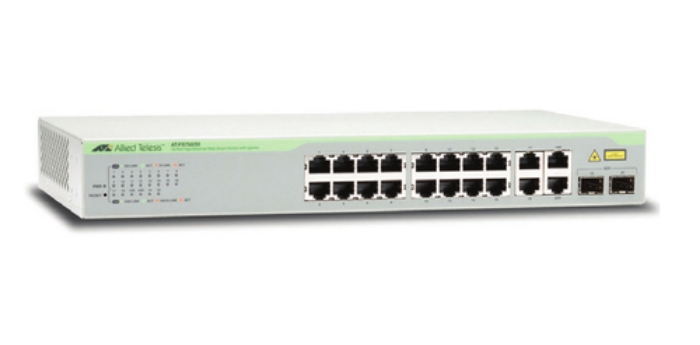

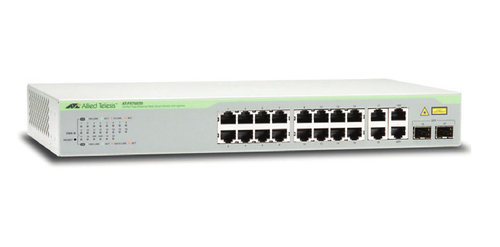

These advanced Allied Telesis WebSmart switches integrate the simplicity of unmanaged switches with the performance and reliability of managed switches to provide a cost-effective, yet secure and reliable, solution for users to integrate management at the edge of their networks. With user-friendly web-based management, the FS750 Series is an ideal option for integrating simple management and security into a network solution.



Viktiga egenskaper

Allied Telesis AT-FS750/20-50. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 20. MAC address table: 8000 entries, Switching capacity: 11.2 Gbit/s. Networking standards: IEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Rack mounting, Form factor: 1U



Teknisk specifikation

Switch type	Managed
Quality of Service (QoS) support	Yes
Web-based management	Yes
System event log	Yes
MIB support	RFC 1213 MIB-II, RFC 1643 Ethernet MIB, RFC 1493 Bridge MIB, RFC 2131 DHCP client, Private Enterprise MIB

Basic switching RJ-45 Ethernet ports quantity	20
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity	16
Gigabit Ethernet (copper) ports quantity	2
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Combo SFP ports quantity	2

Networking standards	IEEE 802.11d,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support	No
Port mirroring	Yes
Spanning tree protocol	Yes
Head-of-line (HOL) blocking	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Virtual LAN features	Tagged VLAN,Port-based VLAN

MAC address table	8000 entries
Switching capacity	11.2 Gbit/s
Number of queues	4
Jumbo frames support	Yes
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (10 Mbps)	14880 pps
Packet forwarding rate (100 Mbps)	148800 pps

DHCP features	DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
MAC address filtering	Yes
Authentication	MAC-based authentication

Multicast support	Yes
Number of multicast groups filtered	256

Management protocols	FTP, HTTP, SNMPv1/v2c/v3, SNTP

Rack mounting	Yes
Form factor	1U
Product colour	Grey

AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	7.6 W

Power over Ethernet (PoE)	No

Operating temperature (T-T)	0 - 40 °C

Width	330 mm
Depth	180 mm
Height	44 mm
Weight	2200 g

Cables included	AC

Harmonized System (HS) code	85176990
