Produktbeskrivning

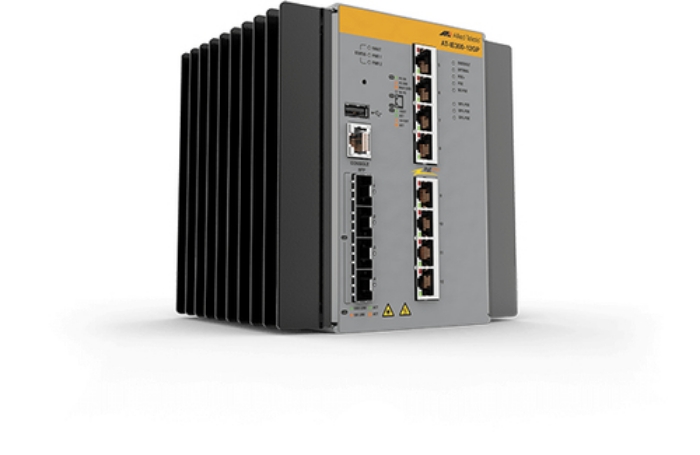

With configurable per-port power distribution, our Gigabit 12-port switch is the ideal solution for variable power deployments, such as point/tilt/zoom cameras, lighting controllers, and point-of-sale kiosks.
The AT-IE300-12GP is a Power over Ethernet Power Sourcing Device (PoE PSD), which is compliant with IEEE802.3af and IEEE802.3at standards.
Each port supplies either 15.40W PoE with 12.95W available to the powered device, or 30.00W PoE+ with 25.50W available to the powered device.
Four ports are configurable for Hi-PoE (also known as Ultra PoE, High PoE, PoE++, and others because there is no current standard), which uses all four pairs in the cable to provide up to 60W—double the capacity of PoE+.
You can configure the overall power budget and the power feeding limit on a per-port basis, to establish a close relationship between the power sourcing feature with the real capabilities of the external Power Supply Unit (PSU).
Enabling the unique High Availability Network Power (HANP) feature, the switch retains PoE sourcing during restart events, such as those due to operator command, software exception, watchdog timeout or diagnostic failures. The restart event is not propagated to the end devices, and camera operation is not affected.
Viktiga egenskaper
Allied Telesis AT-IE300-12GP-80. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 12. MAC address table: 16000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE.... DC input voltage: 48 V. Power over Ethernet (PoE)
Teknisk specifikation
Management features
| Switch type | Managed |
|---|
| Switch layer | L3 |
|---|
| Traffic classification | Yes |
|---|
| Traffic shaping | Yes |
|---|
| ARP inspection | Yes |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 12 |
|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|
| Gigabit Ethernet (copper) ports quantity | 8 |
|---|
| Installed SFP modules quantity | 0 |
|---|
| Installed SFP+ modules quantity | 0 |
|---|
| SFP module slots quantity | 4 |
|---|
Network
| Networking standards | IEEE 802.2,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
|---|
| 10G support | No |
|---|
| VLAN support | Yes |
|---|
| Number of VLANs | 4000 |
|---|
Data transmission
| MAC address table | 16000 entries |
|---|
| Switching capacity | 24 Gbit/s |
|---|
| Forwarding rate | 17.8 Mpps |
|---|
| Latency (10-100 Mbps) | 7.9 µs |
|---|
| Latency (10 Gbps) | 54 µs |
|---|
| Jumbo frames support | Yes |
|---|
| Jumbo frames | 9000 |
|---|
| Packet buffer memory | 1.5 MB |
|---|
Multicast features
| Multicast support | Yes |
|---|
Design
| Product colour | Black,Grey |
|---|
| International Protection (IP) code | IP30 |
|---|
| Certification | RoHS, China RoHS, WEEE, CE, FCC |
|---|
Performance
| Internal memory | 512 MB |
|---|
| Flash memory | 64 MB |
|---|
Power
| Power supply included | Yes |
|---|
| DC input voltage | 48 V |
|---|
| Power consumption (max) | 320 W |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|
| Power over Ethernet plus (PoE+) ports quantity | 8 |
|---|
| Total Power over Ethernet (PoE) budget | 240 W |
|---|
Weight & dimensions
| Width | 146 mm |
|---|
| Depth | 127 mm |
|---|
| Height | 152 mm |
|---|
| Weight | 2000 g |
|---|
