Produktbeskrivning

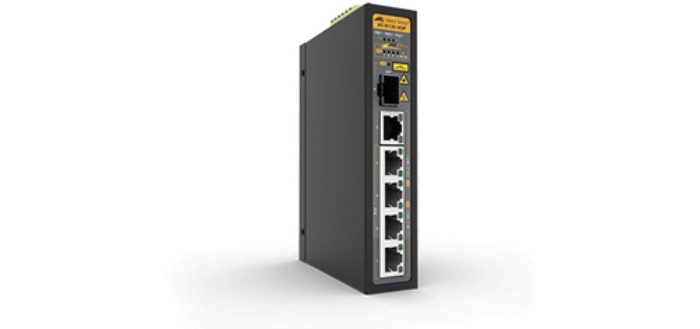

Intended for use in outdoor IoT, city-wide surveillance, transportation and general industrial applications, the IS130-6GP unmanaged Layer 2 switch is engineered for simple operation, easy deployment, and reliable operation in harsh environments.

- Ruggedized design that meets industrial standards for temperature, vibration and electrical noise
- Flexible deployment with a compact design, and wide operating temperature, supporting external building and other outdoor and public-space environments
- Connect and power surveillance cameras, and other IoT devices with a single Ethernet connection
- Simple plug-and-play deployment for easy network edge expansion
- Highly affordable industrial PoE solution



Viktiga egenskaper

Allied Telesis IS130-6GP. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE). Wall mountable



Teknisk specifikation

Switch type	Unmanaged
Switch layer	L2

Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	1

Networking standards	IEEE 802.3af,IEEE 802.3at
10G support	No

MAC address table	2000 entries
Switching capacity	12 Gbit/s
Forwarding rate	8.93 Mpps
Jumbo frames support	Yes
Jumbo frames	9216

Rack mounting	No
Product colour	Black
Housing material	Metal
DIN rail mounting	Yes
Wall mountable	Yes
International Protection (IP) code	IP30
Safety	AS/NZS 62368.1 CAN/CSA C22.2 No.62368-1 EN/IEC/UL62368-1
Electromagnetic compatibility	AS/NZS CISPR 32, A CAN/CSA-CISPR 22 CISPR 22; CISPR 32 EN55024; EN55032, A EN61000-6-2, IEC61000-6-4, A FCC 15B, A ICES-003, 6 A VCCI,A
Certification	WEEE, RoHS

Buffer size	128 KB

Power consumption (max)	109.6 W
DC voltage range	48 - 54 V

Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	4
Total Power over Ethernet (PoE) budget	90 W

Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 95 %
Storage relative humidity (H-H)	10 - 95 %
Operating altitude	0 - 2000 m
Heat dissipation	374 BTU/h

Width	30 mm
Depth	95 mm
Height	140 mm
Weight	500 g

Package width	216 mm
Package depth	165 mm
Package height	68 mm
Package weight	700 g

Harmonized System (HS) code	85176990
