Produktbeskrivning

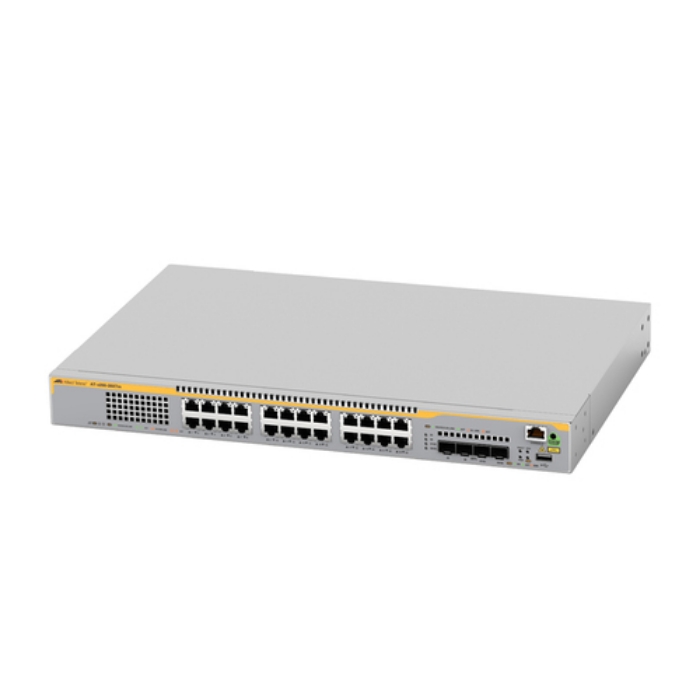

10 Gigabit Stackable Edge Switches
Allied Telesis x250 Series 10 Gigabit Layer 3 stackable switches provide resilient high-speed edge connectivity. All ports support up to 10G speed enabling seamless communication for enterprise servers and other modern applications, with multi-gigabit or fiber connectivity.
Enable a resilient network edge solution using Virtual Chassis Stacking (VCStack™)
Enjoy high-performing network access with multi-gigabit speeds of 1/2.5/5/10G on all edge ports to connect any device, old or new
Support distributed environments with secure long-distance 1/10G (SFP/SFP+) connectivity on fiber models
Maximize application performance with high throughput 10G (SFP/SFP+) uplink ports
Support resilient high-speed ring-based networks with Ethernet Protection Switched Ring (EPSRing™) and standards-based G.8032 ERPS
Reduce costs and automate network and device management with Autonomous Management Framework™ Plus (AMF Plus)
Viktiga egenskaper
Allied Telesis AT-x250-28XTm-50. Switch type: Managed, Switch layer: L3. Full duplex. MAC address table: 32000 entries, Switching capacity: 560 Gbit/s. Networking standards: IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3x, IEEE.... Rack mounting, Form factor: 1U
Teknisk specifikation
Management features
| Switch type | Managed |
|---|
| Switch layer | L3 |
|---|
| Quality of Service (QoS) support | Yes |
|---|
| Web-based management | Yes |
|---|
| ARP inspection | Yes |
|---|
| System event log | Yes |
|---|
| MIB support | Yes |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 0 |
|---|
| Basic switching RJ-45 Ethernet ports type | No |
|---|
| 10G Ethernet (copper) ports quantity | 24 |
|---|
| SFP+ module slots quantity | 4 |
|---|
Network
| Networking standards | IEEE 802.2,IEEE 802.3,IEEE 802.3ab,IEEE 802.3bz,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3x,IEEE 802.3z,IEEE 802.3az |
|---|
| 10G support | Yes |
|---|
| Port mirroring | Yes |
|---|
| Policy-based routing | Yes |
|---|
| Full duplex | Yes |
|---|
| Link aggregation | Yes |
|---|
| Spanning tree protocol | Yes |
|---|
| Flow control support | Yes |
|---|
| Broadcast storm control | Yes |
|---|
| VLAN support | Yes |
|---|
| Number of VLANs | 4094 |
|---|
Data transmission
| MAC address table | 32000 entries |
|---|
| Switching capacity | 560 Gbit/s |
|---|
| Forwarding rate | 416.7 Mpps |
|---|
| Static route | Yes |
|---|
| Number of static routes | 16 |
|---|
| Jumbo frames support | Yes |
|---|
| Jumbo frames | 10000 |
|---|
| Packet buffer memory | 8 MB |
|---|
Security
| DHCP features | DHCPv6 relay,DHCP snooping,DHCPv6 client |
|---|
| Access Control List (ACL) | Yes |
|---|
| IGMP snooping | Yes |
|---|
| SSH/SSL support | Yes |
|---|
| Loop protection | Yes |
|---|
| BPDU filtering/protection | Yes |
|---|
| Authentication | MAC-based authentication,Web-based authentication |
|---|
| Authentication type | RADIUS,TACACS+ |
|---|
| Security algorithms | SSH,SSL/TLS,SHA-1,SHA-256,SHA-384,SHA-512 |
|---|
Multicast features
| Multicast support | Yes |
|---|
Design
| Rack mounting | Yes |
|---|
| Stackable | Yes |
|---|
| Form factor | 1U |
|---|
| Product colour | Grey |
|---|
| LED indicators | Yes |
|---|
Performance
| Memory type | DDR4-SDRAM |
|---|
| Internal memory | 1024 MB |
|---|
| Flash memory | 256 MB |
|---|
Power
| Power supply included | Yes |
|---|
| Power consumption (max) | 160 W |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Storage temperature (T-T) | -25 - 70 °C |
|---|
| Operating relative humidity (H-H) | 5 - 90 % |
|---|
| Storage relative humidity (H-H) | 5 - 95 % |
|---|
| Operating altitude | 0 - 3000 m |
|---|
Weight & dimensions
| Width | 440 mm |
|---|
| Depth | 290 mm |
|---|
| Height | 44 mm |
|---|
| Weight | 4000 g |
|---|
