Cost-Effective & ISV-Certified Graphics Solution.

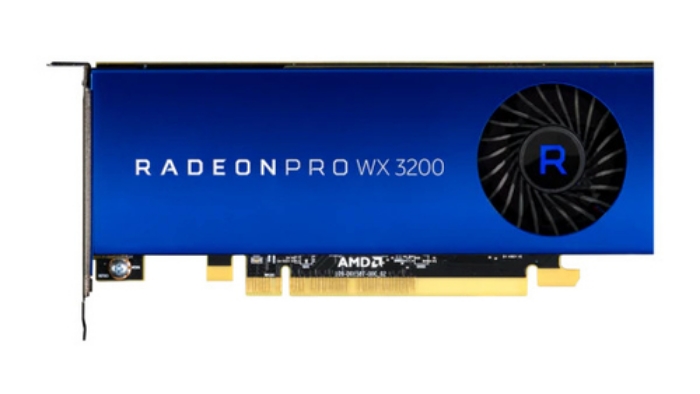

The AMD Radeon™ Pro WX 3200 graphics card is the most cost-effective graphics solution under USD $200 and is ISV-certified for professional use with major design applications.

High Quality Graphics Performance for Small Form Factor Workstations.
The AEC and Manufacturing industries have seen an increased demand for quality visuals in recent years. The Radeon™ Pro WX 3200 workstation graphics card is ideal for mainstream CAD engineers who require an ISV-certified graphics solution at an aggressive price point, while providing a full set of workstation features for deployments of all sizes. The Radeon™ Pro WX 3200 graphics card has a small form factor that is designed to fit into nearly all desktop workstations, supports the latest display standards with four Mini-DisplayPortTM 1.4 outputs, and offers 4GB of high speed GDDR5 memory and up to 1.66 TFLOPS of single precision compute performance.



Viktiga egenskaper

AMD Radeon Pro WX 3200. Graphics processor family: AMD, Graphics processor: Radeon Pro WX 3200. Discrete graphics card memory: 4 GB, Graphics card memory type: GDDR5, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express x16 3.0. Cooling type: Active, Number of fans: 1 fan(s)



Teknisk specifikation

Graphics processor family	AMD
Graphics processor	Radeon Pro WX 3200
Maximum resolution	7680 x 4320 pixels
CUDA	No
Peak floating point performance (single precision)	1660 Gflops
Peak floating point performance (double precision)	104000 Gflops
Stream processors	640

Discrete graphics card memory	4 GB
Graphics card memory type	GDDR5
Memory bus	128 bit
Memory bandwidth (max)	96 GB/s

Interface type	PCI Express x16 3.0
HDMI ports quantity	0
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	0
DisplayPort version	1.4
VGA (D-Sub) ports quantity	0
Mini DisplayPorts quantity	4

DirectX version	12.0
Shader model version	5.1
OpenGL version	4.6
OpenCL version	2.0
Dual Link DVI	No

Cooling type	Active
Number of fans	1 fan(s)
Form factor	Half-Height/Half-Length (HH/HL)
Number of slots	1
Product colour	Blue,Stainless steel
Certification	FCC Class A, CE, C-Tick, BSMI, KCC, UL, VCCL, WEEE

Power consumption (typical)	50 W

Windows operating systems supported	Windows 10
Linux operating systems supported	Yes

Depth	68.58 mm
Height	168 mm

Package type	Box

Compliance certificates	RoHS

Harmonized System (HS) code	84733020
