Produktbeskrivning

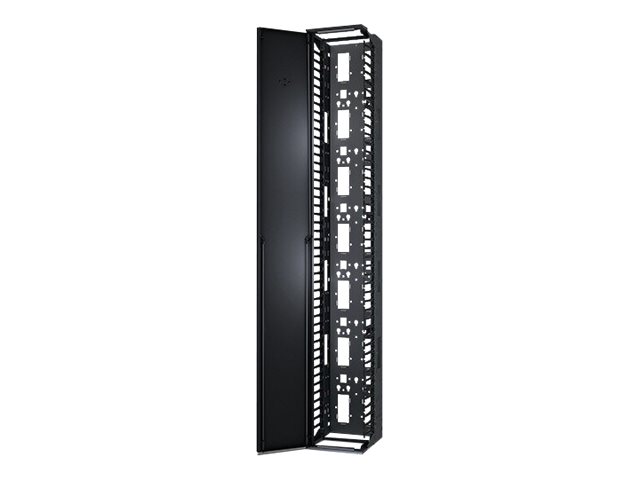

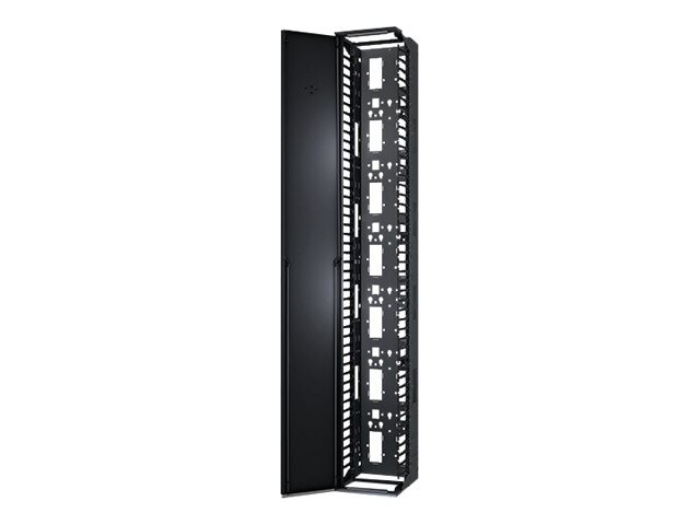

This 12" wide, high capacity vertical cable manager for 2 and 4 post open frame racks features a single-sided cable channel with multiple internal cable tie-off locations and smooth plastic fingers at 1 U increments for organized patching applications.



Egenskaper

Cable management tie-off backplate
Backplates feature multiple mounting holes for toolless accessory installation of vertical rack PDUs and cable management accessories such as hook-and-loop cable managers for cable tie-off and fiber spools for excess fiber slack management.

Vertical cable managers ship fully assembled
Vertical cable managers ship fully assembled reducing the amount of time required to install equipment.

High capacity cable finger design
Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rackspace unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel.

Slam-to-latch full length door
Door installs quickly without tools and is provided with two easy to use latches that allow the door to open to the left or right.

Similar look-and-feel to NetShelter enclosures
Contoured and powdercoat design of the vertical cable manager door and matching enclosure placard provide a clean and consistent look with NetShelter enclosures.

Toollessly mount vertical rack PDUs
Backplates feature several mounting location positions allowing rack PDUs to be toollessly installed with the vertical cable manager channel or on the backside.

Horizontal cable routing front-to-back
Pass-through holes and mounting slots support horizontal cable troughs for front-to-back cable pass-through using cable management accessory.

Grounding connection
Grounding connection point on left and right side of cable channel provides location for grounding the vertical cable manager.



Teknisk specifikation

Produkttyp	Kabelhållarsats för rack
Bredd	30.4 cm
Djup	36 cm
Höjd	213 cm
Vikt	30.4 kg
Färg	Svart

Egenskaper	Vertikal orientering
Standarder som följs	RoHS, REACH

Service och support	Begränsad garanti: - 2 år

Designat för

P/N: AP5602, AP5606, AP5607, AP5616, AP7701X298, AP7911, AP9211, AP9212, AP9217, AP9218, AP9550, AP9553, AP9555, AP9556, AP9557, AP9558, AP9561, AP9571, AR201, AR202, AR203A, AR204A, AR8008BLK, AR8016ABLK, AR8135BLK, AR8444, AR8621, AR8652, AR8678, AR8680, AR8683, NBWL0355A, SMC15002U-BR, SMT3000I2U-BR, SMX2000LVNC, SMX2000LVNCUS, SMX2200R2HVNC, SMX3000HV-BR, SMX3000LV2U-BR, SU042-1, SU044X163, SU2200RMXLI, SU2200RMXLI3U, SU2200RMXLINET, SU2200RMXLNET, SU2200RMXLTNET, SU3000RMINET, SU3000RMNET, SU5000RMI5U, SUA2200R2X180, SUA750R2X122, SURT10000RMXLT, SURT10000RMXLT-2TF5, SURT3000RMXLT, SURT3000RMXLT-1TF5, SURT5000RMXLT, SURT5000RMXLT-1TF5, SURT6000RMXLT, SURT6000RMXLT-1TF5
