Produktbeskrivning

Automatic Voltage Regulation (AVR)

Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.

Wall-mount holes

Allow flexibility for setup in tight locations and mounting on wall or other surfaces.

Transformer-block spaced outlets

Protect equipment with input transformer blocks without blocking access to other receptacles.

Sleek design

Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.

Boost Automatic Voltage Regulation (AVR)

Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.

Cold-start capable

Provides temporary battery power when the utility power is out.

Advanced Safety Features

Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Battery and surge protected outlets

Back up and protect your hardware and data during power outages, surges and spikes.

Battery backup and surge protection

Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.



Viktiga egenskaper

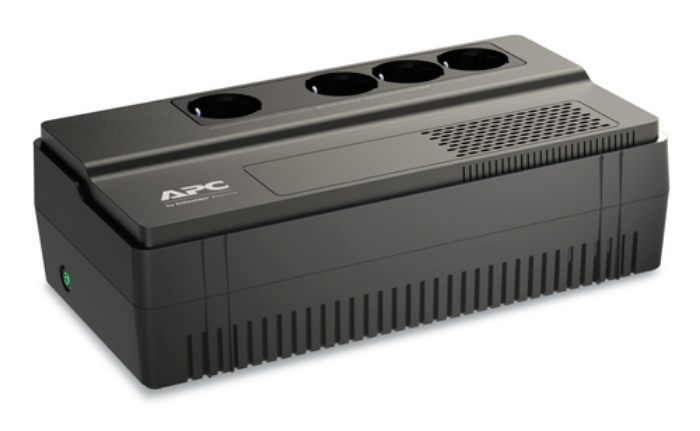

APC BV800I-GR. UPS topology: Line-Interactive, Output power capacity: 0.8 kVA, Output power: 450 W. AC outlet types: Type F, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Compact, Product colour: Black, Cable length: 1.52 m. Compliance certificates: RoHS, Certification: CE REACH



Teknisk specifikation

UPS topology	Line-Interactive
Output power capacity	0.8 kVA
Output power	450 W
Waveform	Sine
Input operation voltage (min)	170 V
Input operation voltage (max)	280 V
Input frequency	50/60 Hz
Output frequency	50/60 Hz
Automatic Voltage Regulation (AVR)	Yes
Transfer time (Line Mode to Battery Mode)	6 ms
Surge energy rating	156 J
Number of input phases	1
Number of output phases	1
Noise level	40 dB
Surge protection	Yes
Audible alarm(s)	Yes
Audible alarm modes	Alarm when on battery,Low battery alarm,Overload alarm

AC outlet types	Type F
AC outlets quantity	4 AC outlet(s)
SmartSlot	No
SmartConnect port	No

Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	7 Ah
Battery voltage	12 V
Battery recharge time	8 h
Cold start	Yes

Form factor	Compact
Product colour	Black
Cable length	1.52 m
LED indicators	Yes
Certification	CE REACH

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90 %
Operating altitude	0 - 1968.3 m

Compliance certificates	RoHS

Width	160 mm
Depth	305 mm
Height	92 mm
Weight	5300 g
Package width	373 mm
Package depth	143 mm
Package height	237 mm
Package weight	5600 g

Management card included	No

Harmonized System (HS) code	85078000

Nominal output voltage	230 V
