Produktbeskrivning

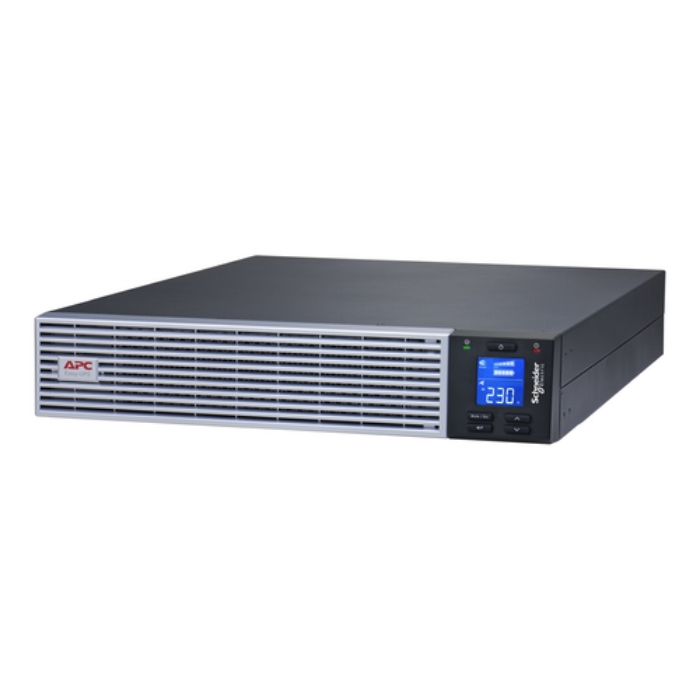

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line lithium-ion 2U UPS provides pure sine wave power to support critical electronics during power disruptions. The SRVL comes with IEC 320 C20 input, 6x IEC 320 C13 and 1x IEC 320 C19 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. With purchased Network Management Card and license, the UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The Emergency Power Off (EPO) function can remotely shut off the UPS in an emergency. It comes with a 5-year warranty. The SRVL comes with a easy-to-read 90 degree rotatable LCD display for detailed and accurate information on UPS status. This lithium-ion UPS is ideal for Surveillance, Co-working space, Healthcare IT, ATMs, Micro Data centers, and Server rooms.



Viktiga egenskaper

APC Easy UPS On-Line, 3kVA, Lithium-ion, Rack/Tower 2U, 230V, 6 IEC C13 + 1 IEC C19 outlets, Intelligent Card Slot, W/ rail kit. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Lithium-Ion (Li-Ion), Battery voltage: 48 V, Typical backup time at full load: 9 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Compliance certificates: CE, RoHS, UKCA, Certification: CB CE UKCA UN 38.3 IEC 62619



Teknisk specifikation

UPS topology	Double-conversion (Online)
Output power capacity	3 kVA
Output power	2700 W
Waveform	Sine
Input operation voltage (min)	110 V
Input operation voltage (max)	300 V
Input frequency	40 - 70 Hz
Output operation voltage (max)	230 V
Output frequency	50/60 Hz
Surge energy rating	945 J
Heat dissipation	1024 BTU/h
Efficiency	90 %
Crest factor	3:1
ECO mode	Yes
Emergency Power Off (EPO)	Yes
Noise level	50 dB
Audible alarm(s)	Yes
Audible alarm modes	Low battery alarm,Overload alarm
Detachable power cord	Yes
Power source type	AC

AC outlet types	C13 coupler,C19 coupler
Power plug	C20 coupler
AC outlets quantity	6 AC outlet(s)
USB port	Yes
USB port type	USB Type-B
Serial interface	Yes
Serial interface type	RS-232
RS-232 ports	1
Modem (RJ-11) ports	1
Ethernet LAN (RJ-45) ports	1
Emergency Power Off (EPO) connector	Yes

Battery technology	Lithium-Ion (Li-Ion)
Battery voltage	48 V
Typical backup time at full load	9 min
Battery life (max)	10 year(s)
Battery recharge time	1.5 h

Form factor	Rackmount/Tower
Product colour	Black
Rack capacity	2U
Cooling type	Active
Built-in fan	Yes
Control type	Buttons
Display type	LCD
LED indicators	Yes
International Protection (IP) code	IP20
Certification	CB CE UKCA UN 38.3 IEC 62619

Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Storage relative humidity (H-H)	0 - 95 %
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Compliance certificates	CE,RoHS,UKCA

Width	438 mm
Depth	632 mm
Height	86 mm
Weight	21200 g
Package width	600 mm
Package depth	800 mm
Package height	240 mm
Package weight	29100 g

Rack mount kit	Yes
Cables included	Output power cable,Phone (RJ-11),RJ-45,RS-232,USB cable
