Produktbeskrivning

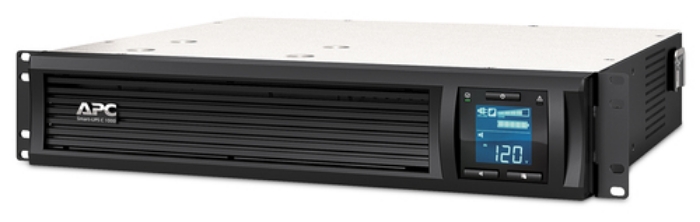

This APC Smart-UPS is designed for small to medium business users to maintain business uptime and continuity. This 1000VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The UPS comes with IEC 320 C14 input, 4x IEC 320 C13 outlets, and 2x IEC jumper cables. This UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The Smart-UPS C has an intuitive graphic LCD interface. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. This line interactive UPS operates in green mode for high operating efficiency. The SMC has a 2-year warranty, and comes with a built-in lead-acid battery. This UPS provides surge protection against lightning strikes, power sags, brownouts and surges. This is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. Designed for small offices or small business owners to maintain a core network and business communication.



Viktiga egenskaper

APC Smart-UPS C, Line Interactive, 1000VA, Rackmount 2U, 230V, 4x IEC C13 outlets, SmartConnect port, USB and Serial communication, AVR, Graphic LCD. UPS topology: Line-Interactive, Output power capacity: 1 kVA, Output power: 600 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery life (max): 6 year(s), Battery recharge time: 3 h. Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Compliance certificates: RoHS, Certification: CSA, CSA C22.2 No. 107.1, FCC Part 15 Class B, ICES-003, UL 1778, REACH



Teknisk specifikation

UPS topology	Line-Interactive
Output power capacity	1 kVA
Output power	600 W
Waveform	Sine
Input operation voltage (min)	170 V
Input operation voltage (max)	300 V
Input frequency	50/60 Hz
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Output frequency	50/60 Hz
Automatic Voltage Regulation (AVR)	Yes
Surge energy rating	680 J
Output voltage Total Harmonic Distortion (THD)	5 %
Noise level	41 dB
Surge protection	Yes
Audible alarm(s)	Yes
Audible alarm modes	Alarm when on battery,Low battery alarm,Overload alarm

AC outlet types	C13 coupler
Power plug	C14 coupler
AC outlets quantity	4 AC outlet(s)
USB port	Yes
USB 2.0 ports quantity	1
Serial interface	Yes
Serial interface type	RS-232
Ethernet LAN (RJ-45) ports	1
SmartSlot	No
SmartConnect port	Yes

Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	1
Battery life (max)	6 year(s)
Battery recharge time	3 h
Replacement battery cartridge	APCRBC124

Form factor	Rackmount
Product colour	Black
Rack capacity	2U
Cable length	2.44 m
Display type	LCD
Certification	CSA, CSA C22.2 No. 107.1, FCC Part 15 Class B, ICES-003, UL 1778, REACH

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95 %
Storage relative humidity (H-H)	0 - 95 %
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Total carbon footprint (kg of CO2e)	945.86
Sustainability certificates	ENERGY STAR,Green Premium
Compliance certificates	RoHS

Width	432 mm
Depth	406 mm
Height	86 mm
Weight	20520 g
Package width	535 mm
Package depth	570 mm
Package height	235 mm
Package weight	20710 g

Rack mount kit	Yes
Management card included	No
Cables included	RJ-45,RS-232
Resource CD	Yes
Software CD	Yes

Products per pallet	16 pc(s)
Harmonized System (HS) code	85078000
