Produktbeskrivning

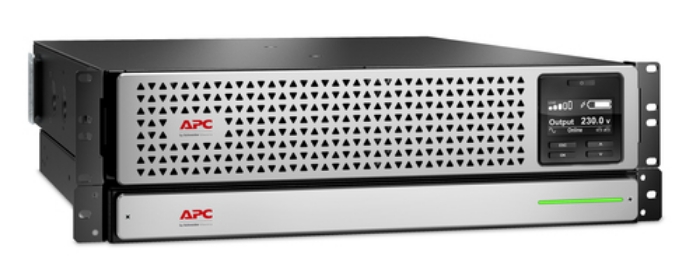

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with IEC 320 C14 input and 8x IEC 320 C13 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery.



Viktiga egenskaper

APC Smart-UPS On-Line, 1000VA, Rackmount 3U, 230V, 8x C13 IEC outlets, SmartSlot, Extended runtime, W/ rail kit, W/ Lithium-ion external battery. UPS topology: Double-conversion (Online), Output power capacity: 1 kVA, Output power: 900 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Lithium-Ion (Li-Ion), Battery life (max): 10 year(s), Battery recharge time: 6 h. Form factor: Rackmount, Product colour: Black, Grey, Rack capacity: 3U. Certification: CE, EAC, RCM, VDE



Teknisk specifikation

UPS topology	Double-conversion (Online)
Output power capacity	1 kVA
Output power	900 W
Waveform	Sine
Input operation voltage (min)	220 V
Input operation voltage (max)	240 V
Input frequency	40/70 Hz
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Output frequency	50/60 Hz
Surge energy rating	340 J
Crest factor	3:1
Emergency Power Off (EPO)	Yes
Noise level	50 dB
Surge protection	Yes
Audible alarm(s)	Yes
Auto-restart	Yes

AC outlet types	C13 coupler
Power plug	C14 coupler
AC outlets quantity	8 AC outlet(s)
USB port	Yes
Serial interface	Yes
Serial interface type	RJ-45
Serial ports quantity	1
SmartSlot	Yes
SmartConnect port	No

Battery technology	Lithium-Ion (Li-Ion)
Battery life (max)	10 year(s)
Battery recharge time	6 h
Hot-swap battery	Yes
Automatic battery test	Yes
Cold start	Yes

Form factor	Rackmount
Product colour	Black,Grey
Rack capacity	3U
Display type	LCD
LED indicators	Status
International Protection (IP) code	IP20
Certification	CE, EAC, RCM, VDE

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Storage relative humidity (H-H)	0 - 95 %
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Sustainability certificates	Green Premium

Width	432 mm
Depth	590 mm
Height	128 mm
Weight	26700 g
Package width	600 mm
Package depth	850 mm
Package height	445 mm
Package weight	37400 g

Management card included	No

Products per pallet	6 pc(s)
Harmonized System (HS) code	85078000

Output voltage	230 V
