Produktbeskrivning

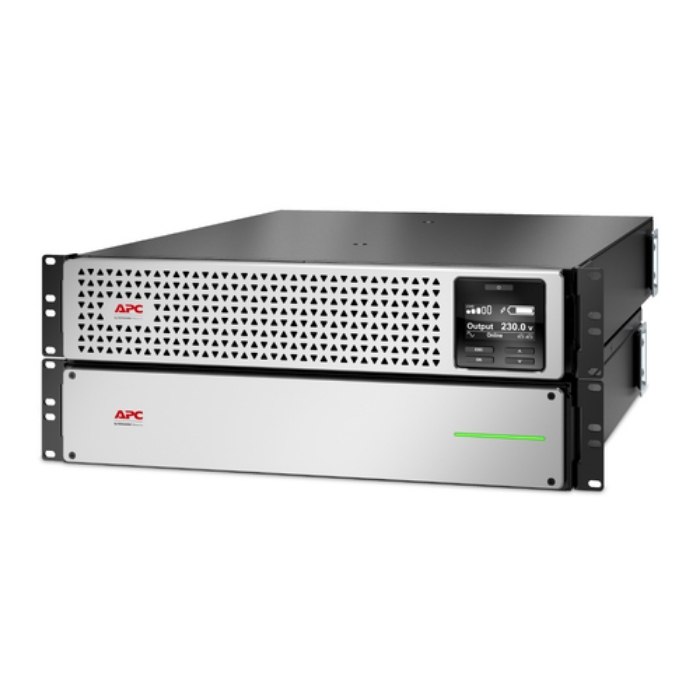

At 2700W/3000VA this Smart-UPS On-Line Lithium-Ion battery backup system provides high-density, double conversion on-line pure sine wave power, preinstalled Netwrok Management Card. In addition to cleaner, quieter power protection, this UPS is only around half size and weight of comparable UPS systems with similar runtime and has flexible rack and tower installation options. A new extended runtime battery pack provides longer runtime in a small 2U footprint while tripling the life expectancy of the UPS. SRTL 1-3kVA UPSs with this rong runtime battery pack is perfect for applications critical for runtime.
Viktiga egenskaper
APC Smart-UPS On-Line, 3kVA, Lithium-ion, Rackmount 4U, 230V, 6x C13+2x C19 IEC outlets, Network Card, Extended long runtime, Rail kit included. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, C19 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Lithium-Ion (Li-Ion), Battery voltage: 48 V, Battery life (max): 10 year(s). Form factor: Rackmount/Tower, Product colour: Black, Silver, Rack capacity: 4U. Sustainability certificates: Green Premium
Teknisk specifikation
Features
| UPS topology | Double-conversion (Online) |
|---|
| Output power capacity | 3 kVA |
|---|
| Output power | 2700 W |
|---|
| Waveform | Sine |
|---|
| Input operation voltage (max) | 230 V |
|---|
| Input frequency | 40/70 Hz |
|---|
| Output frequency | 50/60 Hz |
|---|
| Surge energy rating | 432 J |
|---|
| Crest factor | 3:1 |
|---|
| Output voltage Total Harmonic Distortion (THD) | 2 % |
|---|
| Audible alarm(s) | Yes |
|---|
Ports & interfaces
| AC outlet types | C13 coupler,C19 coupler |
|---|
| AC outlets quantity | 8 AC outlet(s) |
|---|
| Emergency Power Off (EPO) connector | Yes |
|---|
| SmartSlot | Yes |
|---|
| SmartConnect port | No |
|---|
Battery
| Battery technology | Lithium-Ion (Li-Ion) |
|---|
| Battery voltage | 48 V |
|---|
| Battery life (max) | 10 year(s) |
|---|
Design
| Form factor | Rackmount/Tower |
|---|
| Product colour | Black,Silver |
|---|
| Rack capacity | 4U |
|---|
| Cable length | 1.83 m |
|---|
| International Protection (IP) code | IP20 |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -20 - 50 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95 % |
|---|
| Storage relative humidity (H-H) | 0 - 95 % |
|---|
| Operating altitude | 0 - 3048 m |
|---|
Technical details
| Sustainability certificates | Green Premium |
|---|
Weight & dimensions
| Width | 432 mm |
|---|
| Depth | 639 mm |
|---|
| Height | 171 mm |
|---|
| Weight | 44500 g |
|---|
Packaging data
| Rack mount kit | Yes |
|---|
| Management card included | Yes |
|---|
