Produktbeskrivning

At 1350W/1500VA this Smart-UPS On-Line Lithium-Ion battery backup system provides high-density, double conversion on-line pure sine wave power. In addition to cleaner, quieter power protection, this UPS is only around half size and weight of comparable UPS systems with similar runtime and has flexible rack and tower installation options. A new extended runtime battery pack provides longer runtime in a small 2U footprint while tripling the life expectancy of the UPS. SRTL 1-3kVA UPSs with this rong runtime battery pack is perfect for applications critical for runtime.



Viktiga egenskaper

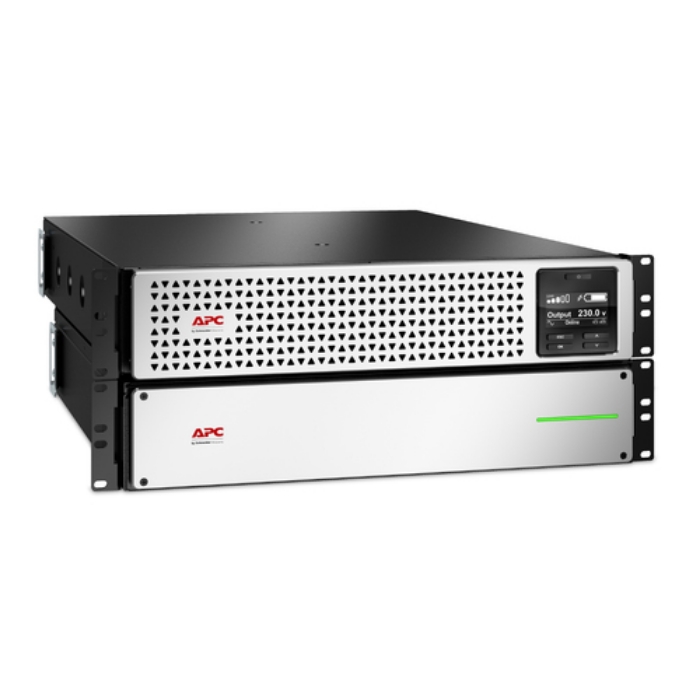

APC Smart-UPS On-Line, 1500VA, Lithium-ion, Rackmount 4U, 230V, 8x C13 IEC outlets, SmartSlot, Extended long runtime, Rail kit included. UPS topology: Double-conversion (Online), Output power capacity: 1.5 kVA, Output power: 1350 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Lithium-Ion (Li-Ion), Battery voltage: 48 V, Typical backup time at full load: 93 min. Form factor: Rackmount/Tower, Product colour: Black, Silver, Rack capacity: 4U. Compliance certificates: CE, RoHS, Certification: RoHS, CE



Teknisk specifikation

UPS topology	Double-conversion (Online)
Output power capacity	1.5 kVA
Output power	1350 W
Waveform	Sine
Input operation voltage (min)	220 V
Input operation voltage (max)	230 V
Input frequency	40 - 70 Hz
Output operation voltage (min)	220 V
Output operation voltage (max)	230 V
Output frequency	50/60 Hz
Output frequency regulation	-3 - 3 Hz
Surge energy rating	340 J
Heat dissipation	450 BTU/h
Number of input phases	1
Crest factor	3:1
Emergency Power Off (EPO)	Yes
Output voltage Total Harmonic Distortion (THD)	2 %
Noise level	50 dB
Surge protection	Yes
Audible alarm(s)	Yes
Power source type	AC
Detachable power cord	Yes

AC outlet types	C13 coupler
Power plug	C14 coupler
AC outlets quantity	8 AC outlet(s)
USB port	Yes
USB 2.0 ports quantity	1
USB port type	USB Type-A
Emergency Power Off (EPO) connector	Yes
SmartSlot	Yes
SmartConnect port	No

Battery technology	Lithium-Ion (Li-Ion)
Battery voltage	48 V
Typical backup time at full load	93 min
Typical backup time at half load	176 min
Battery life (max)	10 year(s)

Form factor	Rackmount/Tower
Product colour	Black,Silver
Rack capacity	4U
Cable length	1.83 m
Control type	Buttons
LED indicators	Yes
International Protection (IP) code	IP20
Certification	RoHS, CE

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95 %
Storage relative humidity (H-H)	0 - 95 %
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 15240 m

Compliance certificates	CE,RoHS
Sustainability certificates	Green Premium

Width	432 mm
Depth	590 mm
Height	171 mm
Weight	40700 g

Management card included	No
Cables included	Power load cable
