Produktbeskrivning

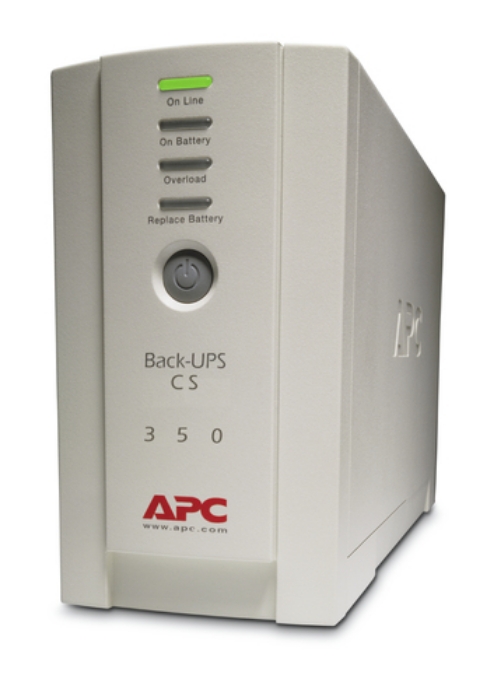

This product is part of the Back-UPS range. The BK350EI features a total of 6 power outlets, 5 of which are UPS battery backup and one that is surge only. Its runtime at 100W is 14 minutes 52 seconds. It provides data line protection with a RJ45 analog phone line for phone or fax or modem or DSL. Its dimensions are 16.5 x 9.1 x 28.4 cm and 6.32kg. The BK350EI ensures office systems and their valuable data are protected from dangerous power surges, spikes and blackouts.



Viktiga egenskaper

APC Back-UPS, 350VA/210W, Tower, 230V, 4x IEC C13 Outlets , User Replaceable Battery. UPS topology: Standby (Offline), Output power capacity: 0.35 kVA, Output power: 210 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery capacity: 116 VAh. Form factor: Tower, Product colour: Beige, Cable length: 1.83 m. Compliance certificates: RoHS, Certification: C-tick, CE, EN 50091-1, EN 50091-2,GOST, VDE, PEP, EOLI



Teknisk specifikation

UPS topology	Standby (Offline)
Output power capacity	0.35 kVA
Output power	210 W
Input operation voltage (min)	180 V
Input operation voltage (max)	266 V
Input frequency	50/60 Hz
Output frequency regulation	47 - 63 Hz
Maximum current	7 A
Surge energy rating	310 J
Hold time (max)	10 ms
Hold time (min)	6 ms
Efficiency	98.6 %
Surge protection	Yes
Surge protection features	Digital Subscriber Line (DSL),Fax,Modem,Telephone
Power protection features	Overload
Audible alarm(s)	Yes
Audible alarm modes	Low battery alarm,Overload alarm

AC outlet types	C13 coupler
Power plug	C14 coupler
AC outlets quantity	4 AC outlet(s)
Number of output IEC jumpers	2
USB port	Yes
SmartSlot	No
SmartConnect port	No

Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	7 Ah
Battery capacity	116 VAh
Battery voltage	12 V
Typical backup time at full load	8.6 min
Typical backup time at half load	22.1 min
Battery life (max)	6 year(s)
Battery recharge time	6 h
Automatic battery test	Yes

Form factor	Tower
Product colour	Beige
Cable length	1.83 m
LED indicators	Battery replacement
Certification	C-tick, CE, EN 50091-1, EN 50091-2,GOST, VDE, PEP, EOLI

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95 %
Storage relative humidity (H-H)	0 - 95 %
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Sustainability certificates	ENERGY STAR,Green Premium
Compliance certificates	RoHS

Width	91 mm
Depth	284 mm
Height	165 mm
Weight	6320 g
Package width	241 mm
Package depth	368 mm
Package height	178 mm
Package weight	7050 g

Management card included	No
Cables included	Phone (RJ-11),USB cable
Quick installation guide	Yes
Software CD	Yes
Warranty card	Yes
Bundled software	PowerChute Serial Edition

Products per pallet	48 pc(s)
Harmonized System (HS) code	85078000

Filtering	Yes
Nominal input voltage	230 V
Nominal output voltage	230 V
