Produktbeskrivning
- Battery failure notification - Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
- 10/100 BaseT Connection - This reduces a major risk of downtime by providing detailed reports on battery age, load, health, etc facilitating the timely replacement of UPS batteries.
- Battery-protected and surge-only outlets - Reserves power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipment.
- Cold-start capable - Provides temporary battery power when the utility power is out.
- Hot-swappable batteries - Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Dataline Surge Protection - Provides protection of connected equipment from power surges on the data lines.
- Automatic self-test - Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Viktiga egenskaper

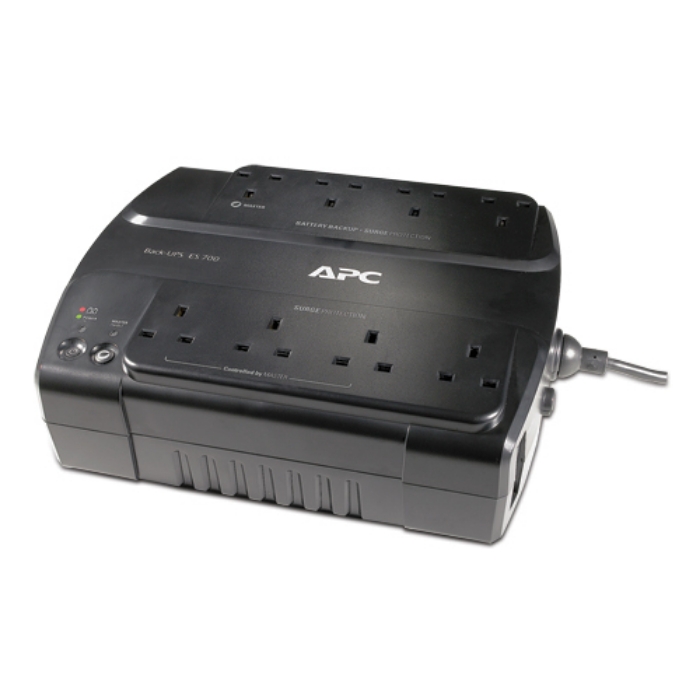

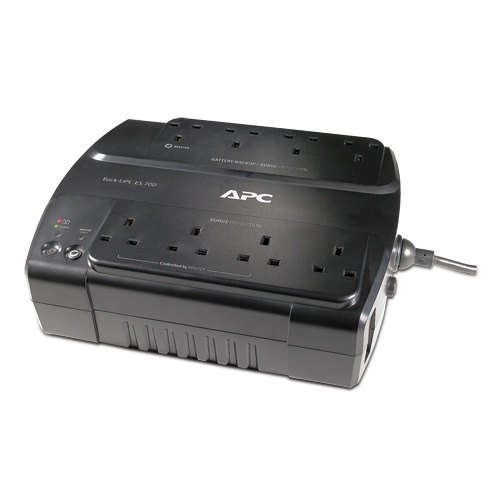

APC Power-Saving Back-UPS ES 8 Outlet 700VA 230V BS 1363. Output power capacity: 0.7 kVA, Output power: 405 W, Input frequency: 47/63 Hz. Typical backup time at full load: 3.5 min, Typical backup time at half load: 13.3 min, Battery recharge time: 16 h. Product colour: Black, Cable length: 1.83 m. Certification: UL, FCC, CE, C-Tick, RoHS. Weight: 6.93 kg
Teknisk specifikation
Features
| Output power capacity | 0.7 kVA |
|---|
| Output power | 405 W |
|---|
| Input frequency | 47/63 Hz |
|---|
| Surge energy rating | 310 J |
|---|
Battery
| Typical backup time at full load | 3.5 min |
|---|
| Typical backup time at half load | 13.3 min |
|---|
| Battery recharge time | 16 h |
|---|
| Replacement battery cartridge | RBC17 |
|---|
Design
| Product colour | Black |
|---|
| Cable length | 1.83 m |
|---|
| Certification | UL, FCC, CE, C-Tick, RoHS |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -15 - 45 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95 % |
|---|
| Storage relative humidity (H-H) | 0 - 95 % |
|---|
| Operating altitude | 0 - 9000 m |
|---|
Weight & dimensions
| Weight | 6930 g |
|---|
| Package weight | 7840 g |
|---|
Other features
| Output connections | 8 x BS 1363 |
|---|
| Dimensions (WxDxH) | 224 x 311 x 89 mm |
|---|
| Nominal input voltage | 230 V |
|---|
| Nominal output voltage | 230 V |
|---|
| Package dimensions (WxDxH) | 279 x 400 x 127 mm |
|---|
