Produktbeskrivning

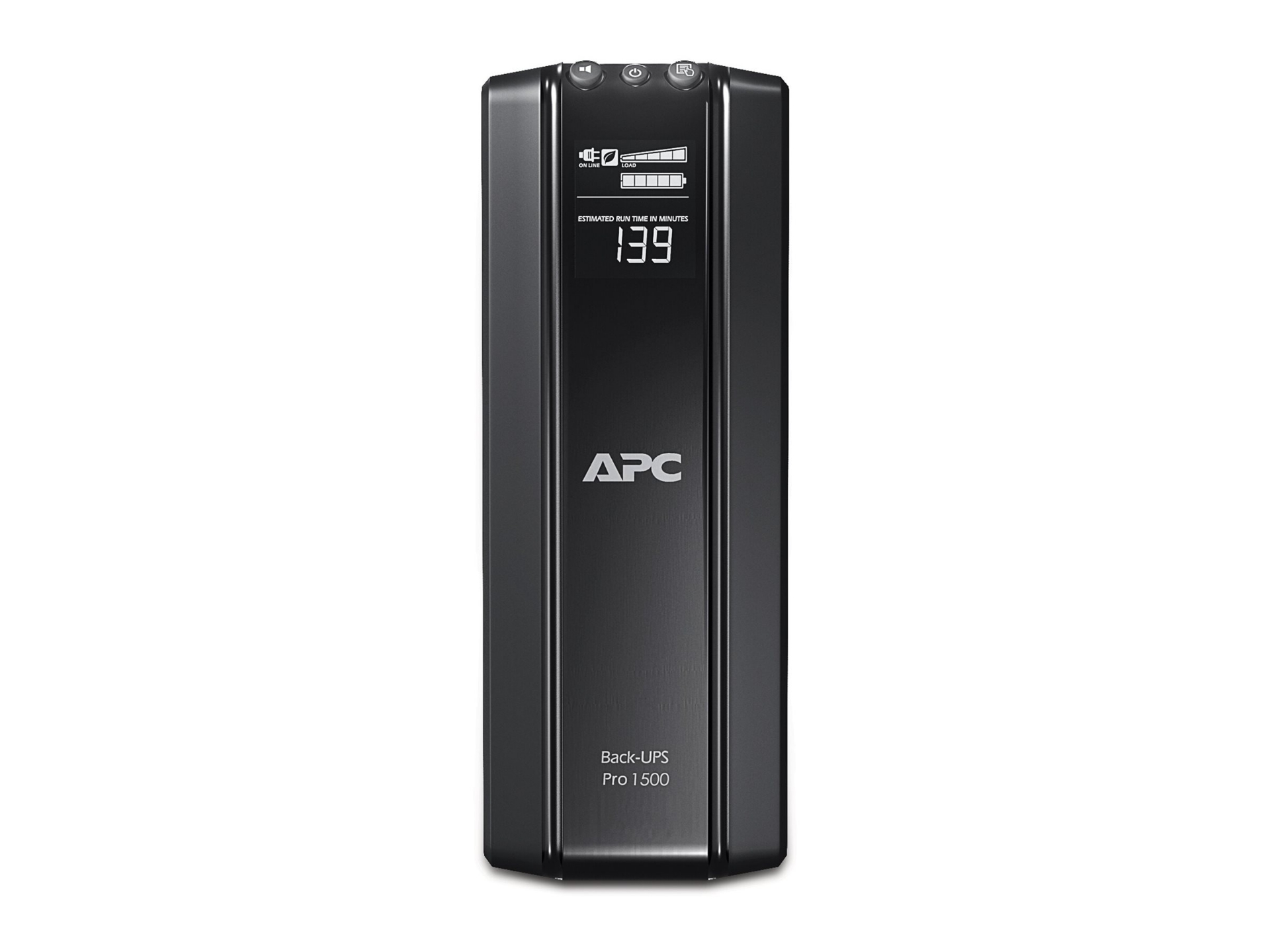

The Back-UPS Pro provides abundant battery backup power, so you can work through medium and extended length power outages. It safeguards your equipment against damaging surges and spikes that travel along utility and data lines. The Back-UPS Pro also features automatic voltage regulation (AVR), which instantly adjusts high and low voltages to safe levels, so you can work indefinitely during brownouts and overvoltages.

The Back-UPS Pro also includes unique "green" features, automatically turn off idle peripherals. A high efficiency charging system and "AVR Bypass" also reduce power consumption. With the rest of the Back-UPS Pro's standard features, this is the perfect unit to protect your productivity from the constant threat of bad power and lost data.



Egenskaper

Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

Battery failure notification
It provides early-warning fault analysis on batteries enabling timely preventive maintenance.

Power-saving outlets
Automatically cut power to idle equipment to conserve electricity.

Battery-protected and surge-only outlets
Reserve power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipment.

Cold-start capable
It provides temporary battery power when the utility power is out.

Hot-swappable batteries
It ensures clean, uninterrupted power to protected equipment while batteries are being replaced.

Disconnected battery notification
It warns when a battery is not available to provide backup power.

Dataline surge protection
It provides protection of connected equipment from power surges on the data lines.

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Adjustable voltage-transfer points
It maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Adjustable voltage sensitivity
It provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Audible alarms
It provides notification of changing utility power and UPS conditions.

User-replaceable batteries
It increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).

Transformer-block spaced outlets
Protect equipment with input transformer blocks without blocking access to other receptacles.

Boost and trim Automatic Voltage Regulation (AVR)
It gives higher application availability by correcting low and high voltage conditions without using the battery.

Intelligent battery management
It maximizes battery performance, life, and reliability through intelligent, precision charging.

Safety-agency approved
It ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Building wiring fault indicator
This LED informs users of potentially dangerous wiring problems in the wall circuit.

Adjustable voltage sensitivity
It provides the ability to adapt the power conditioner for optimal performance in specific power environments or generator applications.

Battery replacement without tools
It allows quick, easy battery replacement.

LCD graphics display
Text and mimic diagram that display modes of operation, system parameters and alarms.



Teknisk specifikation

Typ av enhet	UPS - extern
Batterityp	Intern
Lokalisering	Belgien, Frankrike

Inspänning	AC 230 V
Tillhandahållen frekvens	50/60 Hz
Erforderlig frekvens	47 - 63 Hz
Utspänning	AC 230 V 50/60 Hz
Effektkapacitet	865 Watt / 1500 VA
Överspänningsskydd	Nätverk - RJ-45 Telefonlinje - RJ-11
Spänningsavledning	Ja
Energivärdering	445 joule

Antal	1
Teknik	Bly-syra
Laddningstid	8 timmar

Gränssnitt för fjärradministration	USB

Gränssnitt	1 x hantering (USB)

Medföljande kablar	Strömkabel - integrerad - 1.8 m USB-kabel - extern
Egenskaper	Hotswap-batteri, Lysdiodindikator, Hörbart larm, LCD-bildskärm, Automatisk spänningsreglering (AVR), kallstartfunktion
Standarder som följs	UL 1449, RoHS, REACH

Service och support	Begränsad garanti - 2 år Europeiska Unionen: begränsad garanti - 3 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	0 - 95%
Ljudnivå	45 dBA

Bredd	11.2 cm
Djup	38 cm
Höjd	30.1 cm
Vikt	12.7 kg

Emballagets bredd	23.8 cm
Emballagets djup	48.8 cm
Emballagets höjd	38.7 cm
Emballagets vikt	14.3 kg
