Produktbeskrivning

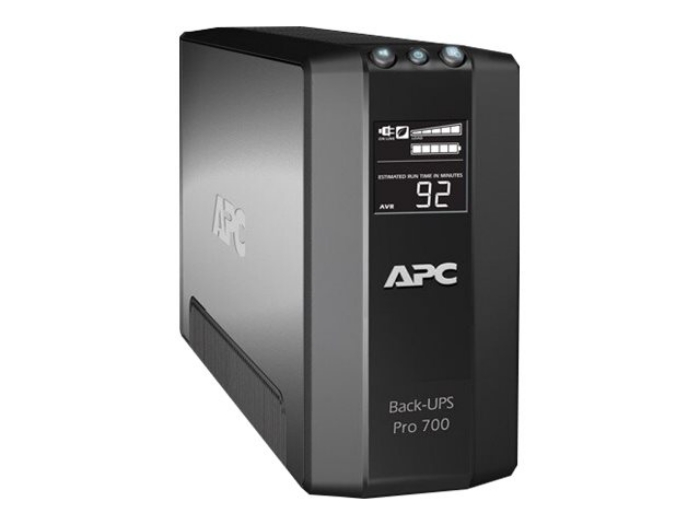

The Back-UPS Pro provides abundant battery backup power, so you can work through medium length power outages. It safeguards your equipment against damaging surges and spikes that travel along utility and data lines. The Back-UPS Pro also features automatic voltage regulation (AVR), which instantly adjusts high and low voltages to safe levels, so you can work indefinitely during brownouts and overvoltages.
The Back-UPS Pro also includes unique "green" features, like power-saving outlets that automatically turn off idle peripherals. A high efficiency charging system and "AVR Bypass" also reduce power consumption. With the rest of the Back-UPS Pro's standard features, this is the perfect unit to protect your productivity from the constant threat of bad power and lost data.
Egenskaper
EfficiencyUPS products considered must achieve operational efficiency in the top 25 percent of the market, thus allowing customers to realize lower electrical operating costs and a smaller carbon footprint.
Performance testedAll UPS products are subject to the EPA's Energy Star test procedure.
Easy-to-use auto shutdown software with power and energy management featuresPowerChute Personal Edition software provides safe system shutdown in the event of an extended power outage and prevents potential data corruption. Designed for exceptional usability, it provides first-time users with optimal protection based on APC industry-leading power management expertise. Users also have the option to tailor PowerChute settings for their individual circumstances. Energy cost and CO2 information provides a greater understanding of the energy consumed by protected equipment and energy plans enable cost savings.
Teknisk specifikation
Allmänt
Typ av enhet | UPS - extern |
Batterityp | Intern |
Färg | Svart |
Nätdel
UPS-teknik | Interaktiv |
Inspänning | AC 120 V |
Inspänningens område | AC 88 - 143 V |
Tillhandahållen frekvens | 50/60 Hz ± 3Hz |
Erforderlig frekvens | 50/60 Hz ± 3Hz |
Inmatningsanslutningar | 1 |
Kontaktdetaljer för uteffekt | 3 x ström, NEMA 5-15 (spänningsutjämnare) 3 x ström, NEMA 5-15 (UPS och spänningsutjämnare) |
Utspänning | AC 120 V 50/60 Hz |
Effektkapacitet | 420 Watt / 700 VA |
Överspänningsskydd | Nätverk/telefonlinje - RJ-45 Kabel-TV/satellit/antenn - F-kontakt |
Utvågform | Stegapproximation till en sinusvåg |
Spänningsavledning | Ja |
Energivärdering | 354 joule |
Kretsskydd | Strömbrytare |
Batteri
Antal | 1 |
Teknik | Bly-syra |
Runtime (upp till) | 3.4 min vid full laddning |
Laddningstid | 12 timmar |
Transfertid | 8 ms |
Nätverk
Gränssnitt för fjärradministration | USB |
Diverse
Medföljande kablar | Strömkabel - integrerad - 1.83 m USB-kabel - extern |
Egenskaper | Hörbart larm, LCD-bildskärm, Automatisk spänningsreglering (AVR) |
Standarder som följs | TUV, NOM, UL 1778, FCC Part 15 B, RoHS, REACH |
Sustainability Information
ENERGY STAR | Ja |
Tillverkarens garanti
Service och support | Begränsad garanti - 3 år |
Miljöparametrar
Min temperatur vid drift | 0 °C |
Max temperatur vid drift | 40 °C |
Luftfuktighet vid drift | 0 - 95% |
Ljudnivå | 45 dBA |
Mått och vikt
Bredd | 9.1 cm |
Djup | 31 cm |
Höjd | 19 cm |
Vikt | 7.15 kg |
Mått och vikt (brutto)
Emballagets bredd | 13.8 cm |
Emballagets djup | 44.2 cm |
Emballagets höjd | 25.2 cm |
Emballagets vikt | 8 kg |
Kompatibilitetsinformation
Designat för | P/N: ACF600, AR106, AR106SH4, AR106SH6, AR109SH4, AR109SH6, AR112, AR112SH4, AR112SH6, AR8213, NBWL0356A, SCL500RM1UC, SCL500RM1UNC, SMTL1000RM2UC, SMTL750RM2UC |
