Produktbeskrivning

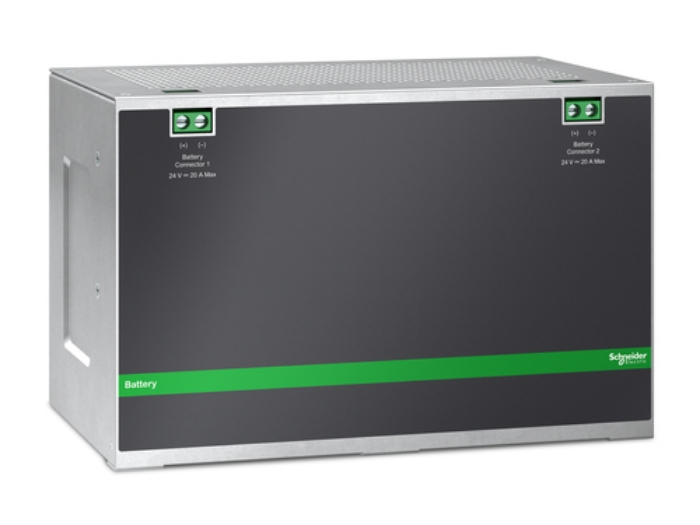

XB005XPDR External Battery Pack, DIN-Rail mounting

Standard configuration
The BVS240XDPDR & BVS480XDPDR DIN-Rail Power Modules must both be equipped with at least one XB005XPDR to function as a full-fledged DIN-Rail 24V DC Uninterruptible Power Supply.

Extend runtime
By connecting two, three or max four XB005XPDR external battery packs to the associated BVS DIN-Rail Power Module instead of one, you can easily increase the number of minutes that the DIN-Rail
emergency power supply can independently supply backup power. A runtime of 30 minutes at 480 watt load is even possible.



Viktiga egenskaper

APC XB005XPDR External Battery Pack, DIN-Rail mounting. Battery voltage: 24 V, Battery capacity: 4.5 Ah, Product colour: Grey. Battery technology: Sealed Lead Acid (VRLA). Weight: 4.5 kg, Width: 192 mm, Height: 129 mm



Teknisk specifikation

Product colour	Grey
Battery technology	Sealed Lead Acid (VRLA)
Battery voltage	24 V
Battery capacity	4.5 Ah

Total carbon footprint (kg of CO2e)	21.98

Weight	4500 g
Width	192 mm
Height	129 mm
Depth	119 mm

Harmonized System (HS) code	85044090
