Produktbeskrivning

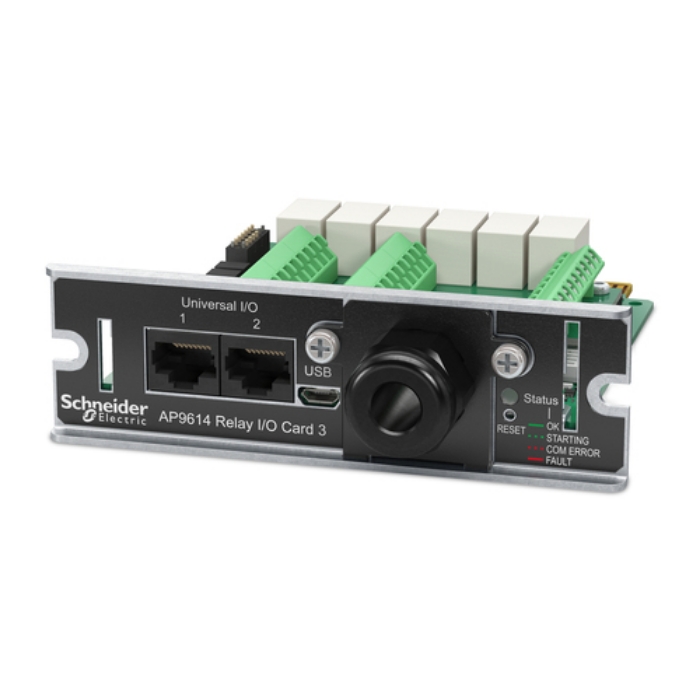

The Dry Contact I/O Card provides 6 configurable output relays and 4 input contacts to monitor external triggers and initiate actions on external devices. The 2 Universal I/O (UIO) ports support optional environmental sensors and the Dry Contact I/O Accessory. The Dry Contact I/O Accessory provides 2 additional dry contact input and relay output interfaces. Connect the included micro-USB cable to the Card and a PC to use the dynamic Web UI. Configure UPS settings and output relay, input contact and environmental sensor actions based on status changes or UPS events.



Viktiga egenskaper

APC AP9614. Product type: Relay card. Width: 121 mm, Depth: 128 mm, Height: 38 mm. Package width: 165 mm, Package depth: 238 mm, Package height: 51 mm



Teknisk specifikation

Product type	Relay card
LED indicators	Yes

Width	121 mm
Depth	128 mm
Height	38 mm
Weight	200 g
Package width	165 mm
Package depth	238 mm
Package height	51 mm
Package weight	440 g

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 65 °C
Non-operating altitude	0 - 15240 m

Total carbon footprint (kg of CO2e)	270
