Produktbeskrivning

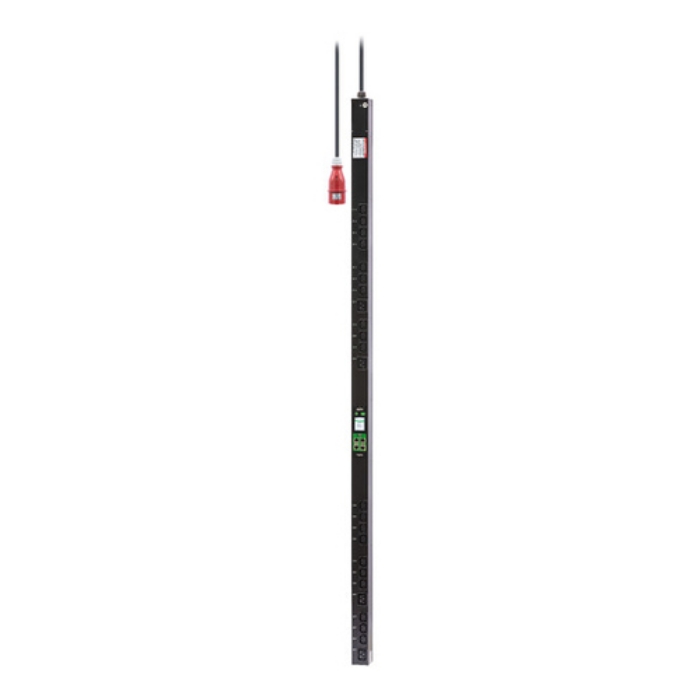

Easy rack PDU Metered-by-Outlet with Switching EPDU2116SMBO provides advanced power monitoring and control capabilities for individual outlets, empowering critical IT infrastructure. The APC Network Management Card NMC3 provides enhanced cybersecurity with secured interfaces. The rack PDU integrates with EcoStruxure IT through a Network Management Card (NMC3) and can be accessed and configured via Web, SNMP, and Command Line Interface. EPDU2116SMBO is designed for single phase applications of upto 3.7kw and industry standards of 1% metering accuracy. This comes with IEC 60309 16A 2P+E type inlet, Twenty IEC C13 and four IEC C19 type outlet sockets. It features an ultra-lightweight aluminum housing, offering up to 50% weight reduction, along with environmental monitoring and an all-new improved display module. Vertical mounting capabilities allow users to mount the units in a rack or enclosure in zero U space without expending valuable rack space This is designed to operate within a temperature range of -5°C to +50°C and is backed by a standard 2-year warranty. Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment) The rack PDU supports daisy-chain of up to 4 PDUs on a single IP address, thereby reducing networking cost.



Viktiga egenskaper

APC Easy Rack PDU, Switched Metered Outlet, 0U, 1 Phase, 3.7kW, 230V, 16A, (20) C13 and (4) C19 outlets, IEC60309 2P+E inlet. PDU types: Metered, Switched, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Cable length: 3 m. Nominal input voltage: 200 - 240 V, Maximum current: 16 A, AC input frequency: 50/60 Hz. Width: 55 mm, Depth: 56 mm, Height: 1800 mm



Teknisk specifikation

PDU types	Metered,Switched
Type	Single-phase
Rack capacity	0U
Product colour	Black

AC outlets quantity	24 AC outlet(s)
Power plug	IEC 60309
AC outlet types	C13 coupler,C19 coupler
Ethernet LAN (RJ-45) ports	1
USB ports quantity	1

Cable length	3 m

Nominal input voltage	200 - 240 V
AC input frequency	50/60 Hz
Maximum current	16 A
Output voltage	230 V
Load capacity	3680 VA
Maximum power	3700 W

Width	55 mm
Depth	56 mm
Height	1800 mm
Weight	6670 g

Package weight	7840 g
Package width	195 mm
Package depth	130 mm
Package height	2030 mm

Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 95 %
