Produktbeskrivning

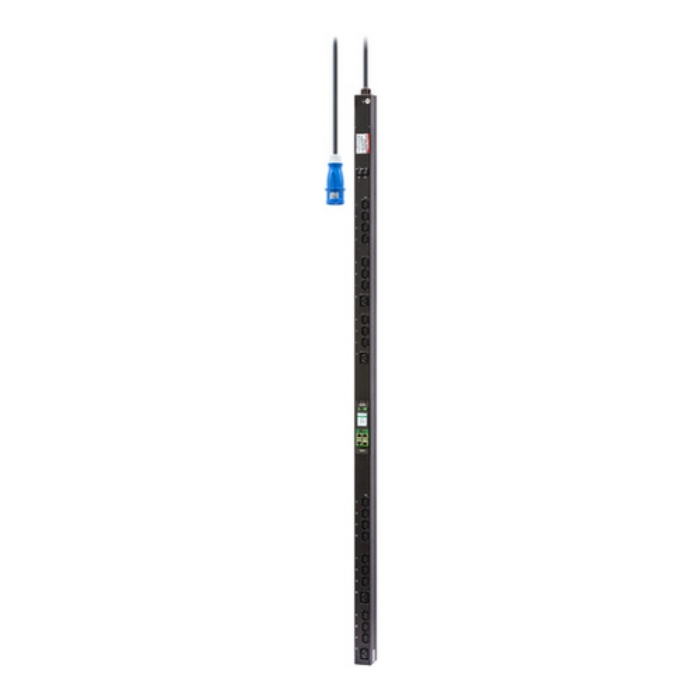

Easy Metered-by-outlet rack PDU EPDU2132MBO provides detailed energy analysis for individual outlets, enabling better capacity planning and resource allocation. The Network Management Card NMC3 provides enhanced cybersecurity with secured interfaces and modified password policy. The rack PDU integrates with EcoStruxure IT through a Network Management Card (NMC3) and can be accessed and configured via Web, SNMP, and Command Line Interface. EPDU2132MB is designed for single phase applications of upto 7.4kw and industry standards of 1% metering accuracy. This comes with IEC 603093 32A 2P+E type inlet, Twenty IEC C13 and four IEC C19 type outlet sockets. It features an ultra-lightweight aluminum housing, offering up to 50% weight reduction, along with environmental monitoring and an all-new improved display module. Vertical mounting capabilities allow users to mount the units in a rack or enclosure in zero U space without expending valuable rack space This is designed to operate within a temperature range of -5°C to +50°C and is backed by a standard 2-year warranty. The rack PDU supports daisy-chain of up to 4 PDUs on a single IP address, thereby reducing networking cost. Environmental monitoring ports for external temperature/humidity monitoring is available (sensor sold separately).



Viktiga egenskaper

APC Easy Rack PDU, Metered Outlet, 0U, 1 Phase, 7.4kW, 230V, 32A, (20) C13 and (4) C19 outlets, IEC60309 2P+E inlet. PDU types: Metered, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Cable length: 3 m. Nominal input voltage: 230 V, Maximum current: 32 A, AC input frequency: 50/60 Hz. Width: 55 mm, Depth: 56 mm, Height: 1800 mm



Teknisk specifikation

PDU types	Metered
Type	Single-phase
Rack capacity	0U
Mounting	Vertical
Housing material	Metal
Product colour	Black
Display	LCD

AC outlets quantity	24 AC outlet(s)
Power plug	IEC 60309
AC outlet types	C13 coupler,C19 coupler
Ethernet LAN (RJ-45) ports	1
USB ports quantity	1

Cable length	3 m

Nominal input voltage	230 V
AC input frequency	50/60 Hz
Maximum current	32 A
Output voltage	200-240 V
Load capacity	7360 VA

Width	55 mm
Depth	56 mm
Height	1800 mm
Weight	7120 g

Package weight	8290 g
Package width	195 mm
Package depth	130 mm
Package height	2030 mm

Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95 %
Storage relative humidity (H-H)	5 - 95 %
