Produktbeskrivning

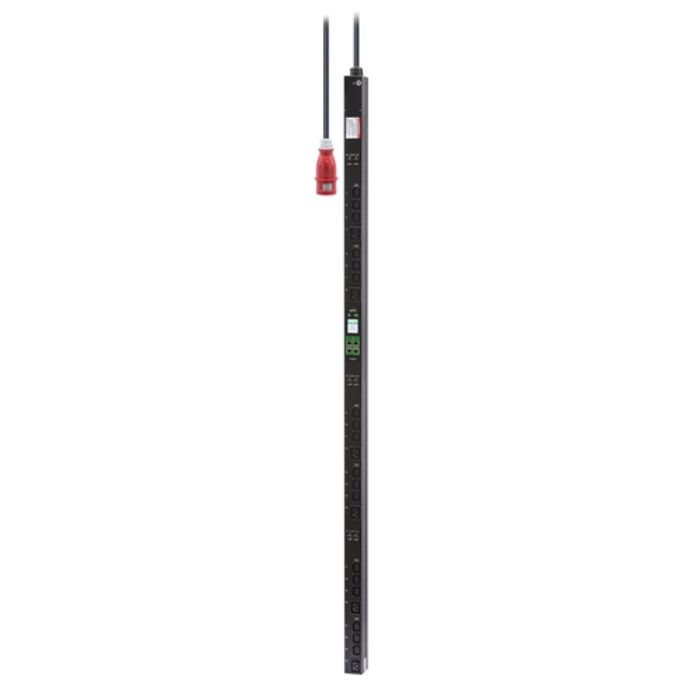

Easy Metered-by-outlet rack PDU EPDU2232MB provides detailed energy analysis for individual outlets, enabling better capacity planning and resource allocation. The Network Management Card NMC3 provides enhanced cybersecurity with secured interfaces and modified password policy. The rack PDU integrates with EcoStruxure IT through a Network Management Card (NMC3) and can be accessed and configured via Web, SNMP, and Command Line Interface. EPDU2232MBO is designed for three phase applications of upto 22kw and industry standards of 1% metering accuracy. This comes with IEC 603093 32A 3P+N+PE type inlet, eighteen IEC C13 and six IEC C19 type outlet sockets. It features an ultra-lightweight aluminum housing, offering up to 50% weight reduction, along with environmental monitoring and an all-new improved display module. Vertical mounting capabilities allow users to mount the units in a rack or enclosure in zero U space without expending valuable rack space This is designed to operate within a temperature range of -5°C to +50°C and is backed by a standard 2-year warranty. The rack PDU supports daisy-chain of up to 4 PDUs on a single IP address, thereby reducing networking cost. Environmental monitoring ports for external temperature/humidity monitoring is available (sensor sold separately).



Viktiga egenskaper

APC Easy Rack PDU, Metered Outlet, 0U, 3 Phase, 22kW, 230V, 32A, (18) C13 and (6) C19 outlets, IEC60309 3P+N+PE inlet. PDU types: Metered, Rack capacity: 0U, Type: Three-phase. AC outlets quantity: 32 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: C13 coupler. Cable length: 3 m. Monitoring: Current, Power, Voltage. Nominal input voltage: 400 V, Maximum current: 32 A, AC input frequency: 50/60 Hz



Teknisk specifikation

PDU types	Metered
Type	Three-phase
Rack capacity	0U
Mounting	Vertical
Housing material	Aluminium
Product colour	Black
Display	LCD
On/off switch	No

AC outlets quantity	32 AC outlet(s)
Power plug	C13 coupler
AC outlet types	C13 coupler,C19 coupler

Daisy chain	No
Reset button	Yes
LED indicators	Yes
Cable length	3 m
Certification	CE, TUV, EN 62368-1, RCM, UKCA

Monitoring	Current,Power,Voltage

Nominal input voltage	400 V
AC input frequency	50/60 Hz
Maximum current	32 A
Nominal output voltage	230 V
Output voltage	230 V
Load capacity	22000 VA
Number of phases	3
Maximum power	22000 W

Width	55 mm
Depth	56 mm
Height	1800 mm
Weight	8380 g

Package weight	9550 g
Package width	195 mm
Package depth	130 mm
Package height	2030 mm

Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 95 %
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Compliance certificates	CE,RCM,REACH,RoHS,cTUVus,UKCA
