Produktbeskrivning

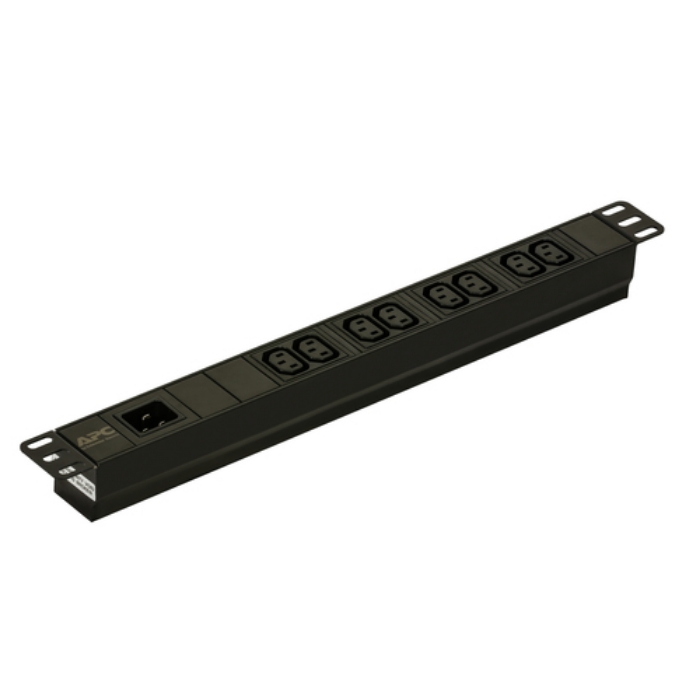

APC Easy Basic Rack PDU EPDU1016B is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is horizontal rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. EPDU1016B has IEC-320 C20 200-240V type inlet and eight IEC C13 type outlet sockets. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. The packaging includes cable, installation guide, user manual and rack mounting brackets for quick and easy mounting inside the rack. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip. Saves time and money during installation by using one branch whip and standard connections.



Viktiga egenskaper

APC Easy Rack PDU, Basic, 1U, 1 Phase, 3.7kW, 230V, 16A, 8 x C13 outlets, IEC60320 C20 inlet. PDU types: Basic, Rack capacity: 1U, Type: Single-phase. AC outlets quantity: 8 AC outlet(s), AC outlet types: C13 coupler, Power plug: C20 coupler. Cable length: 2.5 m. Nominal input voltage: 200/208/230 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz. Compliance certificates: RoHS, Certification: CE, TUV



Teknisk specifikation

PDU types	Basic
Type	Single-phase
Rack capacity	1U
Mounting	Horizontal
Housing material	Aluminium
Product colour	Black
On/off switch	No

AC outlets quantity	8 AC outlet(s)
Power plug	C20 coupler
AC outlet types	C13 coupler

Daisy chain	No
Cable length	2.5 m
Certification	CE, TUV

Nominal input voltage	200/208/230 V
AC input frequency	50 - 60 Hz
Maximum current	16 A
Nominal output voltage	208/230 V
Load capacity	3680 VA
Maximum input current per phase	16 A
Maximum power	3680 W

Width	482 mm
Depth	44 mm
Height	44 mm
Weight	580 g

Package weight	1180 g
Package width	560 mm
Package depth	80 mm
Package height	150 mm

Manual	Yes

Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 95 %
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Compliance certificates	RoHS
