Produktbeskrivning

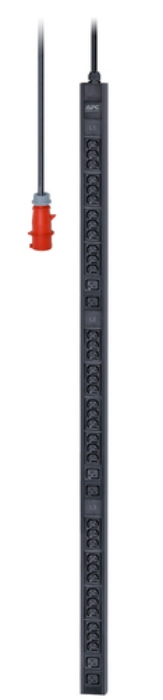

APC Easy Basic Rack PDU EPDU1216B is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is Vertical rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. EPDU1216B has IEC 309 16A 3P+N+E type inlet, Thirty six IEC C13 and six IEC C19 type outlet sockets. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. Vertical mounting capabilities allow users to mount the units in a rack or enclosure without expending valuable rack space The packaging includes installation guide, toolless mounting kit and mounting brackets for quick and easy mounting in the rear of the enclosure. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Saves time and money during installation by using one branch whip and standard connections. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.



Viktiga egenskaper

APC Easy Rack PDU, Basic, 0U, 3 Phase, 11kW, 230V, 16A, 36 x C13 and 6 x C19 outlets, IEC60309 3P+N+PE inlet. PDU types: Basic, Rack capacity: 0U, Type: Three-phase. AC outlets quantity: 42 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Cable length: 2.5 m. Nominal input voltage: 400 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz. Certification: CE, TUV



Teknisk specifikation

PDU types	Basic
Type	Three-phase
Rack capacity	0U
Mounting	Vertical
Housing material	Aluminium
Product colour	Black
On/off switch	No

AC outlets quantity	42 AC outlet(s)
Power plug	IEC 60309
AC outlet types	C13 coupler,C19 coupler

Cable length	2.5 m
Certification	CE, TUV

Nominal input voltage	400 V
AC input frequency	50 - 60 Hz
Maximum current	16 A
Nominal output voltage	230 V
Load capacity	11000 VA
Maximum input current per phase	16 A
Maximum power	11000 W

Width	62 mm
Depth	44 mm
Height	1506 mm
Weight	3080 g

Package weight	4280 g
Package width	160 mm
Package depth	110 mm
Package height	1660 mm

Manual	Yes

Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95 %
Storage relative humidity (H-H)	5 - 95 %
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Total carbon footprint (kg of CO2e)	78.59
