Produktbeskrivning

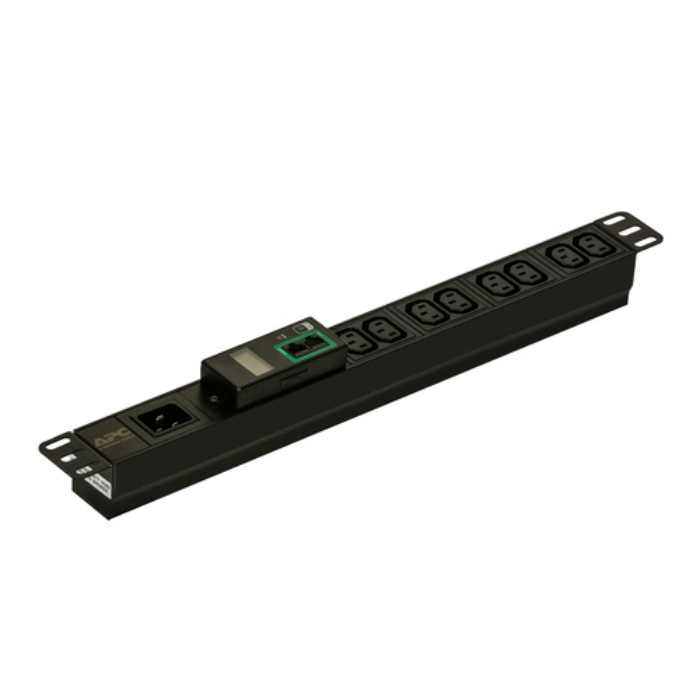

APC Easy Metered Rack PDU EPDU1016M is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides real-time remote monitoring, power management of connected loads, and much more features than the average power strip. EPDU1016M has IEC 60320 C20 200-240V type inlet and eight IEC C13 type outlet sockets. This is horizontal rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Full-featured user friendly network management web interface provides standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. The packaging includes cable, installation guide, user manual and horizontal mounting brackets for quick and easy mounting in the rear of the enclosure. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Command Line Interface. Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.



Viktiga egenskaper

APC Easy Rack PDU, Metered, 1U, 1 Phase, 3.7kW, 230V, 16A, 8 x C13 outlets, IEC60320 C20 inlet. PDU types: Metered, Rack capacity: 1U, Type: Single-phase. AC outlets quantity: 8 AC outlet(s), AC outlet types: C13 coupler, Power plug: C20 coupler. Cable length: 2.5 m. Monitoring: Current, Power, Voltage. Nominal input voltage: 200/208/230 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz



Teknisk specifikation

PDU types	Metered
Type	Single-phase
Rack capacity	1U
Mounting	Horizontal
Housing material	Aluminium
Product colour	Black
Display	LCD
On/off switch	No

AC outlets quantity	8 AC outlet(s)
Power plug	C20 coupler
AC outlet types	C13 coupler

Daisy chain	No
LED indicators	Yes
Cable length	2.5 m
Certification	CE, TUV

Monitoring	Current,Power,Voltage
Firmware upgradeable	Yes

Nominal input voltage	200/208/230 V
AC input frequency	50 - 60 Hz
Maximum current	16 A
Nominal output voltage	208/230 V
Load capacity	3680 VA
Maximum input current per phase	16 A
Maximum power	3680 W

Width	482 mm
Depth	44 mm
Height	44 mm
Weight	700 g

Package weight	1400 g
Package width	560 mm
Package depth	150 mm
Package height	80 mm

Manual	Yes

Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 95 %
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Total carbon footprint (kg of CO2e)	5177.36
Compliance certificates	RoHS
