Produktbeskrivning

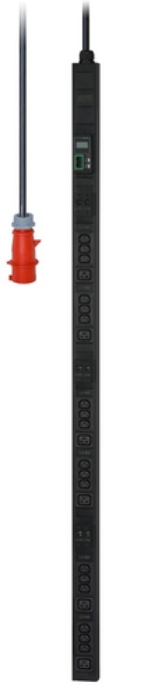

APC Easy Metered Rack PDU EPDU1232M is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides real-time remote monitoring, power management of connected loads, and much more features than the average power strip. EPDU1232M has IEC 309 32A 3P+N+E type inlet, eighteen IEC C13 and six IEC C19 type outlet sockets. This is integrated with Hydraulic-magnetic circuit breakers (in units with 32A input current). This is vertical rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Full-featured user friendly network management web interface provides standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. The packaging includes installation guide, user manual toolless mounting kit and vertical mounting brackets for quick and easy mounting in the enclosure. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty.



Viktiga egenskaper

APC Easy Rack PDU, Metered, 0U, 3 Phase, 22kW, 230V, 32A, 18 x C13 and 6 x C19 outlets, IEC60309 3P+N+PE inlet. PDU types: Metered, Rack capacity: 0U, Type: Three-phase. AC outlets quantity: 32 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: C13 coupler. Monitoring: Current, Power, Voltage. Nominal input voltage: 400 V, Maximum current: 32 A, AC input frequency: 50 - 60 Hz. Compliance certificates: RoHS, Certification: CE, EAC, RCM, TUV



Teknisk specifikation

PDU types	Metered
Type	Three-phase
Rack capacity	0U
Mounting	Vertical
Housing material	Aluminium
Product colour	Black
Display	LCD
On/off switch	No

AC outlets quantity	32 AC outlet(s)
Power plug	C13 coupler
AC outlet types	C13 coupler,C19 coupler

Daisy chain	No
Reset button	Yes
LED indicators	Yes
Certification	CE, EAC, RCM, TUV

Monitoring	Current,Power,Voltage

Nominal input voltage	400 V
AC input frequency	50 - 60 Hz
Maximum current	32 A
Nominal output voltage	230 V
Output voltage	230 V
Load capacity	22080 VA
Maximum power	22000 W

Width	62 mm
Depth	44 mm
Height	1506 mm
Weight	4640 g

Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95 %
Storage relative humidity (H-H)	5 - 95 %

Total carbon footprint (kg of CO2e)	37789.25
Compliance certificates	RoHS
