Produktbeskrivning

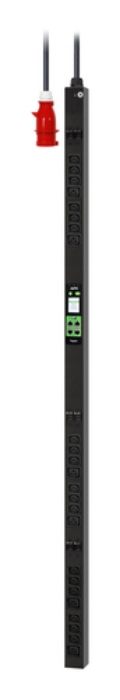

Schneider Easy Metered Rack PDU EPDU2232M is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides real-time remote monitoring, power management of connected loads, and much more features than the average power strip. EPDU2232M has IEC 309 32A 3P+N+E type inlet, eighteen IEC C13 and six IEC C19 type outlet sockets. This is integrated with Hydraulic-magnetic circuit breakers (in units with 32A input current). This is vertical rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Full-featured user friendly network management web interface provides standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. The green packaging includes installation guide, user manual toolless mounting kit and vertical mounting brackets for quick and easy mounting in the enclosure.



Viktiga egenskaper

APC Easy PDU Metered Zero U 22 kW 230V (18) C13 (6) C19 IEC309. PDU types: Metered, Rack capacity: 0U, Type: Three-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: C13 coupler. Nominal input voltage: 400 V, Maximum current: 32 A, AC input frequency: 50/60 Hz. Compliance certificates: CE, UKCA. Width: 56 mm, Depth: 56 mm, Height: 1650 mm



Teknisk specifikation

PDU types	Metered
Type	Three-phase
Rack capacity	0U
Mounting	Vertical
Product colour	Black

AC outlets quantity	24 AC outlet(s)
Power plug	C13 coupler
AC outlet types	C13 coupler,C19 coupler

Nominal input voltage	400 V
AC input frequency	50/60 Hz
Maximum current	32 A
Nominal output voltage	230 V
Output voltage	230 V
Load capacity	22080 VA
Number of phases	3

Width	56 mm
Depth	56 mm
Height	1650 mm
Weight	4850 g

Package weight	6050 g
Package width	170 mm
Package depth	1810 mm
Package height	1260 mm

Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 95 %
Operating altitude	0 - 3000 m

Total carbon footprint (kg of CO2e)	1655
Compliance certificates	CE,UKCA
