Produktbeskrivning

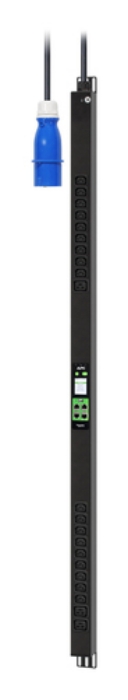

Schneider Easy Metered Rack PDU EPDU2116M is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides real-time remote monitoring, power management of connected loads, and much more features than the average power strip. EPDU2116M has IEC 60309 16A 2P+E type inlet, eighteen IEC C13 and three IEC C19 type outlet sockets. This is vertical rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Full-featured user friendly network management web interface provides standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. The green packaging includes installation guide, user manual and vertical mounting brackets for quick and easy mounting in the rear of the enclosure.



Viktiga egenskaper

APC Easy PDU Metered ZeroU 16A 230V (18)C13 (3)C19 IEC309. PDU types: Metered, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 21 AC outlet(s), AC outlet types: C13 coupler, Power plug: IEC 60309. Nominal input voltage: 230 V, Maximum current: 16 A, AC input frequency: 50/60 Hz. Compliance certificates: CE, UKCA. Width: 56 mm, Depth: 56 mm, Height: 1400 mm



Teknisk specifikation

PDU types	Metered
Type	Single-phase
Rack capacity	0U
Mounting	Vertical
Product colour	Black

AC outlets quantity	21 AC outlet(s)
Power plug	IEC 60309
AC outlet types	C13 coupler

Nominal input voltage	230 V
AC input frequency	50/60 Hz
Maximum current	16 A
Nominal output voltage	230 V
Output voltage	230 V
Load capacity	3680 VA
Number of phases	1

Width	56 mm
Depth	56 mm
Height	1400 mm
Weight	3050 g

Package weight	4050 g
Package width	260 mm
Package depth	1560 mm
Package height	680 mm

Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95 %
Storage relative humidity (H-H)	5 - 95 %
Operating altitude	0 - 3000 m

Total carbon footprint (kg of CO2e)	580
Compliance certificates	CE,UKCA
