Produktbeskrivning

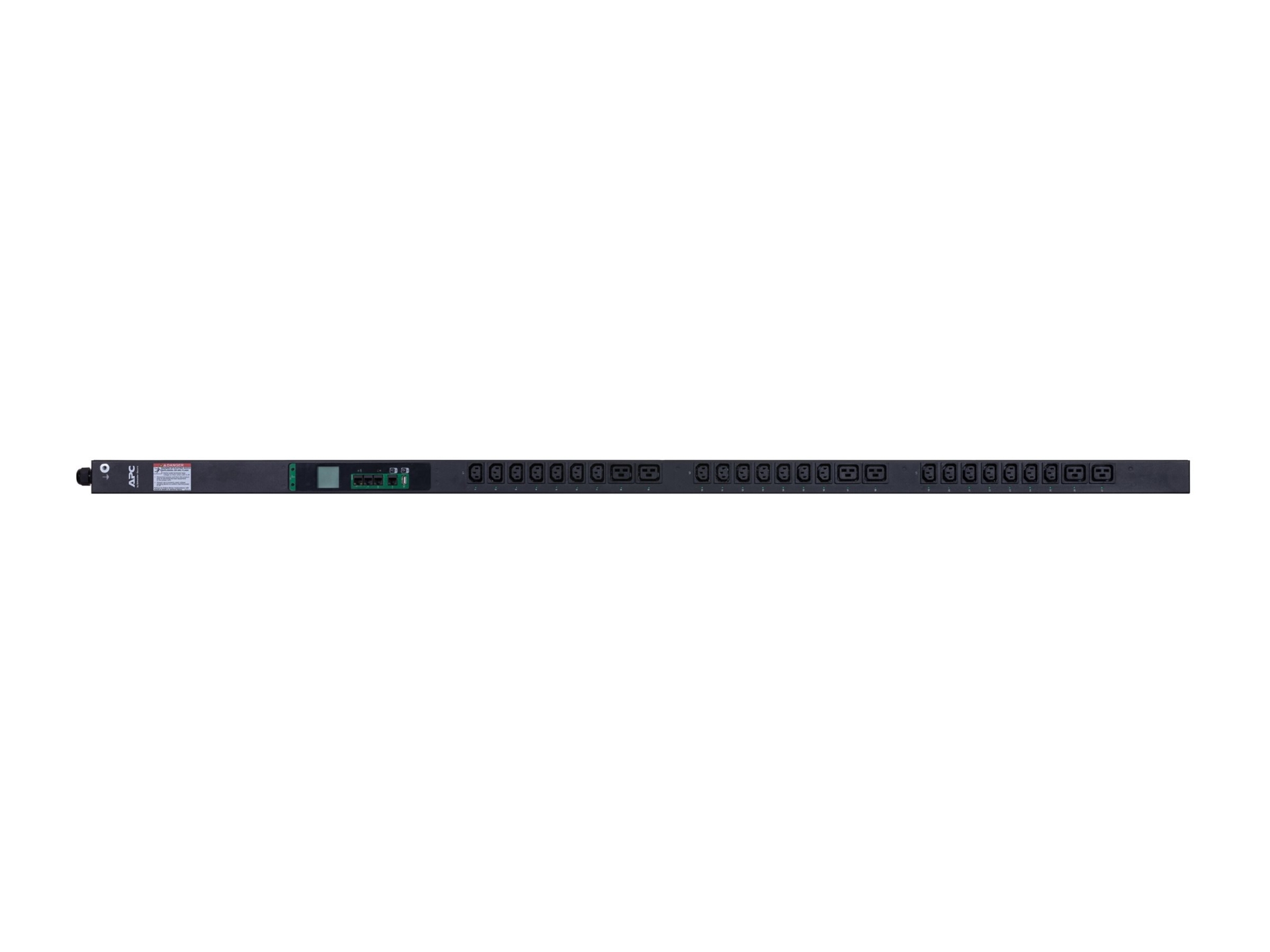

Easy Switched Rack Power Distribution Units (Rack PDU) provide on/off outlet switching, advanced power management, load monitoring and much more features than the average power strip.



Egenskaper

Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Local current monitoring display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.

Network management capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

Remote individual outlet control
Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment).

Outlet power sequencing
Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads. Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function properly.



Teknisk specifikation

Typ av enhet	Kraftdistributionsenhet - kan monteras i rack
Höjd (U-format)	0U
Sladdlängd	2 m
Färg	Svart

Inspänning	AC 200-240/346-415 V
Ingångskablage	3-fas
Erforderlig frekvens	50/60 Hz
Inmatningsanslutningar	Ström IEC 60309
Kontaktdetaljer för uteffekt	21 x power IEC 60320 C13 6 x ström IEC 60320 C19
Utspänning	AC 200-240 V
Max elektrisk ström	16 A
Effektkapacitet	11 kW

Gränssnitt för fjärradministration	Ethernet, RS-485, USB

Gränssnitt	1 x hantering (Ethernet) 1 x sensor 2 x hantering (RS-485)

Medföljande kablar	Strömkabel 2 m
Egenskaper	LCD-bildskärm, vertikal orientering, fast programvara kan uppdateras
Standarder som följs	TUV, RoHS, REACH, EAC

Min temperatur vid drift	-5 °C
Max temperatur vid drift	45 °C
Luftfuktighet vid drift	5 - 95%

Bredd	5.5 cm
Djup	6.2 cm
Höjd	179.4 cm
Vikt	6.2 kg

Emballagets bredd	16 cm
Emballagets djup	11 cm
Emballagets höjd	195 cm
Emballagets vikt	7.78 kg
