Produktbeskrivning

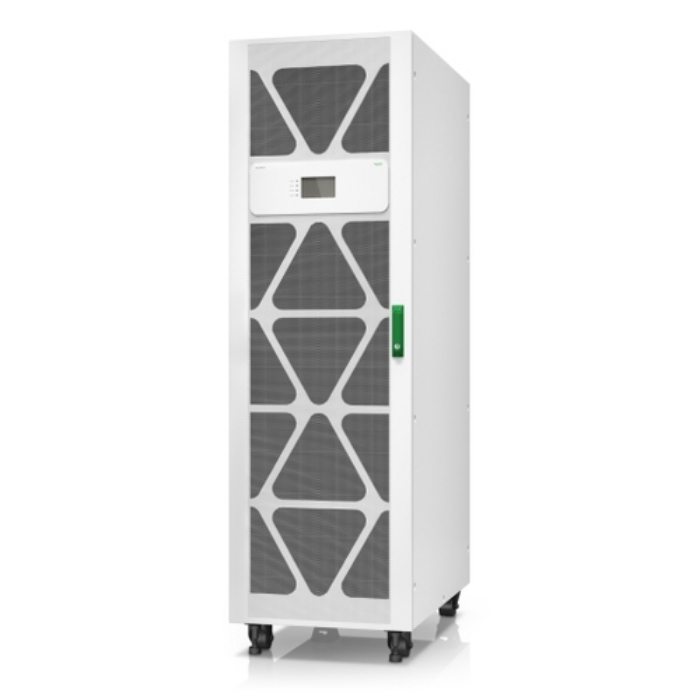

Easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 60 kVA 3-phase UPS. With advanced product features, robust electrical specifications and compact design, the Easy UPS 3M UPS makes business continuity easy for small and medium data centers and other business critical applications. Includes 5x8 start-up service and 3 internal 9 Ah modular battery strings, expandable to 6 for extended runtime.
Viktiga egenskaper
APC Easy UPS 3M 60kVA 400V 3:3 UPS, 3 internal 9Ah modular battery strings expandable to 6, Start-up 5x8. UPS topology: Double-conversion (Online), Output power capacity: 60 kVA, Output power: 60 W. Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 240 V. Form factor: Tower, Product colour: White, International Protection (IP) code: IP20. Compliance certificates: RoHS, Certification: CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE. Width: 600 mm, Depth: 1000 mm, Height: 1970 mm
Teknisk specifikation
Features
| UPS topology | Double-conversion (Online) |
|---|
| Output power capacity | 60 kVA |
|---|
| Output power | 60 W |
|---|
| Waveform | Sine |
|---|
| Input operation voltage (min) | 342 V |
|---|
| Input operation voltage (max) | 477 V |
|---|
| Input frequency | 40 - 70 Hz |
|---|
| Output operation voltage (min) | 380 V |
|---|
| Output operation voltage (max) | 415 V |
|---|
| Output frequency | 50/60 Hz |
|---|
| Power factor | 0.99 |
|---|
| Output voltage Total Harmonic Distortion (THD) | 3 % |
|---|
| Input current Total Harmonic Distortion (THD) | 3 % |
|---|
| Audible alarm(s) | Yes |
|---|
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
|---|
| Battery voltage | 240 V |
|---|
Design
| Form factor | Tower |
|---|
| Product colour | White |
|---|
| International Protection (IP) code | IP20 |
|---|
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -15 - 40 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95 % |
|---|
| Storage relative humidity (H-H) | 0 - 95 % |
|---|
Technical details
| Compliance certificates | RoHS |
|---|
Weight & dimensions
| Width | 600 mm |
|---|
| Depth | 1000 mm |
|---|
| Height | 1970 mm |
|---|
| Weight | 311000 g |
|---|
| Package width | 750 mm |
|---|
| Package depth | 1125 mm |
|---|
| Package height | 2102 mm |
|---|
| Package weight | 360000 g |
|---|
Logistics data
| Harmonized System (HS) code | 85078000 |
|---|
