Produktbeskrivning

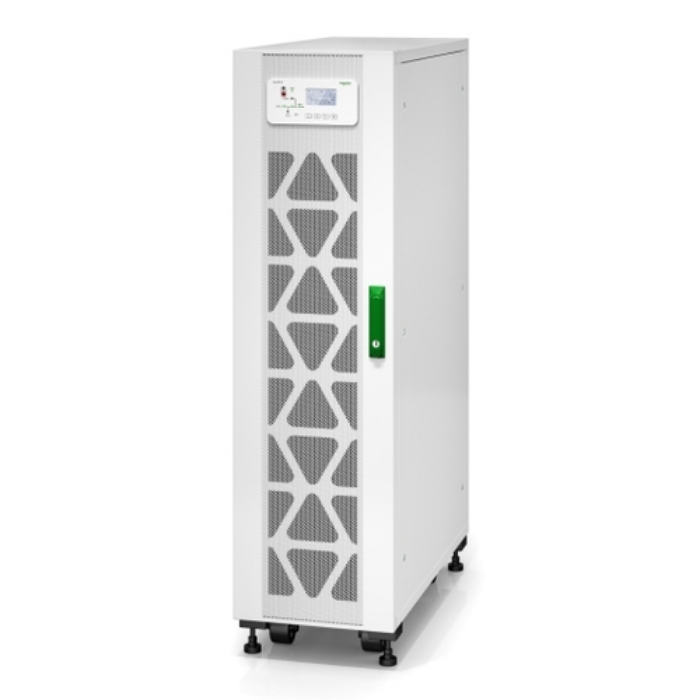

Easy-to-install, easy-to-operate, easy-to-maintain, and easy-to-service 15 kVA 3:1 UPS. With advanced product features, competitive specifications, and robust electrical design, the Easy UPS 3S UPS makes business continuity easy for small and medium data centers and electrical rooms. Includes dust filter and conformance-coated boards for harsh environments, and 2 internal 7 Ah modular battery strings, expandable to 3 strings for extended runtime.
Viktiga egenskaper
APC Easy UPS 3S 15 kVA 400V 3:1 UPS, 2 internal 7Ah modular battery strings, expandable to 3. UPS topology: Double-conversion (Online), Output power capacity: 15 kVA, Output power: 15000 W. Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 240 V. Form factor: Large tower, Product colour: White, International Protection (IP) code: IP20. Certification: CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE. Width: 380 mm, Depth: 907 mm, Height: 1400 mm
Teknisk specifikation
Features
| UPS topology | Double-conversion (Online) |
|---|
| Output power capacity | 15 kVA |
|---|
| Output power | 15000 W |
|---|
| Input operation voltage (min) | 304 V |
|---|
| Input operation voltage (max) | 477 V |
|---|
| Input frequency | 45/65 Hz |
|---|
| Output operation voltage (min) | 220 V |
|---|
| Output operation voltage (max) | 240 V |
|---|
| Output frequency | 50/60 Hz |
|---|
| Output voltage regulation | 3 % |
|---|
| Input power factor | 0.99 |
|---|
| Crest factor | 3:1 |
|---|
| ECO mode | Yes |
|---|
| Output voltage Total Harmonic Distortion (THD) | 5.5 % |
|---|
| Noise level | 60 dB |
|---|
| Power protection features | Overload |
|---|
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
|---|
| Battery voltage | 240 V |
|---|
| Number of batteries supported | 2 |
|---|
Design
| Form factor | Large tower |
|---|
| Product colour | White |
|---|
| International Protection (IP) code | IP20 |
|---|
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -15 - 40 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95 % |
|---|
| Storage relative humidity (H-H) | 0 - 95 % |
|---|
| Operating altitude | 0 - 984 m |
|---|
| Non-operating altitude | 0 - 15000 m |
|---|
Weight & dimensions
| Width | 380 mm |
|---|
| Depth | 907 mm |
|---|
| Height | 1400 mm |
|---|
| Weight | 211000 g |
|---|
| Package width | 563 mm |
|---|
| Package depth | 1014 mm |
|---|
| Package height | 1640 mm |
|---|
| Package weight | 229000 g |
|---|
Logistics data
| Harmonized System (HS) code | 85078000 |
|---|
