Produktbeskrivning

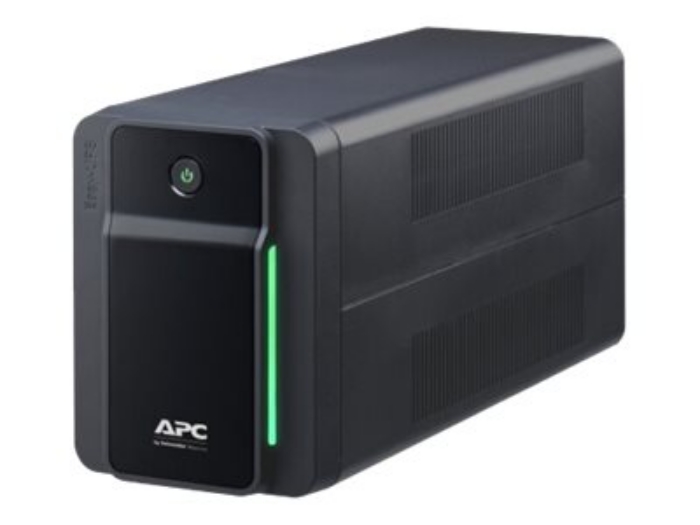

The APC by Schneider Electric Easy UPS offers power and surge protection for wireless networks, computers, gaming consoles, and other electronics in your home or business. This UPS supplies battery backup during outages and unstable voltage fluctuations, as well as provides protection from damaging surges and spikes. It helps protect your data and keep you connected.



Egenskaper

Automatic Voltage Regulation (AVR)
Automatic Voltage Regulation boosts/trims the AC voltage when it drops/exceeds levels. This allows the equipment plugged into the unit to operate during low/high voltage conditions, conserving the battery power in the event of a power cut. The Easy UPS will switch to battery power if the input voltage level becomes too low/high for the Automatic Voltage Regulation to compensate, or if the AC power is distorted.

Quick mute
The Easy UPS is able to temporarily mute user-correctable audible alarms such as On battery. During such audible alarms, a short press (less than 2 seconds) of the power button will temporarily mute the audible alarm until the condition has been reset. A short double beep will confirm that Quick mute has been activated.



Teknisk specifikation

Typ av enhet	UPS - extern

UPS-teknik	Interaktiv
Inspänning	AC 220-240 V
Inspänningens område	AC 170 - 280 V
Tillhandahållen frekvens	50/60 Hz
Erforderlig frekvens	50/60 Hz
Inmatningsanslutningar	1
Kontaktdetaljer för uteffekt	4 x power IEC 60320 C13
Utspänning	AC 230 V ± 10% - 50/60 Hz
Effektkapacitet	360 Watt / 700 VA
Utvågform	Stegapproximation till en sinusvåg
Energivärdering	273 joule
Kretsskydd	Säkring

Antal	1
Teknik	Bly-syra
Tillförd spänning	12 V
Kapacitet	7 Ah
Laddningstid	8 timmar
Transfertid	6 ms
Egenskaper	Underhållsfri

Medföljande kablar	Strömkabel - extern - 1.2 m
Egenskaper	Hörbart larm, Automatisk spänningsreglering (AVR)
Standarder som följs	IP20

Service och support	Begränsad garanti - 2 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	0 - 95%

Bredd	9.8 cm
Djup	31 cm
Höjd	13.8 cm
Vikt	4.2 kg

Emballagets bredd	14.2 cm
Emballagets djup	34.6 cm
Emballagets höjd	22.2 cm
Emballagets vikt	4.5 kg
