Produktbeskrivning

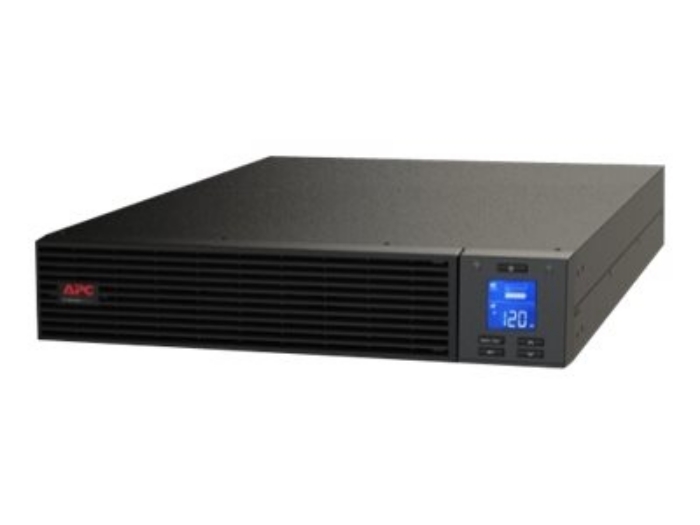

For IT professionals in small to medium businesses, EasyUPS Online provides basic power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments. APC Easy UPS Online is a versatile, high quality, cost competitive UPS developed to handle a wide voltage range, and inconsistent power conditions; delivering the quality millions of IT professionals trust around the world. That's Certainty in a Connected World.



Egenskaper

Scalable runtime
The capability to add external battery packs to provide extended runtime, fulfilling the needs of long run time applications.

ECO mode/green mode
This is an energy saving mode and the input voltage regulation range can be set/ modified through the LCD display.

Generator compatible
Ensures clean, uninterrupted power to the loads in the event of an extended power outage.

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent precision temperature compensated charging.

OVCD (Overvoltage Cutoff Device) protection
Under special application with high voltage condition, OVCD protection will prevent the damage of UPS components and extend the life of the UPS.

Input power factor connection
Minimizes installation costs by enabling the use of smaller generators and cabling.

Excellent power quality and performance
True double conversion - provides tight voltage and frequency regulation and zero transfer time for reactive loads (machinery, lab equipment, etc.).

Built-in automatic bypass
Ensures seamless power to the load even in the event of catastrophic UPS failure.

Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.



Teknisk specifikation

Typ av enhet	UPS - kan monteras i rack
Höjd (U-format)	2U

UPS-teknik	Online
Inspänning	AC 230 V
Inspänningens område	AC 160 - 280 V
Erforderlig frekvens	40 - 70 Hz
Inmatningsanslutningar	1
Utspänning	AC 230 V ± 1%
Effektkapacitet	2400 Watt / 3000 VA
Utvågform	Sinusvåg
Kretsskydd	Strömbrytare
Effektivitet	88%

Antal	1
Tillförd spänning	12 V
Kapacitet	9 Ah
Egenskaper	Underhållsfri

Gränssnitt för fjärradministration	RS-232, USB

Gränssnitt	1 x hantering (USB) - 4-stifts USB typ B 1 x hantering (RS-232) - 9 pin D-Sub (DB-9)
Expansionskortplatser	1 (totalt)/ 1 (ledig) x Intelligent Slot

Medföljande kablar	USB-kabel - extern Seriell kabel - extern Strömkabel - extern
Rackmonteringssats	Inkluderat
Egenskaper	LCD-bildskärm, intern förbikoppling
Standarder som följs	IP20

Service och support	Begränsad garanti - 2 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	0 - 95 % (icke-kondenserande)

Bredd	43.8 cm
Djup	63.2 cm
Höjd	8.6 cm
Vikt	27.6 kg

Emballagets bredd	57 cm
Emballagets djup	79.4 cm
Emballagets höjd	22.8 cm
Emballagets vikt	29 kg
