Produktbeskrivning

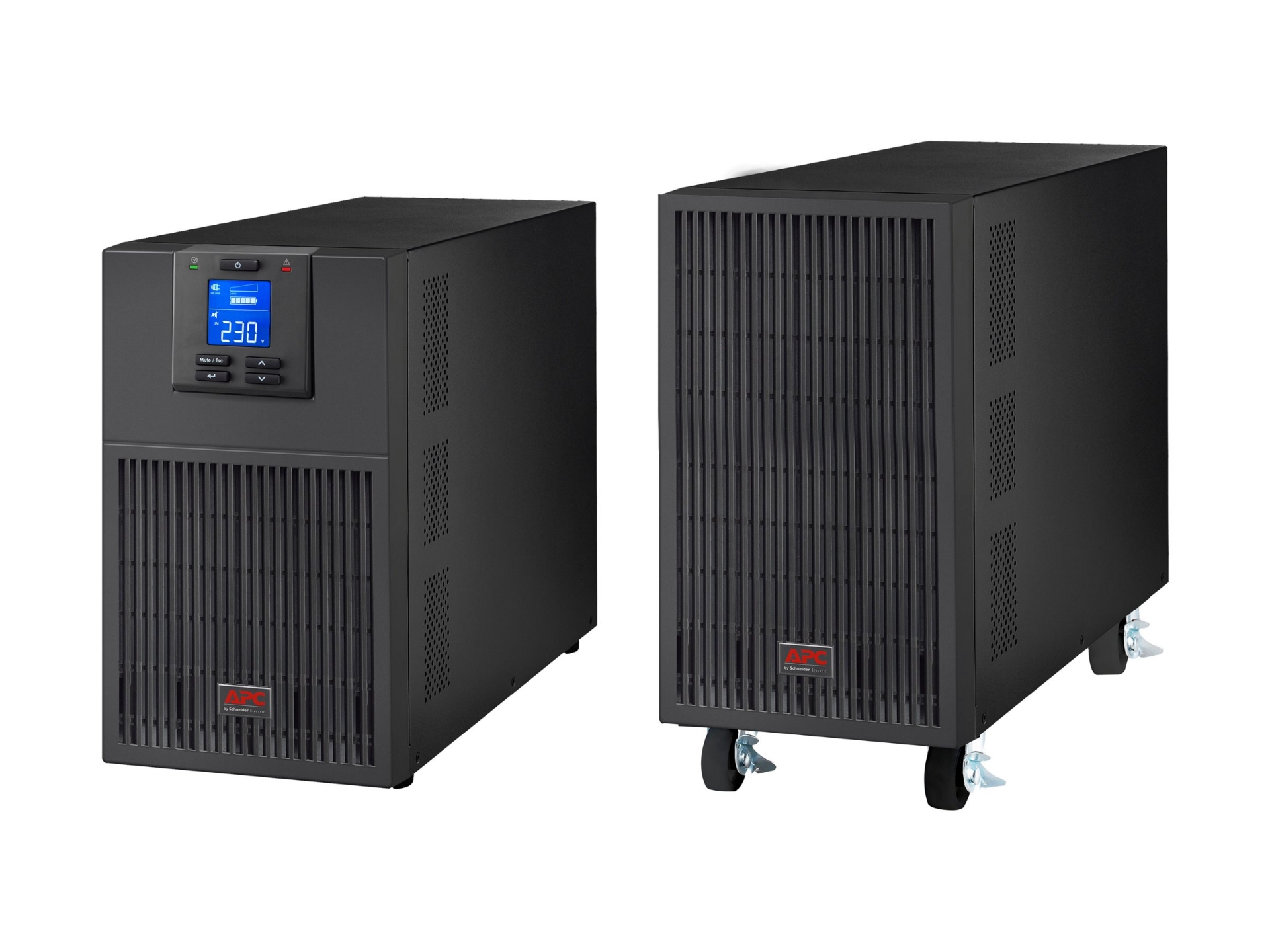

For small to medium businesses, APC by Schneider Electric delivers a special category of UPSs designed for essential power protection needs even in the most unstable power conditions. APC Easy UPS 1 Ph Online is a versatile, high-quality UPS developed to handle a wide voltage range and inconsistent power conditions.



Egenskaper

Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.

Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.

ECO mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.

Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precise charging.

LCD display
Alpha-Numeric Display which displays system parameters and alarms.



Teknisk specifikation

Typ av enhet	UPS - extern

UPS-teknik	Online
Inspänning	AC 220-240 V
Inspänningens område	Växelström 110 - 300 V
Tillhandahållen frekvens	50/60 Hz ± 4Hz
Ingångskablage	1-fas
Erforderlig frekvens	50/60 Hz
Inmatningsanslutningar	1 x terminalblock
Kontaktdetaljer för uteffekt	1 x terminalblock
Utspänning	AC 220/230/240 V ± 1% - 50/60 Hz
Effektkapacitet	6000 Watt / 6000 VA
Utvågform	Sinusvåg
Energivärdering	600 joule
Kretsskydd	Strömbrytare
Effektivitet	94% AC mode
PF (Power Factor)	0.99

Antal	1
Teknik	Bly-syra
Egenskaper	Underhållsfri, förseglad

Gränssnitt för fjärradministration	RS-232, USB

Gränssnitt	1 x hantering (USB) 1 x hantering (RS-232)

Inkluderade tillbehör	Externt batteripaket
Egenskaper	LCD-bildskärm, intern förbikoppling, överspänningsskydd, fast programvara kan uppdateras, Eco-Mode, generatorkompatibel

Medföljande programvara	APC Easy Ups Online SNMP Shutdown Wizard

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	0 - 95 % (icke-kondenserande)
Ljudnivå	55 dB

Bredd	19 cm
Djup	37.4 cm
Höjd	33.6 cm
Vikt	13 kg
