Produktbeskrivning

Easy Switched Rack Power Distribution Units (Rack PDU) provide on/off outlet switching, advanced power management, load monitoring and much more features than the average power strip.



Viktiga egenskaper

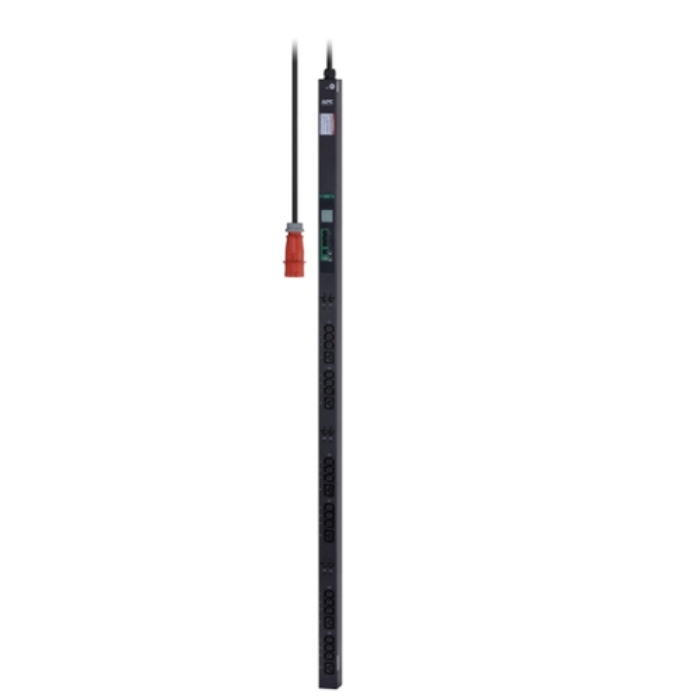

APC EPDU1232S. PDU types: Switched, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Cable length: 2 m. Nominal input voltage: 400 V, Maximum current: 32 A, AC input frequency: 50 - 60 Hz. Compliance certificates: CE, Certification: EAC, RCM, TÜV



Teknisk specifikation

PDU types	Switched
Rack capacity	0U
Mounting	Vertical
Product colour	Black

AC outlets quantity	24 AC outlet(s)
Power plug	IEC 60309
AC outlet types	C13 coupler,C19 coupler

Cable length	2 m
Certification	EAC, RCM, TÜV

Nominal input voltage	400 V
AC input frequency	50 - 60 Hz
Maximum current	32 A
Output voltage	230 V
Maximum power	22000 W

Width	55 mm
Depth	62 mm
Height	1794 mm
Weight	8170 g

Package weight	9450 g
Package width	160 mm
Package depth	110 mm
Package height	1950 mm

Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 95 %
Operating altitude	0 - 3000 m

Compliance certificates	CE
Sustainability compliance	Yes
