Produktbeskrivning

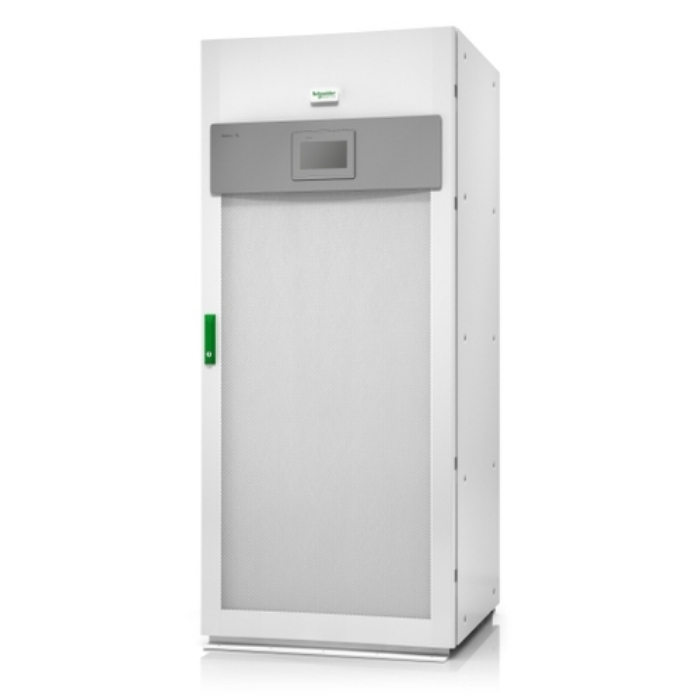

This Galaxy VL UPS GVL200K500DS is highly efficient, modular, high-density 200kW (400/480V) 3-phase UPS that is scalable up to 500kW. It delivers top performance for medium, large, and edge data centers, as well as critical infrastructure in commercial and industrial applications. It includes a 5x8 start-up service.
Viktiga egenskaper
APC Galaxy VL UPS 200 scalable to 500kW, 400/480V, Start-up 5x8. Output power capacity: 500 kVA, Output power: 500000 W, Input operation voltage (min): 380 V. Battery voltage: 384 V. Form factor: Tower, Product colour: White, Cooling type: Active. Compliance certificates: Federal Communications Commission (FCC), RoHS, Certification: IEC 60721-4-2 level 2M2, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, UL 1778 5th edition, VFI-SS-111. Sustainability certificates: ENERGY STAR
Teknisk specifikation
Features
| Output power capacity | 500 kVA |
|---|
| Output power | 500000 W |
|---|
| Input operation voltage (min) | 380 V |
|---|
| Input operation voltage (max) | 480 V |
|---|
| Input frequency | 40/70 Hz |
|---|
| Output operation voltage (min) | 380 V |
|---|
| Output operation voltage (max) | 480 V |
|---|
| Number of input phases | 3 |
|---|
| Number of output phases | 3 |
|---|
| Efficiency | 97.2 % |
|---|
| Crest factor | 2.5:1 |
|---|
| Output voltage Total Harmonic Distortion (THD) | 1 % |
|---|
| Input current Total Harmonic Distortion (THD) | 5 % |
|---|
| Power protection features | Overload,Short circuit |
|---|
| Power source type | AC |
|---|
Battery
| Battery voltage | 384 V |
|---|
Design
| Form factor | Tower |
|---|
| Product colour | White |
|---|
| Cooling type | Active |
|---|
| Built-in fan | Yes |
|---|
| Display type | LCD |
|---|
| International Protection (IP) code | IP20 |
|---|
| Certification | IEC 60721-4-2 level 2M2, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, UL 1778 5th edition, VFI-SS-111 |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -25 - 55 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95 % |
|---|
| Storage relative humidity (H-H) | 10 - 80 % |
|---|
| Operating altitude | 0 - 3000 m |
|---|
Technical details
| Compliance certificates | Federal Communications Commission (FCC),RoHS |
|---|
| Sustainability certificates | ENERGY STAR |
|---|
| Sustainability compliance | Yes |
|---|
Weight & dimensions
| Width | 850 mm |
|---|
| Depth | 925 mm |
|---|
| Height | 1970 mm |
|---|
| Weight | 550000 g |
|---|
| Package width | 1100 mm |
|---|
| Package depth | 950 mm |
|---|
| Package height | 2145 mm |
|---|
| Package weight | 620000 g |
|---|
